Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning PCLCL 1212X-09S-JHP-MC

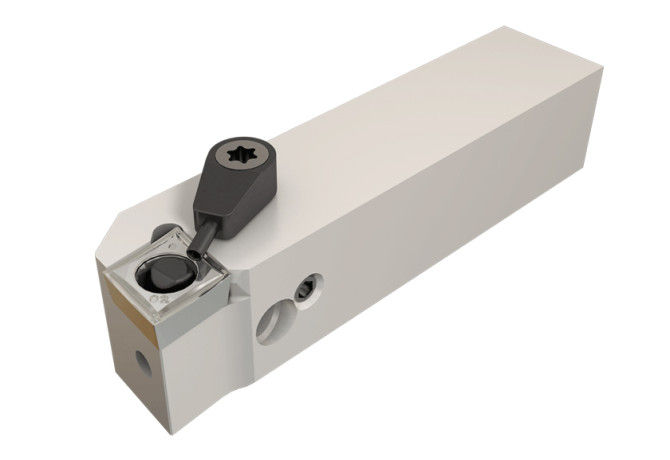

PCLCL 1212X-09S-JHP-MC

Артикул: 3308027

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

8 - Axial concentrical or peripheral/decentralized adjustable

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

VKT12120115

EPSR Insert included angle

80 Degree

FamilyProducts

Tools with Channels for High-Pressure Coolant Carrying 80° Positive Rhombic Inserts for Swiss Automatic Machines

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

L - Left

HF Functional height

12 mm

ID Technical product number

3308027

Interface codes

J6 / J61

ISO

VKT01A1212$$$$

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

LF Functional length

67 mm

LH Head length

23 mm

LOC-03 B Shank width

12 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

1212

LOC-03 H Shank height

12 mm

LOC-03 ISO

VKT01A1212$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT12120115

MIID Master insert identification

CCMT 09T302-SM

Name Identifying order number

PCLCL 1212X-09S-JHP-MC

OAL Overall length

67 mm

WF Functional width

12.2 mm

Working process

No working processes available

WT Weight of item

0.06 kg
