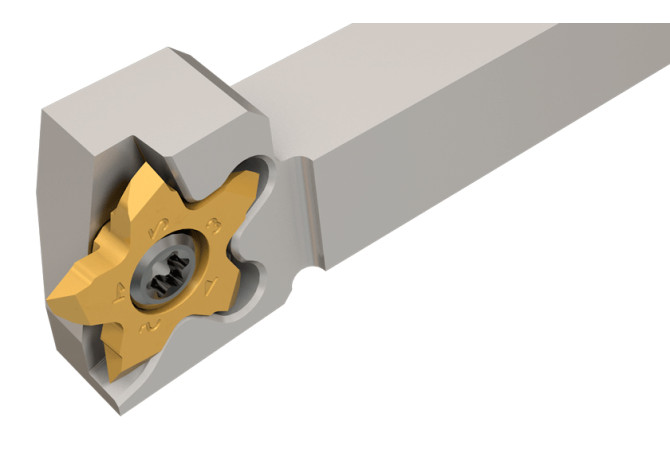

PCHRS 25-17

Артикул: 3355215

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-110462118293331

FamilyProducts

Tools Carrying Inserts with 5 Cutting Edges for Grooving, Parting and Recessing Next to High Shoulders

HAND Cutting direction

R - Right

HF Functional height

25 mm

ID Technical product number

3355215

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$110462118293331

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LH Head length

17 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CZCMS Connection size code

2525

LOC-03 H Shank height

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MIID Master insert identification

PENTA 17-100NP08RS

Name Identifying order number

PCHRS 25-17

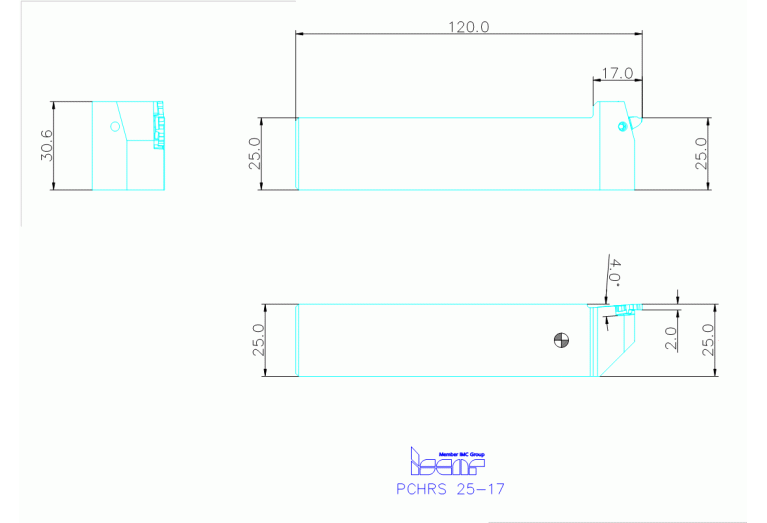

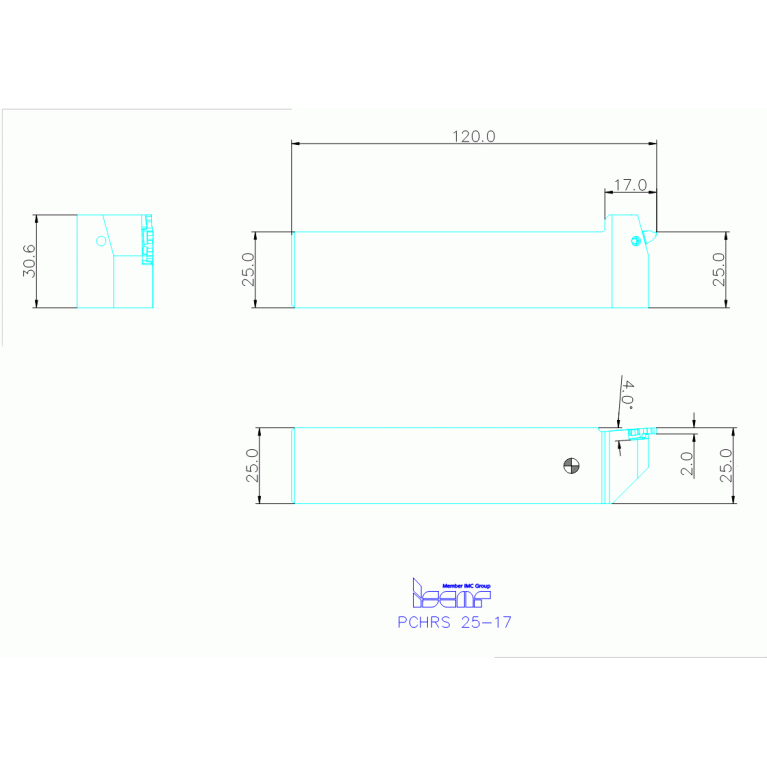

OAL Overall length

120 mm

WF Functional width

25 mm

Working process

No working processes available

WT Weight of item

0.56 kg
