Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning PCHRS 12-17-JHP

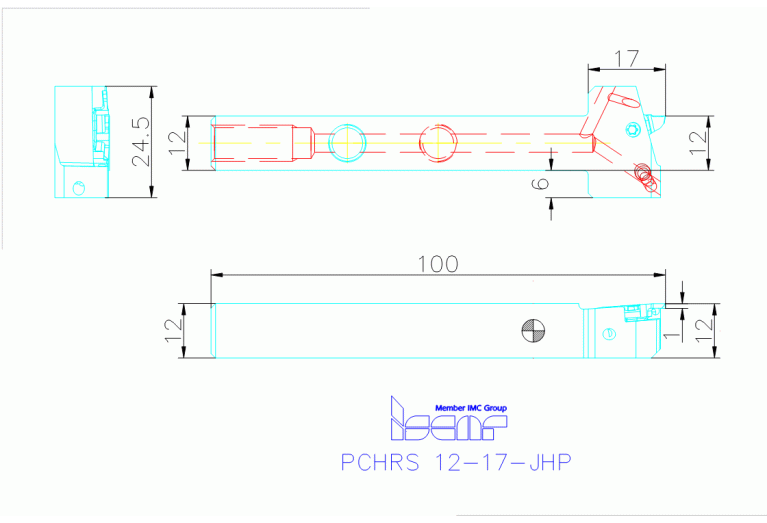

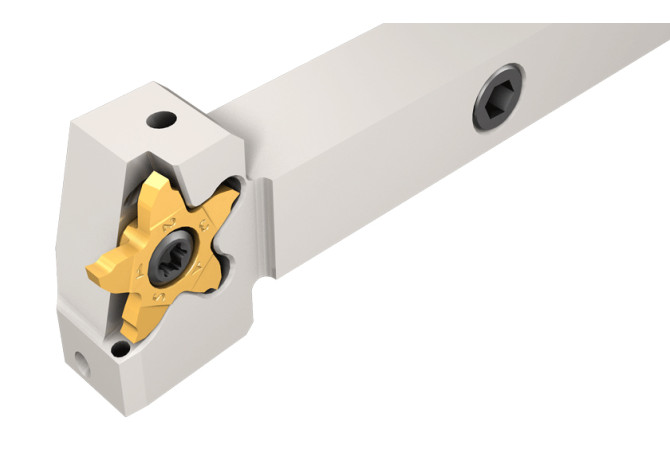

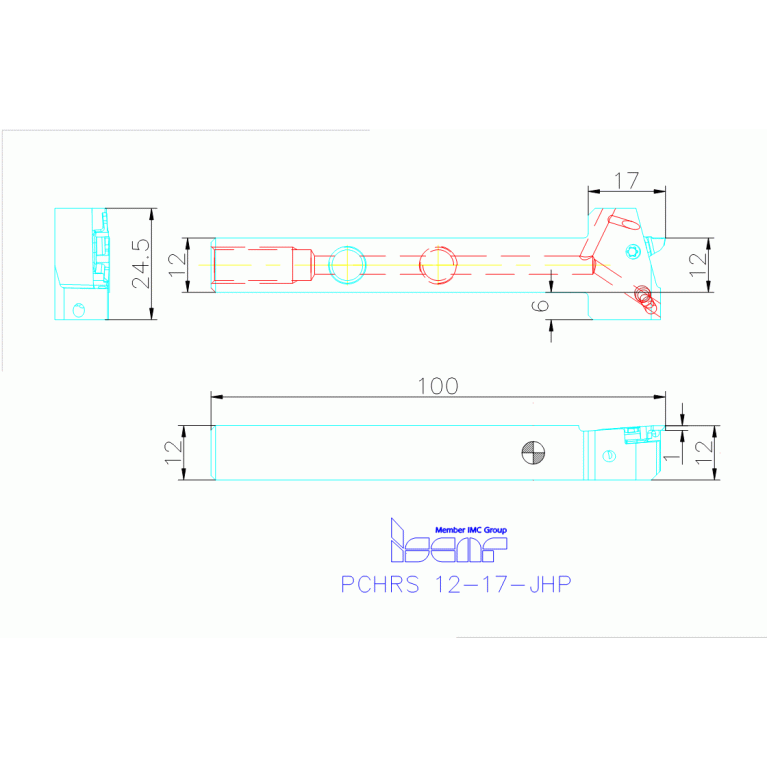

PCHRS 12-17-JHP

Артикул: 3344788

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-112144413140608

FamilyProducts

Tools Carrying Inserts with 5 Cutting Edges for Shallow Profiling Next to High Shoulders

HAND Cutting direction

R - Right

HF Functional height

12 mm

ID Technical product number

3344788

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$112144413140608

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LH Head length

17 mm

LOC-03 B Shank width

12 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CZCMS Connection size code

1212

LOC-03 H Shank height

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

PCHRS 12-17-JHP

OAL Overall length

100 mm

WF Functional width

12 mm

Working process

No working processes available

WT Weight of item

0.15 kg
