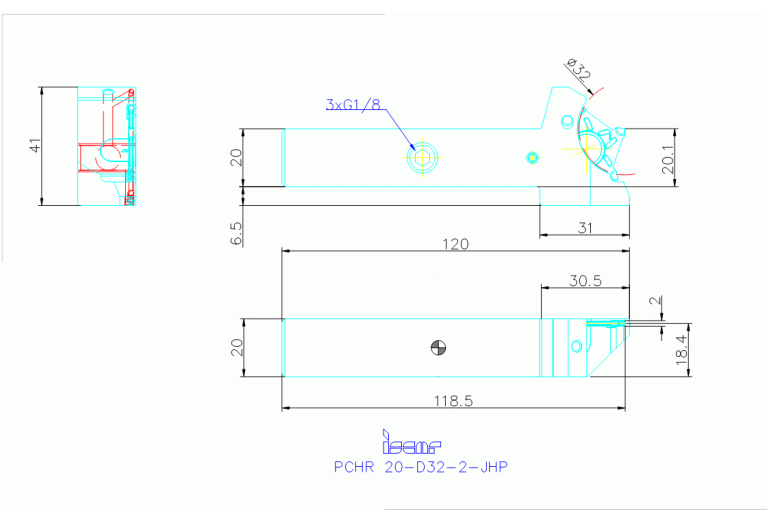

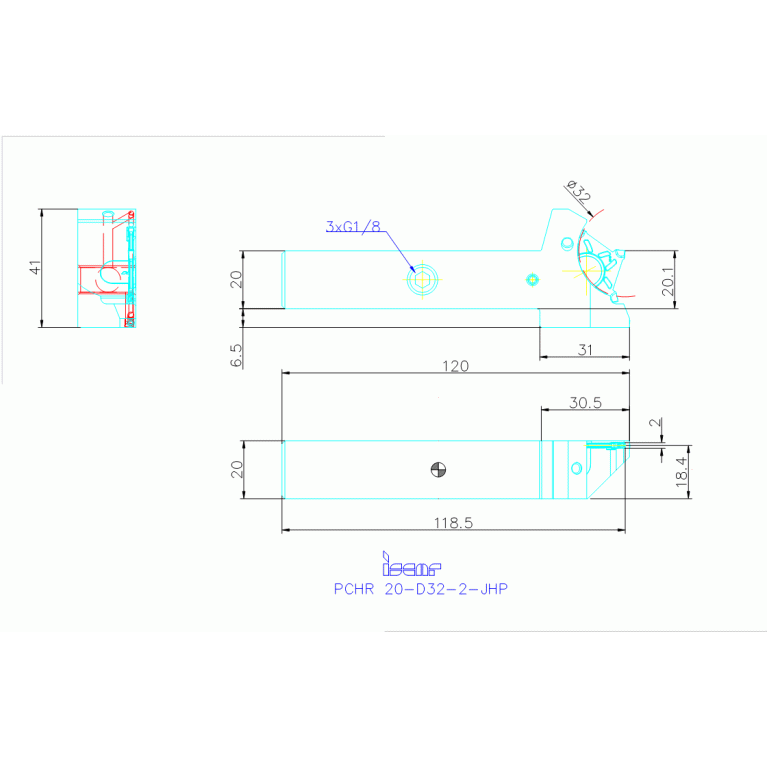

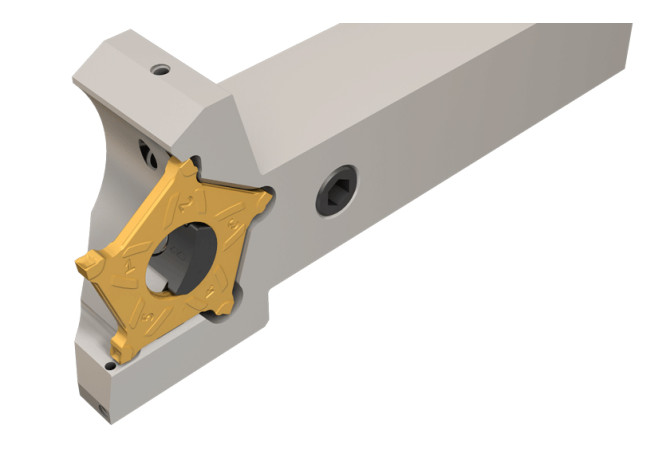

PCHR 20-D32-2-JHP

Артикул: 3304731

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-165548862108525

FamilyProducts

Grooving and Parting Tools with Channels for High-Pressure Coolant Carrying Inserts with 5 Cutting Edges

HAND Cutting direction

R - Right

HF Functional height

20.1 mm

ID Technical product number

3304731

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$165548862108525

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LH Head length

30.5 mm

LOC-03 B Shank width

20 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CZCMS Connection size code

2020

LOC-03 H Shank height

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MIID Master insert identification

PENTA D32N200C020

Name Identifying order number

PCHR 20-D32-2-JHP

OAL Overall length

120 mm

WF Functional width

18.4 mm

Working process

No working processes available

WT Weight of item

0.35 kg
