Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning PCHR 16-D40-3-IQ

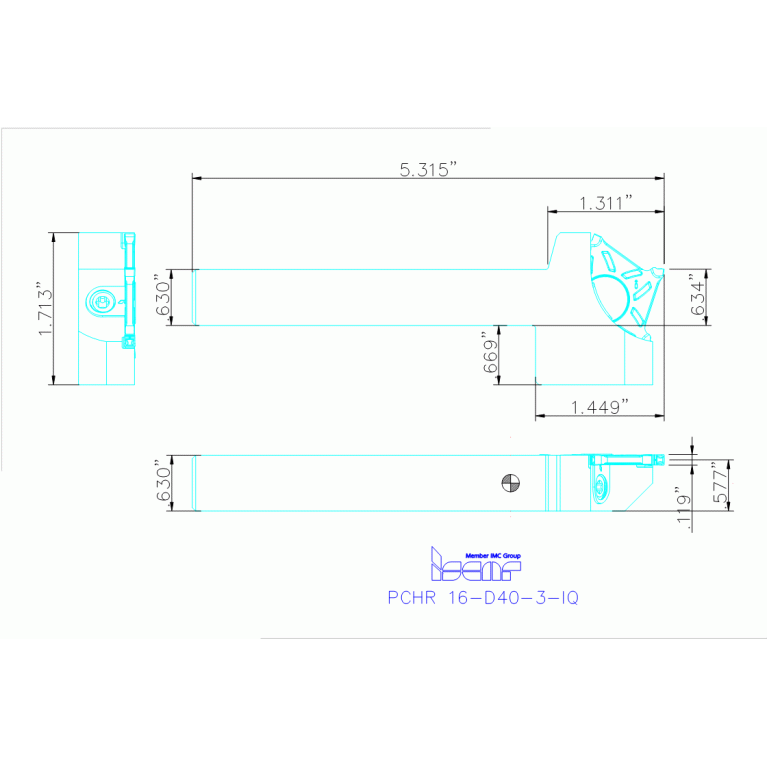

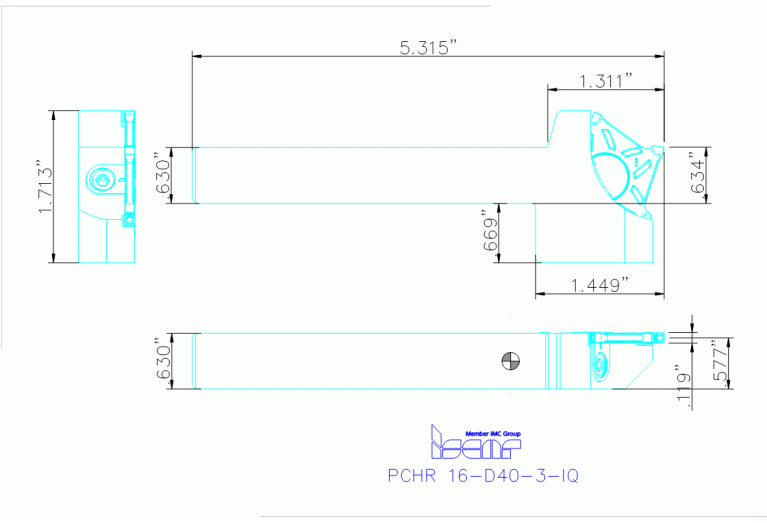

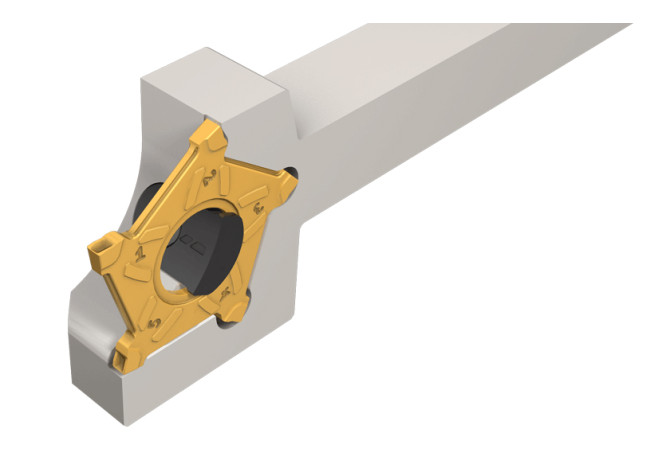

PCHR 16-D40-3-IQ

Артикул: 2302572

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-139710972017792

FamilyProducts

Grooving and Parting Tools Carrying Inserts with 5 Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

2302572

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$139710972017792

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LH Head length

33.3 mm

LOC-03 B Shank width

16 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CZCMS Connection size code

1616

LOC-03 H Shank height

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MIID Master insert identification

PENTA D40N300C020

Name Identifying order number

PCHR 16-D40-3-IQ

OAL Overall length

135 mm

WF Functional width

14.7 mm

Working process

No working processes available

WT Weight of item

0.29 kg
