Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning PCHR 12-D22-3-IQ

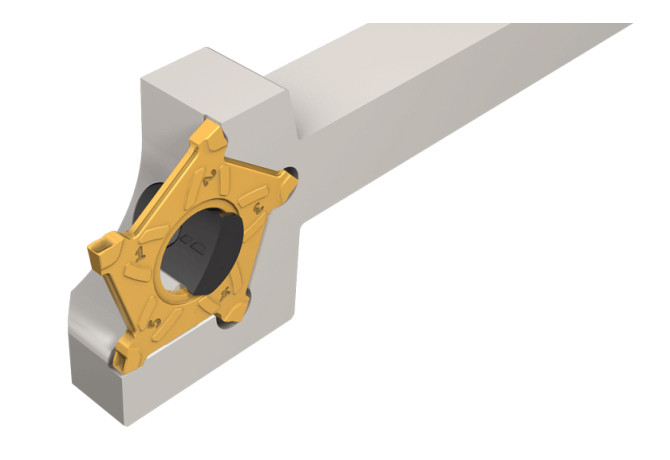

PCHR 12-D22-3-IQ

Артикул: 2302666

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-53022580428955

FamilyProducts

Grooving and Parting Tools Carrying Inserts with 5 Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

2302666

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$53022580428955

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LH Head length

19.7 mm

LOC-03 B Shank width

12 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CZCMS Connection size code

1212

LOC-03 H Shank height

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MIID Master insert identification

PENTA D22N300J020

Name Identifying order number

PCHR 12-D22-3-IQ

OAL Overall length

120 mm

WF Functional width

10.7 mm

Working process

No working processes available

WT Weight of item

0.29 kg
