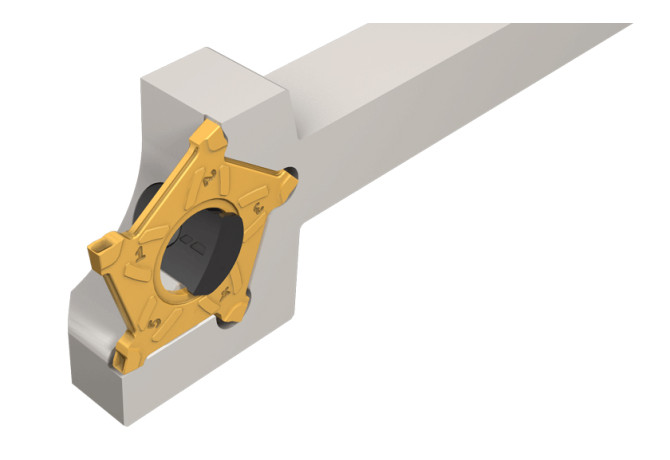

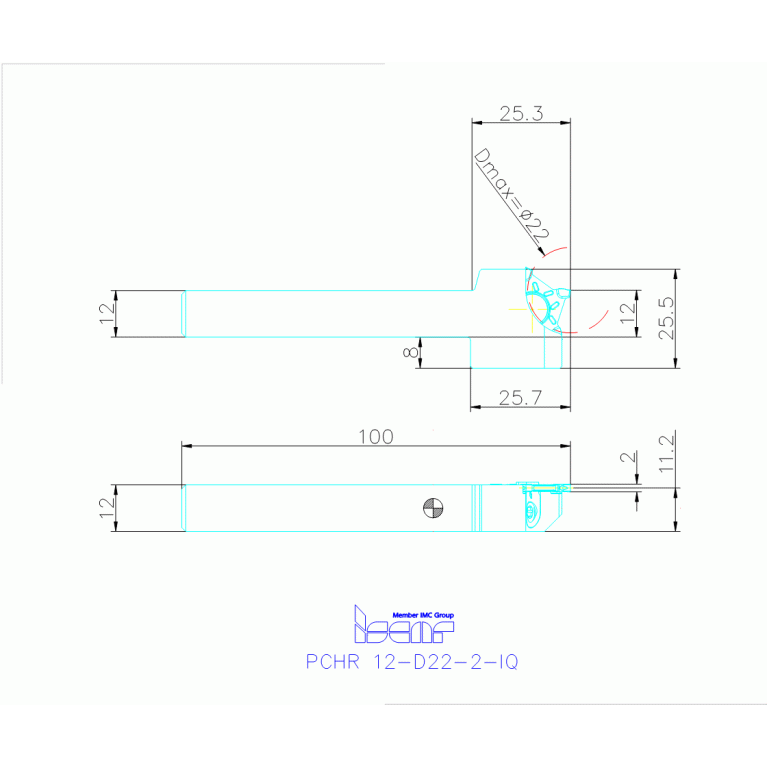

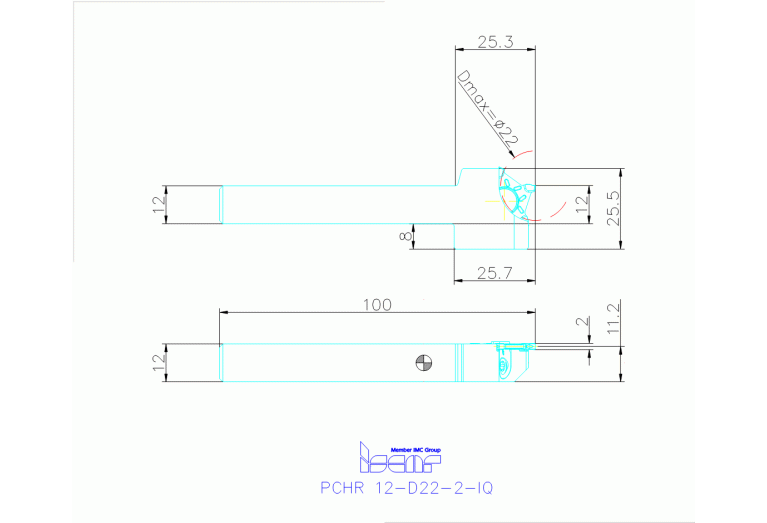

PCHR 12-D22-2-IQ

Артикул: 2302656

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-129114917917032

FamilyProducts

Grooving and Parting Tools Carrying Inserts with 5 Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

2302656

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$129114917917032

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LH Head length

26.9 mm

LOC-03 B Shank width

12 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CZCMS Connection size code

1212

LOC-03 H Shank height

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MIID Master insert identification

PENTA D22N200J020

Name Identifying order number

PCHR 12-D22-2-IQ

OAL Overall length

100 mm

WF Functional width

11.4 mm

Working process

No working processes available
