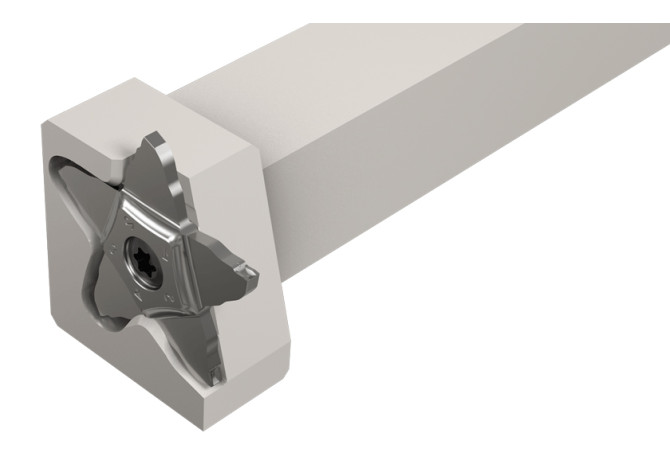

Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning PCHPL 16-24

PCHPL 16-24

Артикул: 2302430

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-377271284033237

FamilyProducts

Perpendicular Holders Carrying Inserts with 5 Cutting Edges for Facing, Grooving, Parting and Recessing

HAND Cutting direction

L - Left

HF Functional height

16 mm

ID Technical product number

2302430

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$377271284033237

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LF Functional length

23.5 mm

LH Head length

11.5 mm

LOC-03 B Shank width

16 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CZCMS Connection size code

1616

LOC-03 H Shank height

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MIID Master insert identification

PENTA 24N050J000

Name Identifying order number

PCHPL 16-24

OAL Overall length

120 mm

WF Functional width

1.5 mm

Working process

No working processes available

WT Weight of item

0.24 kg
