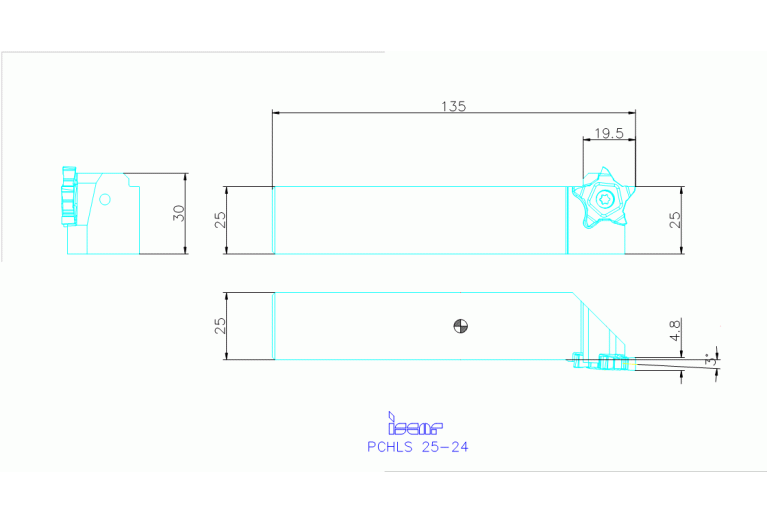

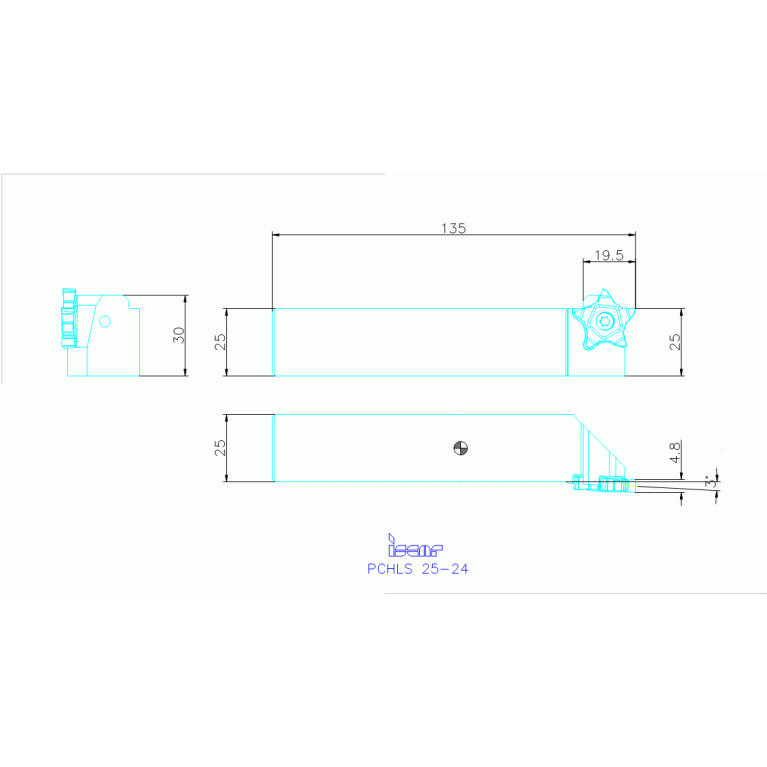

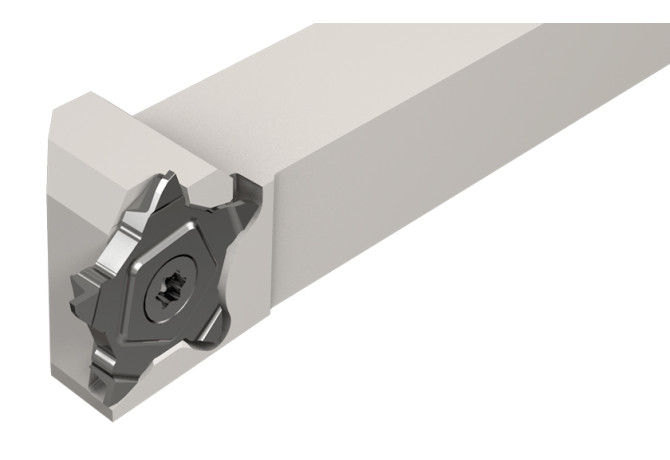

PCHLS 25-24

Артикул: 2396165

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-32457922658325

FamilyProducts

Holders Carrying Inserts with 5 Cutting Edges for Grooving, Parting and Recessing Next to High Shoulders

HAND Cutting direction

L - Left

HF Functional height

25 mm

ID Technical product number

2396165

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$32457922658325

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LH Head length

19.5 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CZCMS Connection size code

2525

LOC-03 H Shank height

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MIID Master insert identification

PENTA 24N080NF010LS

Name Identifying order number

PCHLS 25-24

OAL Overall length

135 mm

Working process

No working processes available

WT Weight of item

0.61 kg
