Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning PCHLS 25-17-JHP

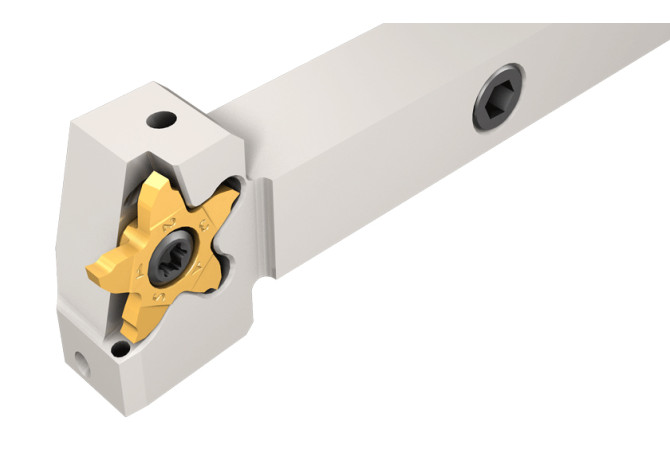

PCHLS 25-17-JHP

Артикул: 3382587

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-112145769992328

FamilyProducts

Tools Carrying Inserts with 5 Cutting Edges for Shallow Profiling Next to High Shoulders

HAND Cutting direction

L - Left

HF Functional height

25 mm

ID Technical product number

3382587

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$112145769992328

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LH Head length

17 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CZCMS Connection size code

2525

LOC-03 H Shank height

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

PCHLS 25-17-JHP

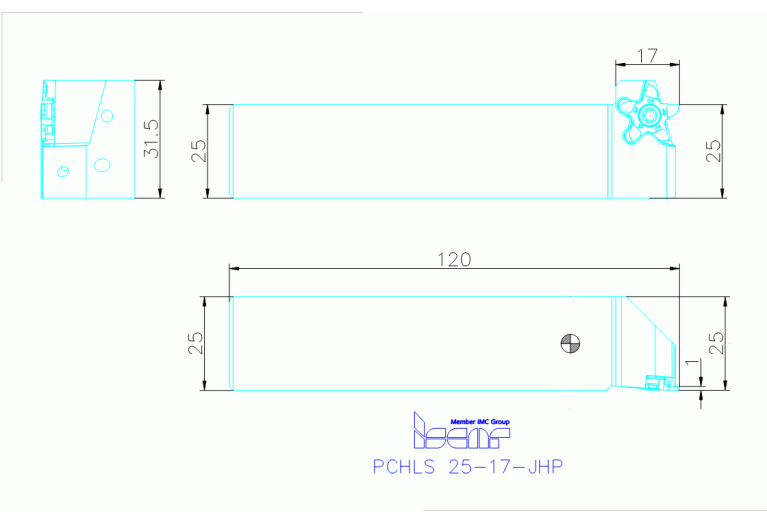

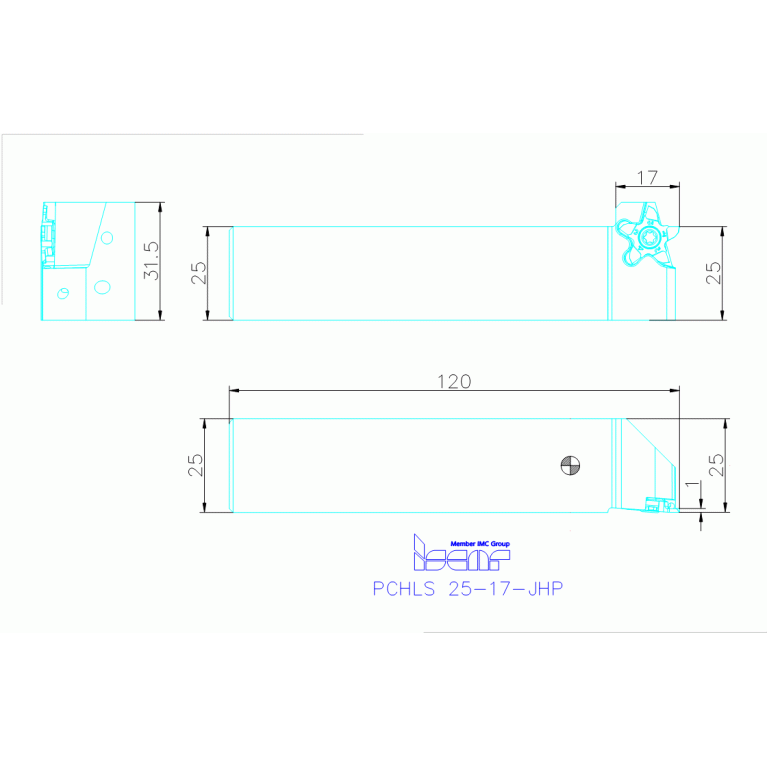

OAL Overall length

120 mm

WF Functional width

25 mm

Working process

No working processes available

WT Weight of item

0.15 kg
