Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning PCADR 34-JHP

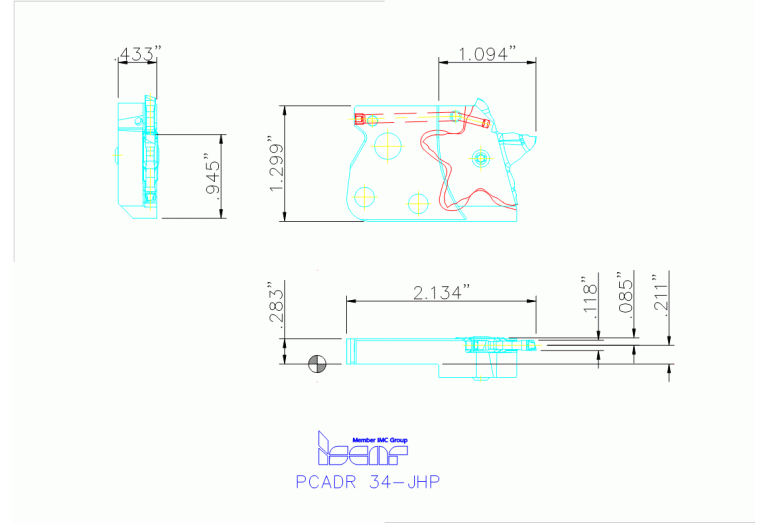

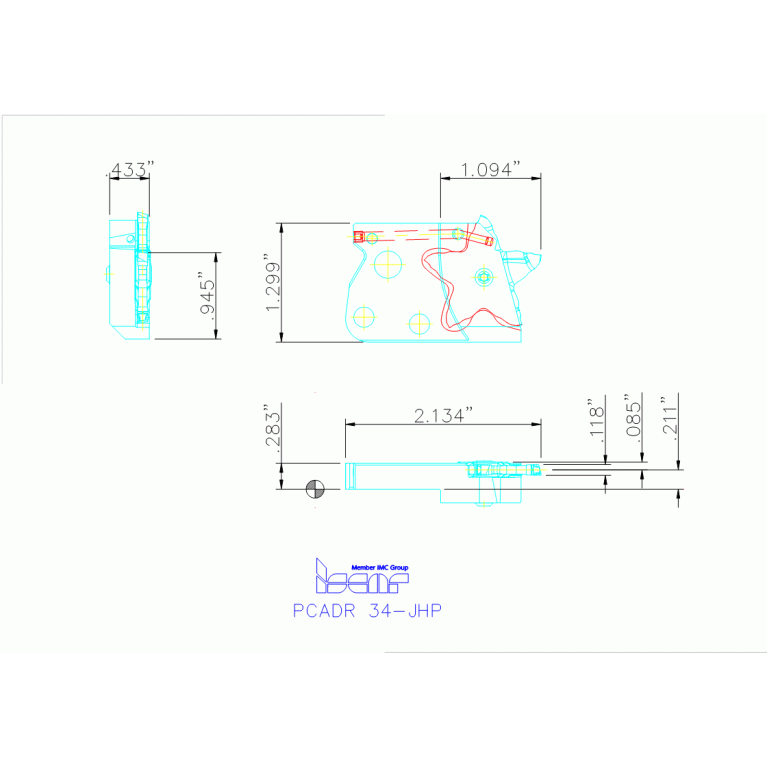

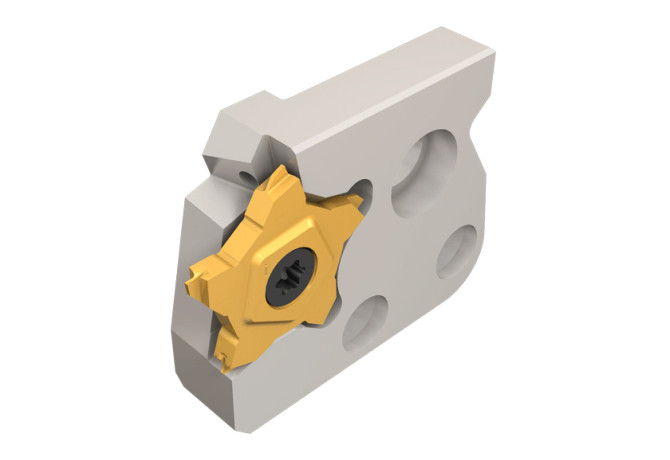

PCADR 34-JHP

Артикул: 3320279

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-275698956050859

FamilyProducts

Adapters with High-Pressure Coolant Holes for PENTACUT Grooving Inserts

HAND Cutting direction

R - Right

HF Functional height

24 mm

ID Technical product number

3320279

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$275698956050859

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LOC-03 CCFMS Connection code form

LOC-03 CCTMS Connection code type

IMC Iscar Metal cutting connection

LOC-03 H Shank height

33 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MIID Master insert identification

PENTA 34N150PB015

Name Identifying order number

PCADR 34-JHP

OAL Overall length

54.2 mm

WF Functional width

5.35 mm

Working process

No working processes available

WT Weight of item

0.07 kg
