Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning PCADL 24-JHP

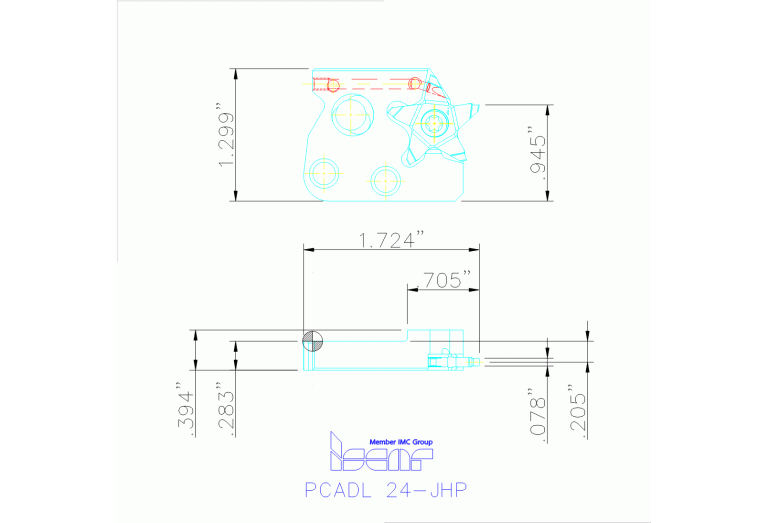

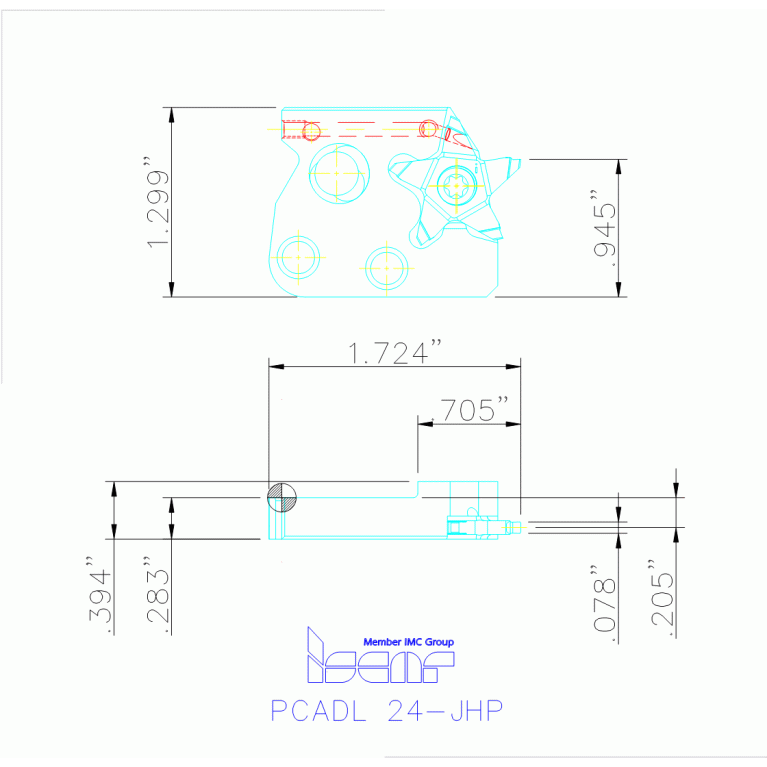

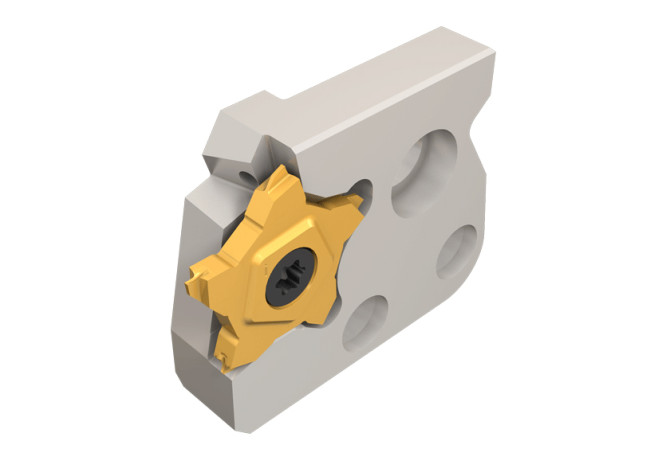

PCADL 24-JHP

Артикул: 2802100

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-377271284033237

FamilyProducts

Adapters with High-Pressure Coolant Holes for PENTACUT Grooving Inserts

HAND Cutting direction

L - Left

HF Functional height

24 mm

ID Technical product number

2802100

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$377271284033237

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

IMC Iscar Metal cutting connection

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 H Shank height

33 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MIID Master insert identification

PENTA 24N050J000

Name Identifying order number

PCADL 24-JHP

OAL Overall length

43.8 mm

WF Functional width

5.2 mm

Working process

No working processes available

WT Weight of item

0.05 kg
