Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning MWLNR3225P08

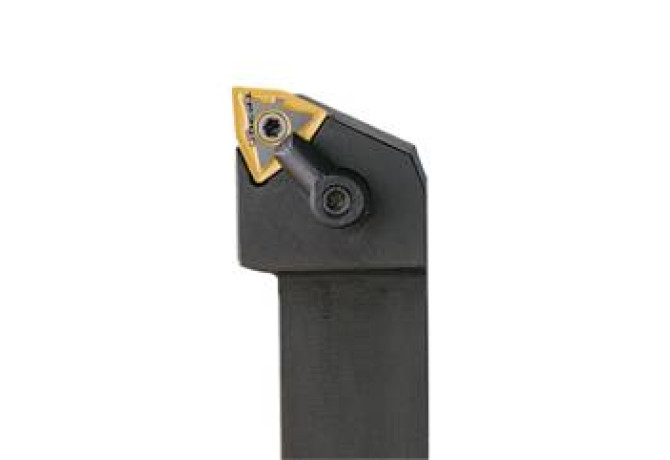

MWLNR3225P08

MWLNR3225P08

Seco

Артикул: 75005048

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

7

C1A Insert thickness Pos. A

4.76 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

VKT32250105

EPSR Insert included angle

80 Degree

FamilyProducts

MWLNR3225P08

GAMO Rake angle orthogonal

-6 Degree

HAND Cutting direction

R - Right

ID Technical product number

75005048

Interface codes

J6 /

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO CSW1

ISO$WN0804**2RB****

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

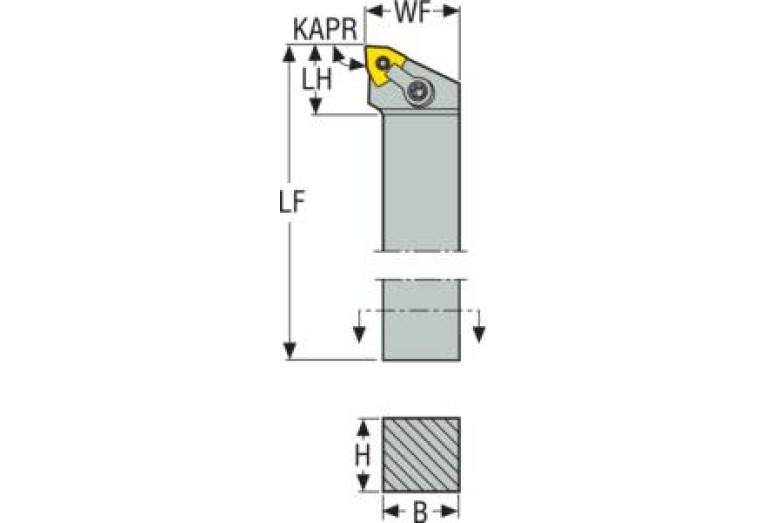

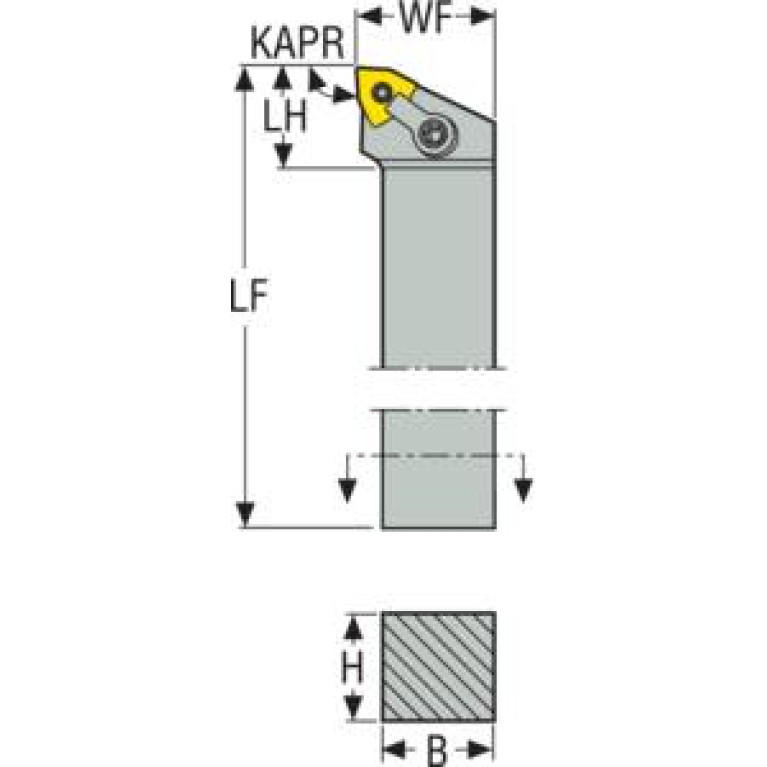

KAPR Tool cutting edge angle

95 Degree

LAMS Inclination angle

-6 Degree

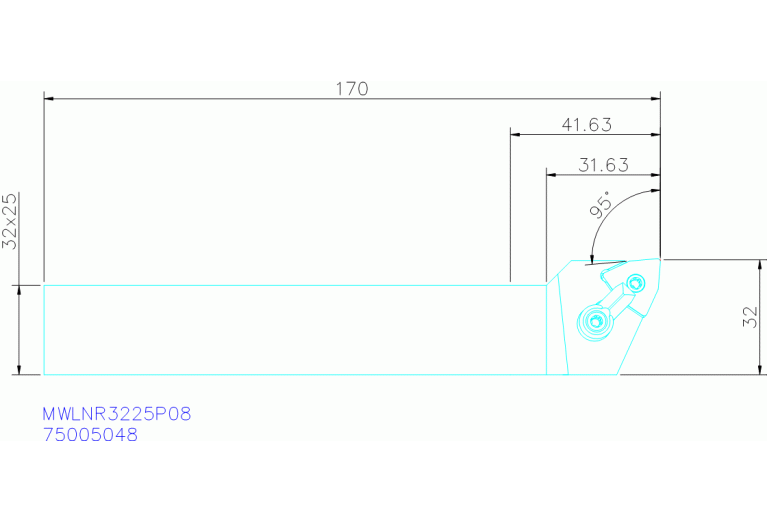

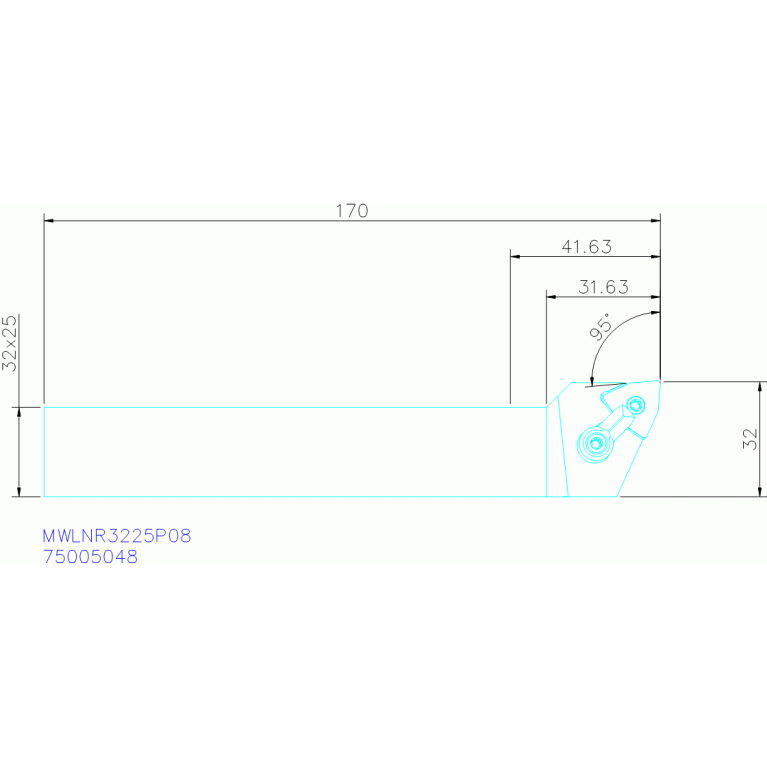

LF Functional length

170 mm

LH Head length

31 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

3225

LOC-03 H Shank height

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT32250105

MIID Master insert identification

WNGG080401-MF1

MTP Clamping type code

M - Top and hole clamping, with cylindrical bore

Name Identifying order number

MWLNR3225P08

NameAnsi Identifying order number inch alternative

MWLNR-3225-P08

STDDES Standard designation

MWLNR3225P08

THSC Tool holder shape code

A - offset shank design

WF Functional width

32 mm

Working process

No working processes available

WT Weight of item

1.1 kg
