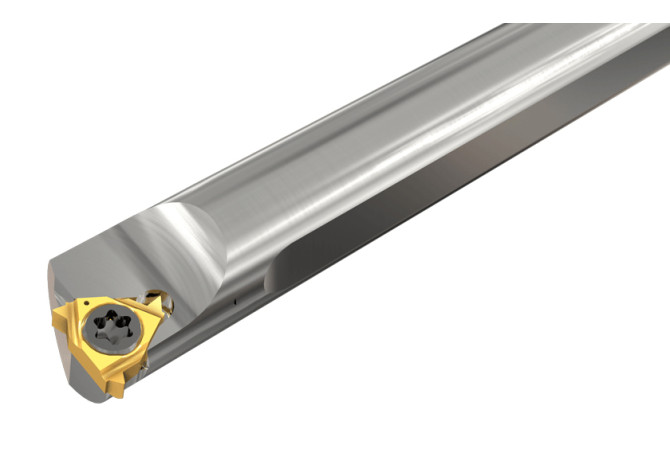

MGSIL 06-06

Артикул: 2800936

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL00602205

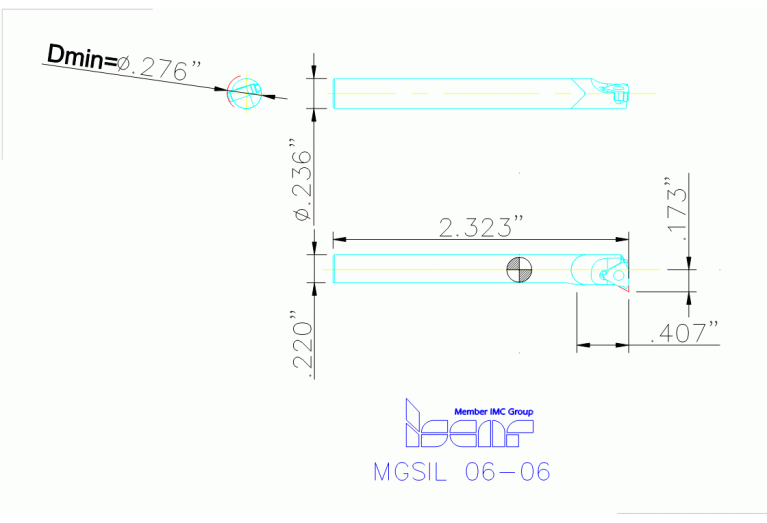

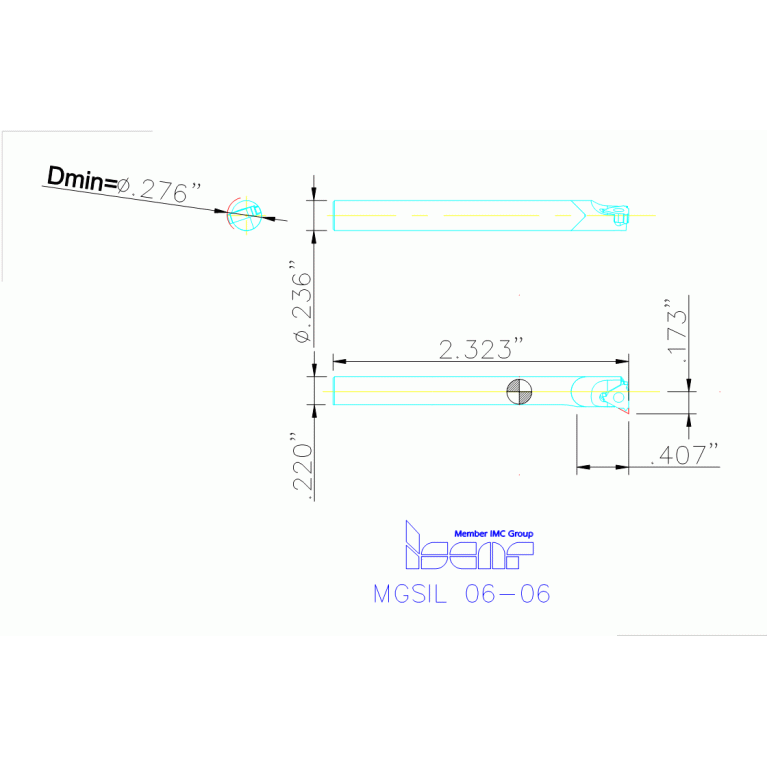

DMIN Minimum bore diameter

7 mm

EPSR Insert included angle

80 Degree

FamilyProducts

Solid Carbide Bars for Internal Turning and Threading

HAND Cutting direction

L - Left

ID Technical product number

2800936

Interface codes

J6 / J61

ISO

ZYL22F6000h$06

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

91 Degree

LF Functional length

59 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL22F6000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00602205

MIID Master insert identification

06IL A 55

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

MGSIL 06-06

OAL Overall length

59 mm

WF Functional width

3.9 mm

Working process

No working processes available
