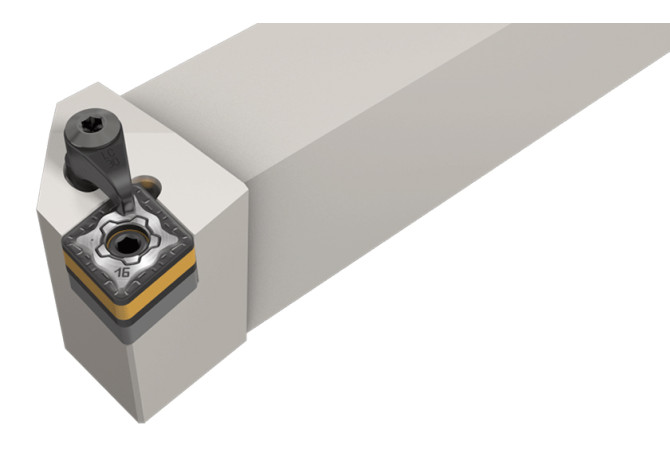

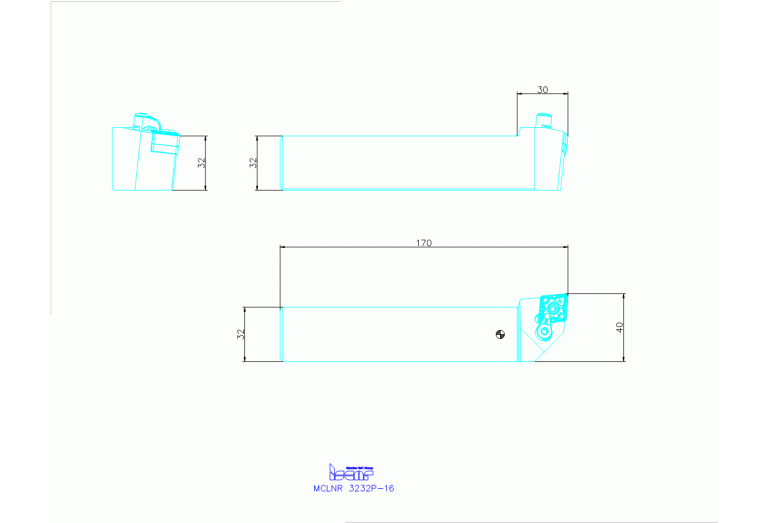

MCLNR 3232P-16

Артикул: 3600315

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

VKT32320105

EPSR Insert included angle

80 Degree

FamilyProducts

Pin and Clamp Tools Carrying 80° Negative Rhombic Inserts

HAND Cutting direction

R - Right

HF Functional height

32 mm

ID Technical product number

3600315

Interface codes

J6 / J61

ISO

VKT01A3232$$$$

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

LF Functional length

170 mm

LH Head length

30 mm

LOC-03 B Shank width

32 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

3232

LOC-03 H Shank height

32 mm

LOC-03 ISO

VKT01A3232$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT32320105

MIID Master insert identification

CNMG 160612-GN

Name Identifying order number

MCLNR 3232P-16

OAL Overall length

170 mm

WF Functional width

40 mm

Working process

No working processes available

WT Weight of item

1.31 kg
