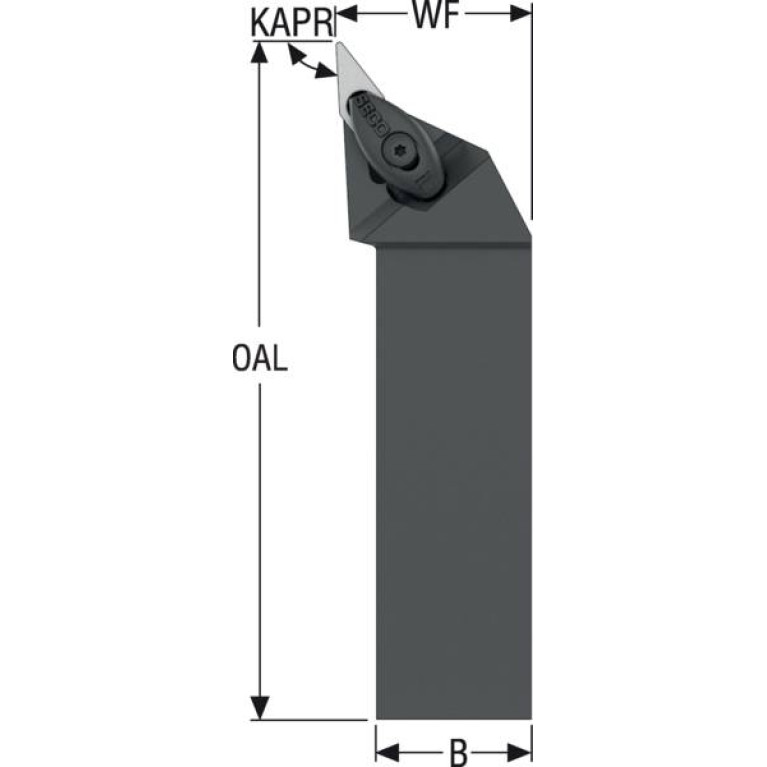

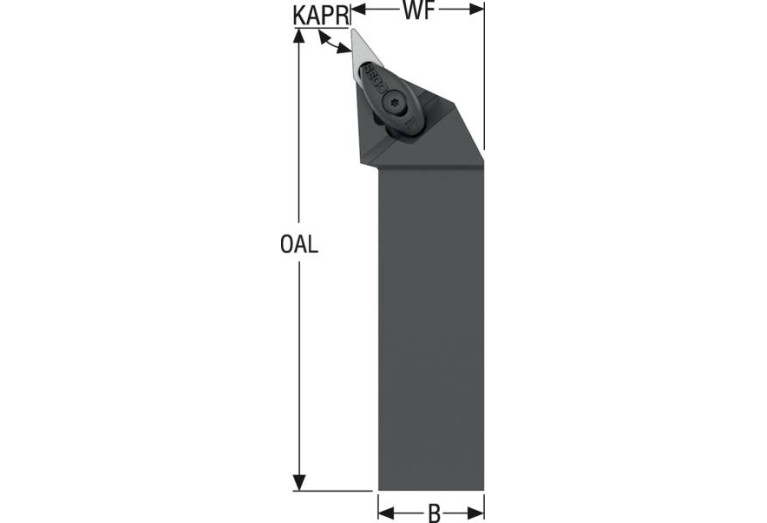

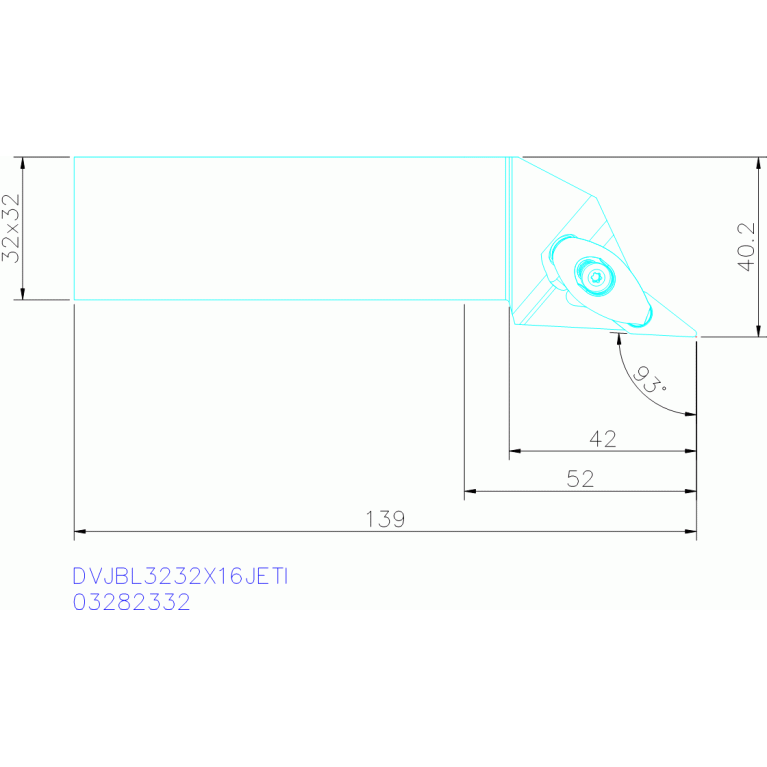

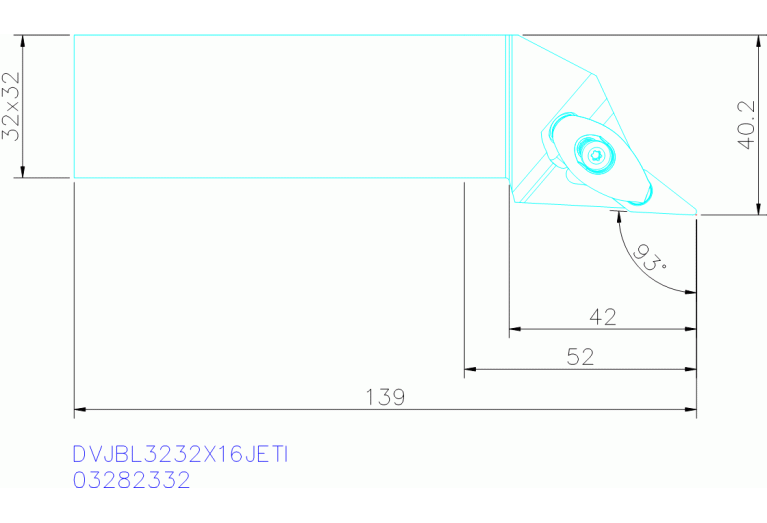

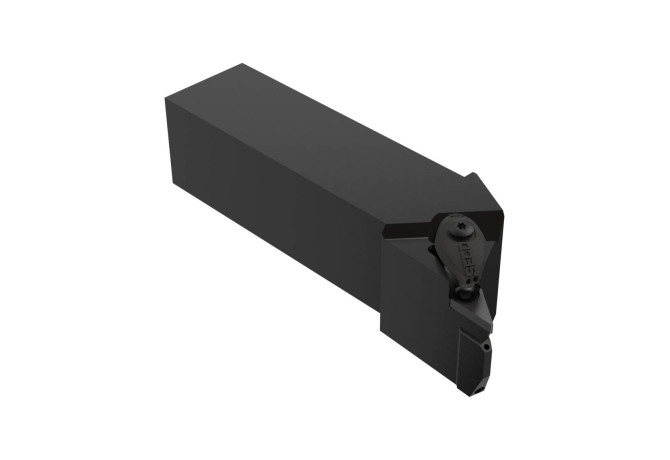

Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning DVJBL3232X16JETI

DVJBL3232X16JETI

DVJBL3232X16JETI DVJBL3232X16JETI DVJBL3232X16JETI DVJBL3232X16JETI

DVJBL3232X16JETI

Seco
Артикул: 03282332
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
5 Degree
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/22/2022
DMIN Minimum bore diameter
200 mm
FamilyProducts
DVJBL3232X16JETI
GAMF Rake angle radial
0 Degree
GAMO Rake angle orthogonal
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
L - Left
HF Functional height
32 mm
ID Technical product number
03282332
Interface codes
/ J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
SSQ02G3232$$$$
ISO CSW1
ISO$VB1604**3N*****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
LAMS Inclination angle
0 Degree
LF Functional length
40 mm
LH Head length
42 mm
LOC-03 B Shank width
32 mm
LOC-03 H Shank height
32 mm
LOC-03 ISO
SSQ02G3232$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
MIID Master insert identification
VBMT160404-M3
Name Identifying order number
DVJBL3232X16JETI
OAL Overall length
139 mm
STDDES Standard designation
DVJBL3232X16JETI
THSC Tool holder shape code
A - offset shank design
WF Functional width
40 mm
Working process
No working processes available
WT Weight of item
0.958 kg
