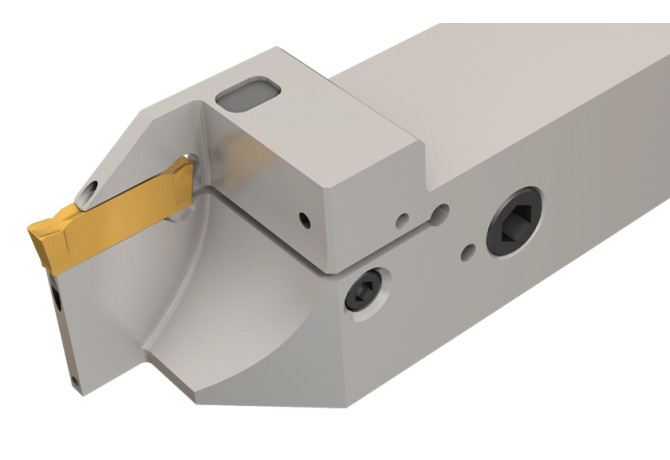

DGTL 25B-2D35-JHP-SL

Артикул: 3304163

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-300947468118283

FamilyProducts

Parting and Grooving Side Lock Type Tools with High-Pressure Coolant for CNC and Swiss Automatics

HAND Cutting direction

L - Left

HF Functional height

25 mm

ID Technical product number

3304163

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$300947468118283

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LH Head length

32.1 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CZCMS Connection size code

2525

LOC-03 H Shank height

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

DGTL 25B-2D35-JHP-SL

OAL Overall length

140 mm

Working process

No working processes available
