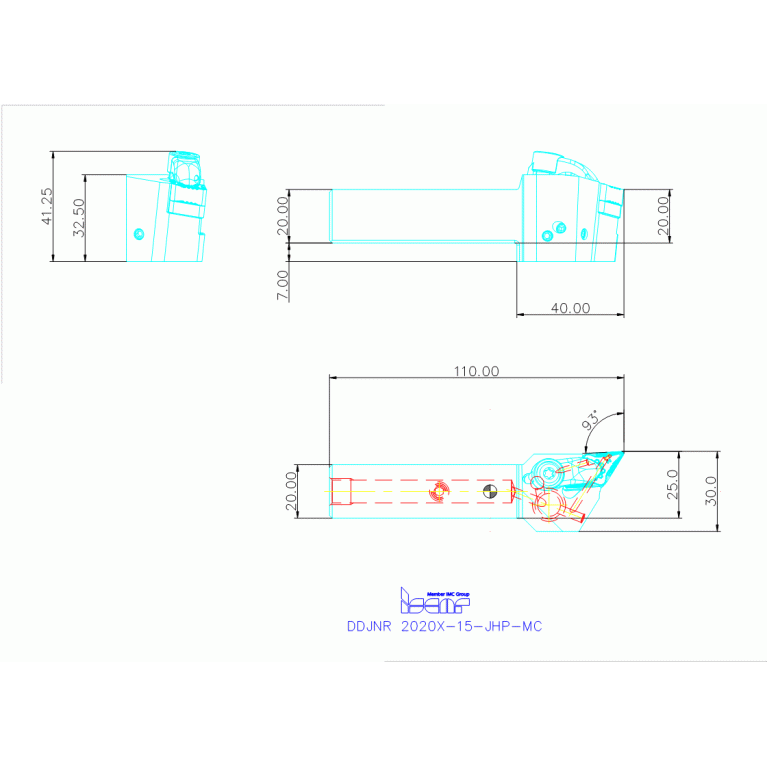

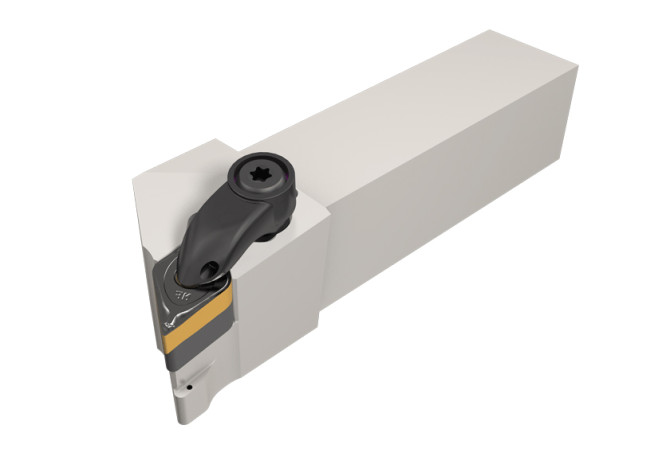

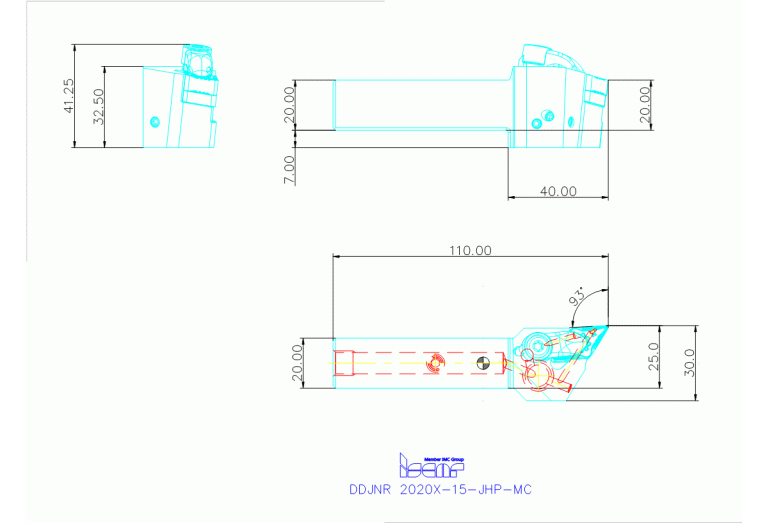

DDJNR 2020X-15-JHP-MC

Артикул: 3346696

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-160324962417975

FamilyProducts

Rigid Clamp Tools with Channels for High-Pressure Coolant Carrying 55° Rhombic Inserts

GAMF Rake angle radial

6 Degree

GAMP Rake angle axial

6 Degree

HAND Cutting direction

R - Right

HF Functional height

20 mm

ID Technical product number

3346696

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$160324962417975

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LF Functional length

110 mm

LH Head length

40 mm

LOC-03 B Shank width

20 mm

LOC-03 H Shank height

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

DDJNR 2020X-15-JHP-MC

OAL Overall length

110 mm

WF Functional width

25 mm

Working process

No working processes available
