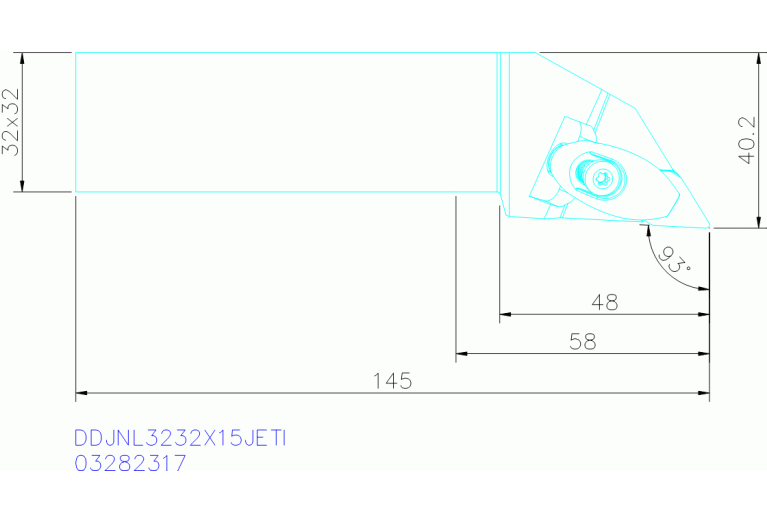

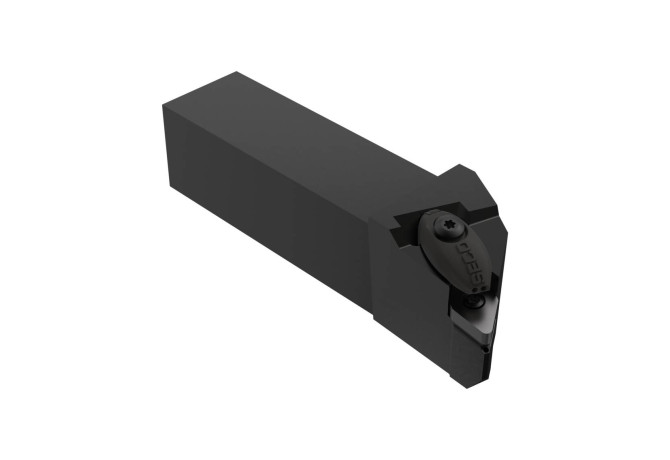

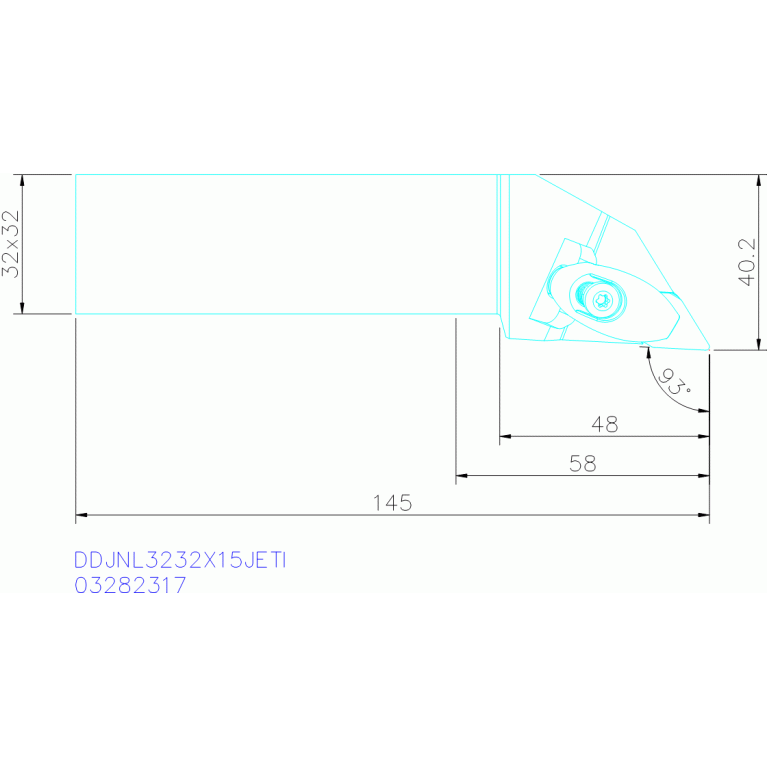

Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning DDJNL3232X15JETI

DDJNL3232X15JETI

DDJNL3232X15JETI DDJNL3232X15JETI DDJNL3232X15JETI DDJNL3232X15JETI

DDJNL3232X15JETI

Seco
Артикул: 03282317
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
6.35 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/22/2022
DMIN Minimum bore diameter
350 mm
FamilyProducts
DDJNL3232X15JETI
GAMF Rake angle radial
-6.34 Degree
GAMO Rake angle orthogonal
-6 Degree
GAMP Rake angle axial
-5.68 Degree
HAND Cutting direction
L - Left

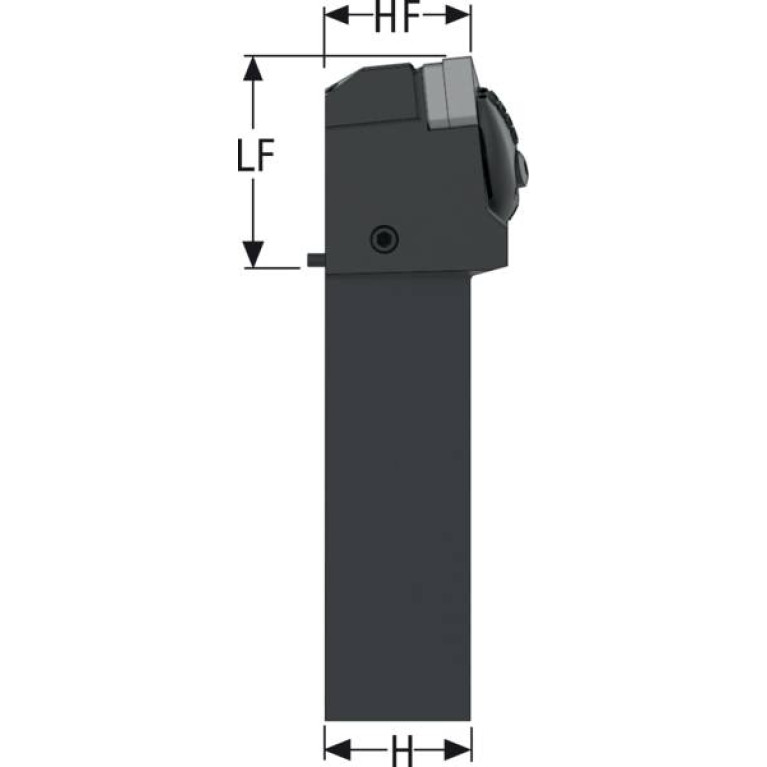

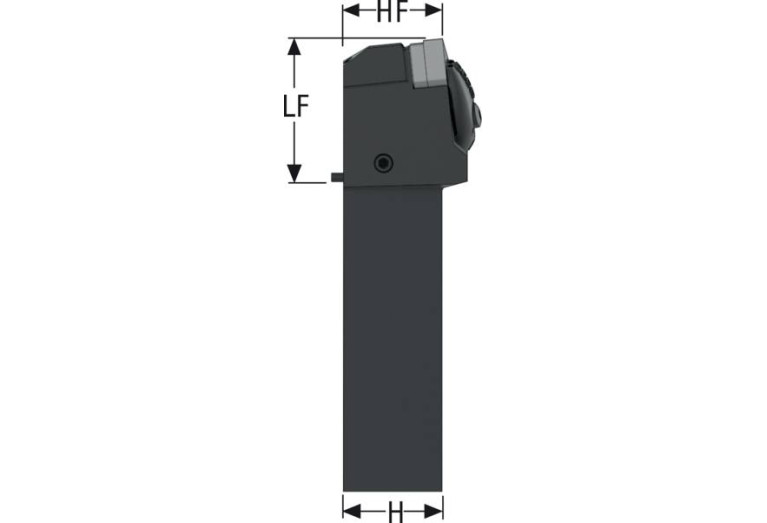

HF Functional height
32 mm
ID Technical product number
03282317
Interface codes
/ J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
SSQ02G3232$$$$
ISO CSW1
ISO$DN1506**2N*****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
LAMS Inclination angle
-6 Degree
LF Functional length
46 mm
LH Head length
48 mm
LOC-03 B Shank width
32 mm
LOC-03 H Shank height
32 mm
LOC-03 ISO
SSQ02G3232$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
MIID Master insert identification
DNMG150608-MF1
Name Identifying order number
DDJNL3232X15JETI
OAL Overall length
145 mm
STDDES Standard designation
DDJNL3232X15JETI
THSC Tool holder shape code
A - offset shank design
WF Functional width
40 mm
Working process
No working processes available
WT Weight of item
1.058 kg
