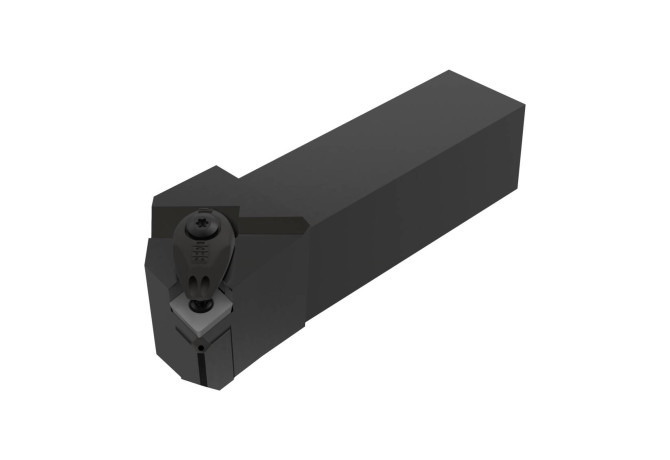

DCLNR3232X16JETI

DCLNR3232X16JETI DCLNR3232X16JETI DCLNR3232X16JETI DCLNR3232X16JETI

DCLNR3232X16JETI

Seco
Артикул: 03282316
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
15.875 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
6.35 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
1.6 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/22/2022
DMIN Minimum bore diameter
270 mm
FamilyProducts
DCLNR3232X16JETI
GAMF Rake angle radial
-6.5 Degree
GAMO Rake angle orthogonal
-6 Degree
GAMP Rake angle axial
-5.4 Degree
HAND Cutting direction
R - Right

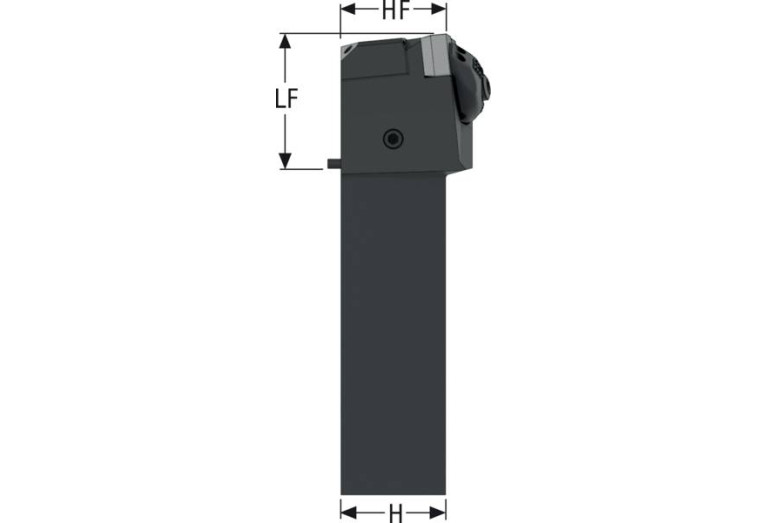

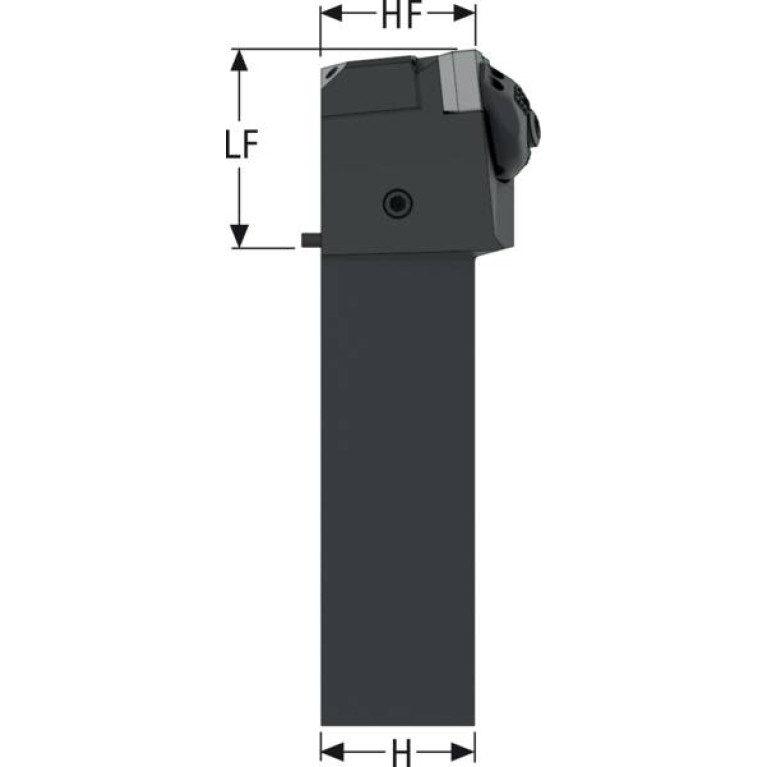

HF Functional height
32 mm
ID Technical product number
03282316
Interface codes
/ J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
SSQ02G3232$$$$
ISO CSW1
ISO$CN1606**2N*****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
LAMS Inclination angle
-6 Degree
LF Functional length
40 mm
LH Head length
42 mm
LOC-03 B Shank width
32 mm
LOC-03 H Shank height
32 mm
LOC-03 ISO
SSQ02G3232$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
MIID Master insert identification
CNMG160616-MR7
Name Identifying order number
DCLNR3232X16JETI

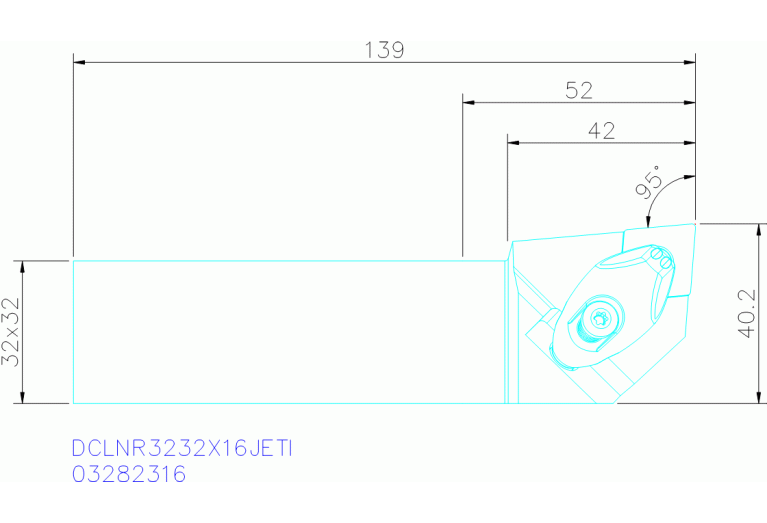

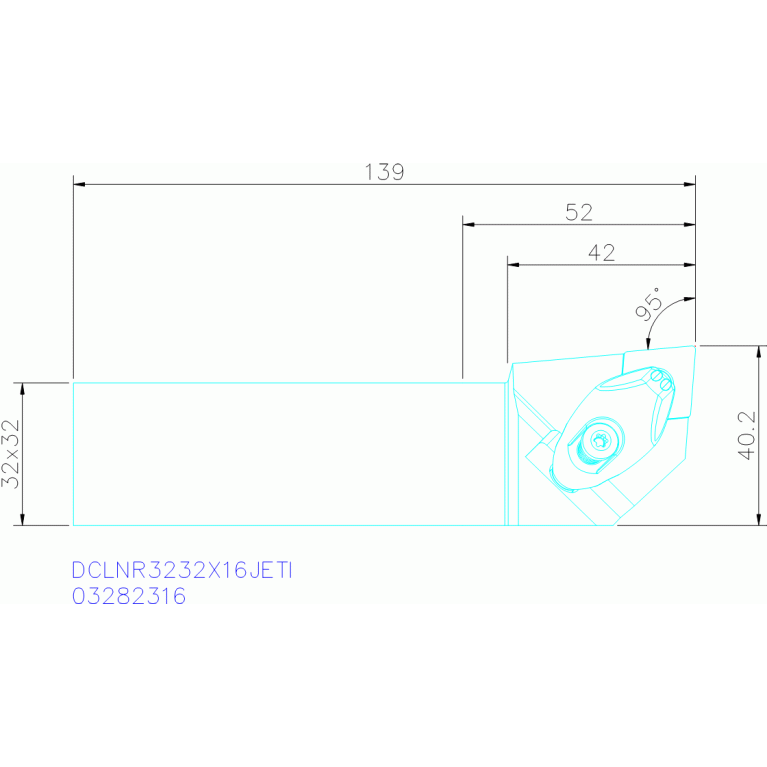

OAL Overall length
139 mm
STDDES Standard designation
DCLNR3232X16JETI
THSC Tool holder shape code
A - offset shank design
WF Functional width
40 mm
Working process
No working processes available
WT Weight of item
1.095 kg
