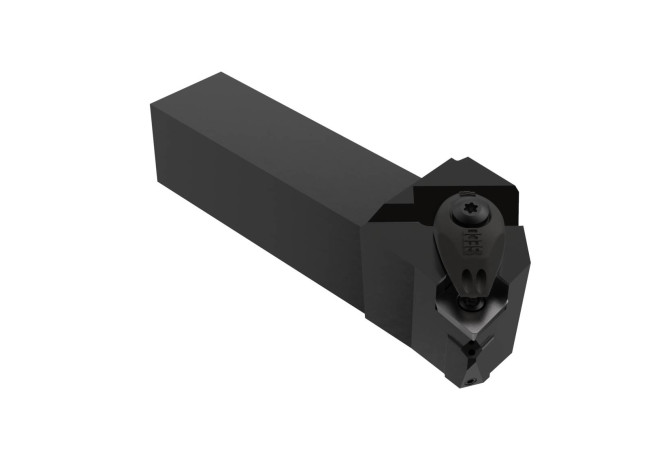

Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning DCLNL-20-4XJETI

DCLNL-20-4XJETI

DCLNL-20-4XJETI DCLNL-20-4XJETI DCLNL-20-4XJETI DCLNL-20-4XJETI

DCLNL-20-4XJETI

Seco
Артикул: 03282261
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/22/2022
DMIN Minimum bore diameter
300 mm
FamilyProducts
DCLNL-20-4XJETI
GAMF Rake angle radial
-6.53 Degree
GAMO Rake angle orthogonal
-6 Degree
GAMP Rake angle axial
-5.45 Degree
HAND Cutting direction
L - Left

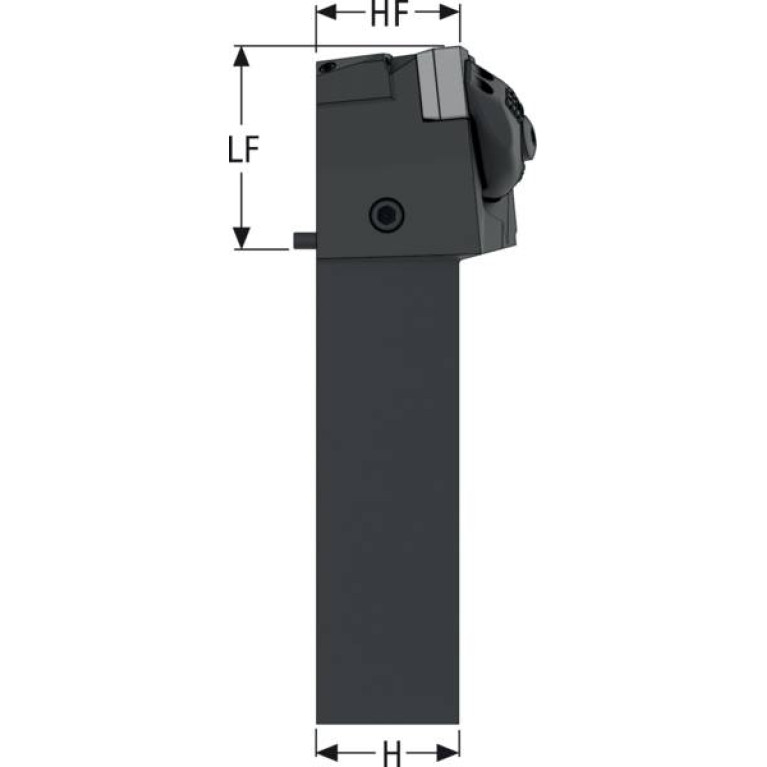

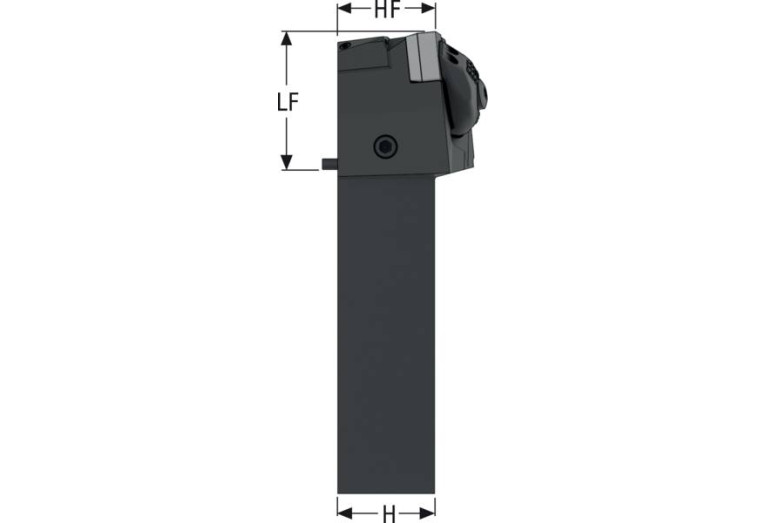

HF Functional height
31.75 mm
ID Technical product number
03282261
Interface codes
/ J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
SSQ02S1250$$$$
ISO CSW1
ISO$CN1204**2N*****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

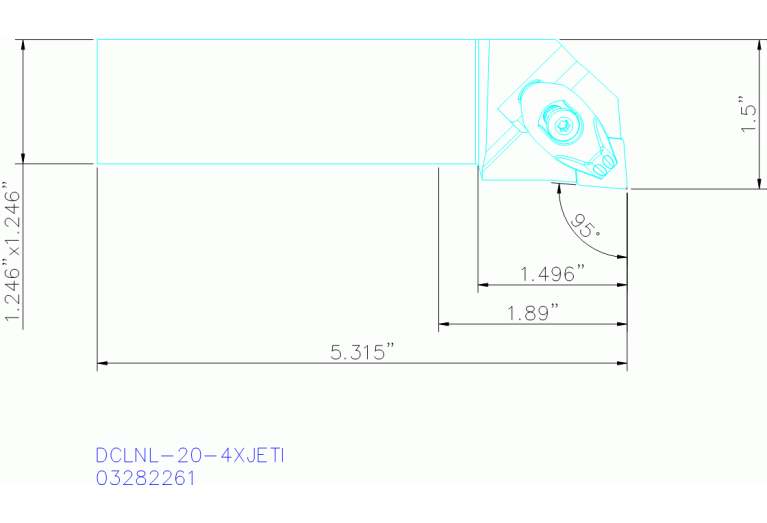

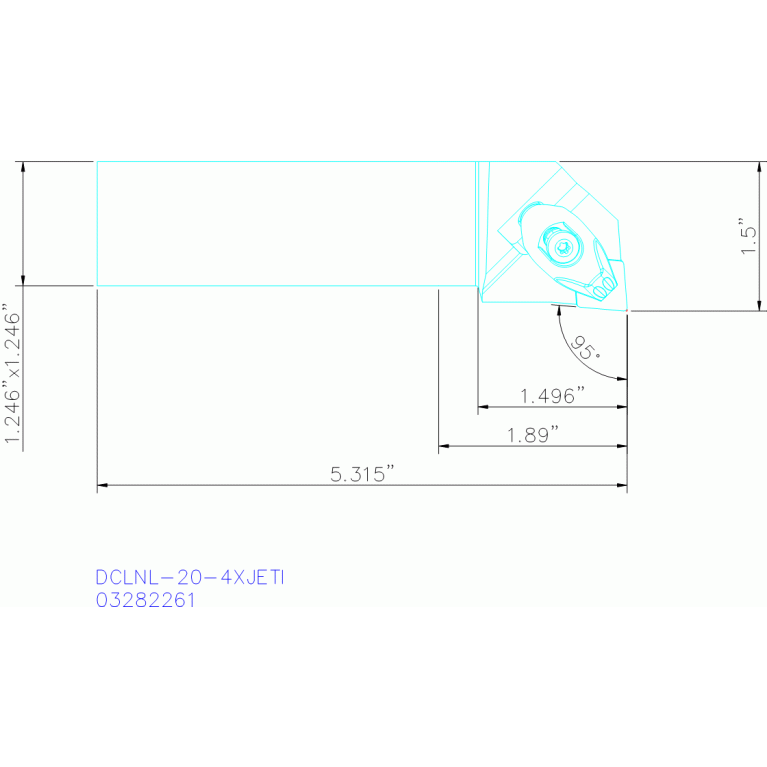

KAPR Tool cutting edge angle
95 Degree
LAMS Inclination angle
-6 Degree
LF Functional length
36 mm
LH Head length
38 mm
LOC-03 B Shank width
31.75 mm
LOC-03 H Shank height
31.75 mm
LOC-03 ISO
SSQ02S1250$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
MIID Master insert identification
CNMG120408-FF2
Name Identifying order number
DCLNL-20-4XJETI
OAL Overall length
135 mm
STDDES Standard designation
DCLNL-20-4XJETI
THSC Tool holder shape code
A - offset shank design
WF Functional width
38.1 mm
Working process
No working processes available
WT Weight of item
0.8 kg
