Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning DCLCL-16-3XJETI

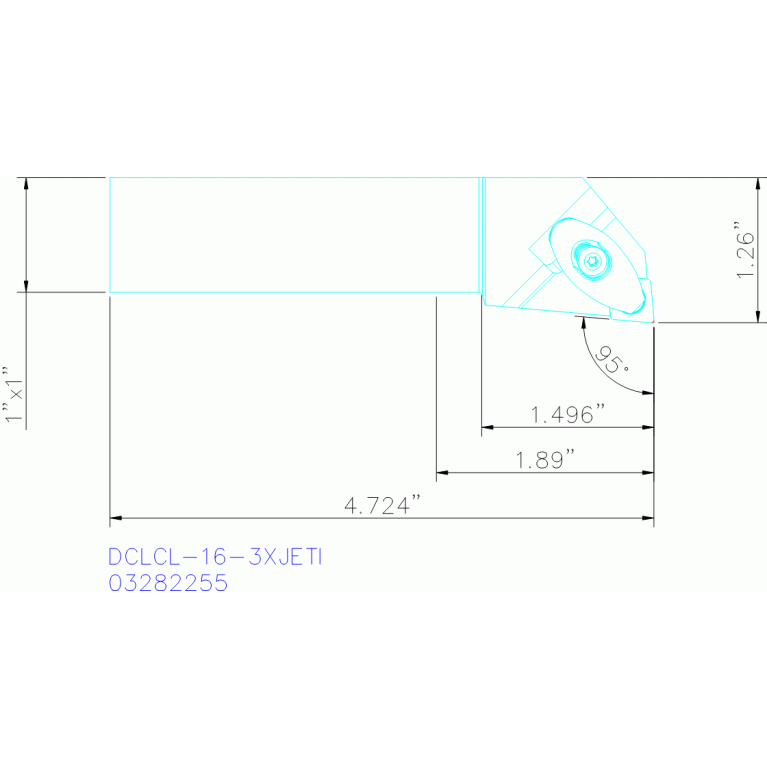

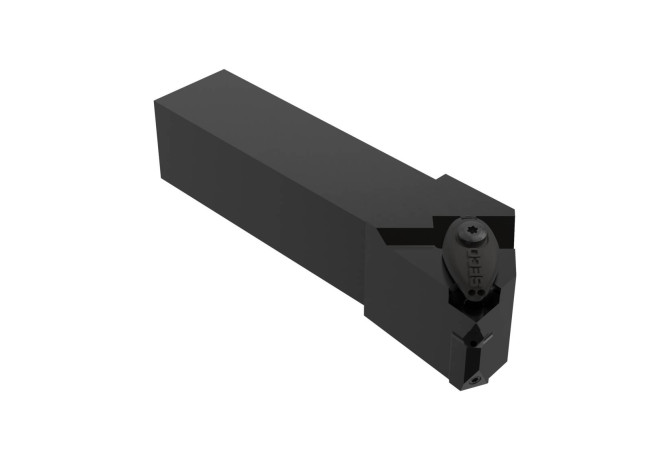

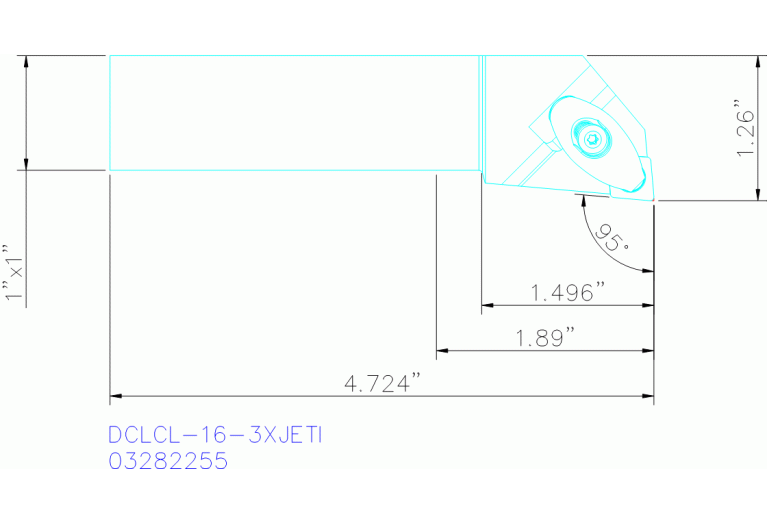

DCLCL-16-3XJETI

DCLCL-16-3XJETI DCLCL-16-3XJETI DCLCL-16-3XJETI DCLCL-16-3XJETI

DCLCL-16-3XJETI

Seco
Артикул: 03282255
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
3.97 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/22/2022
DMIN Minimum bore diameter
235 mm
FamilyProducts
DCLCL-16-3XJETI
GAMF Rake angle radial
0 Degree
GAMO Rake angle orthogonal
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
L - Left

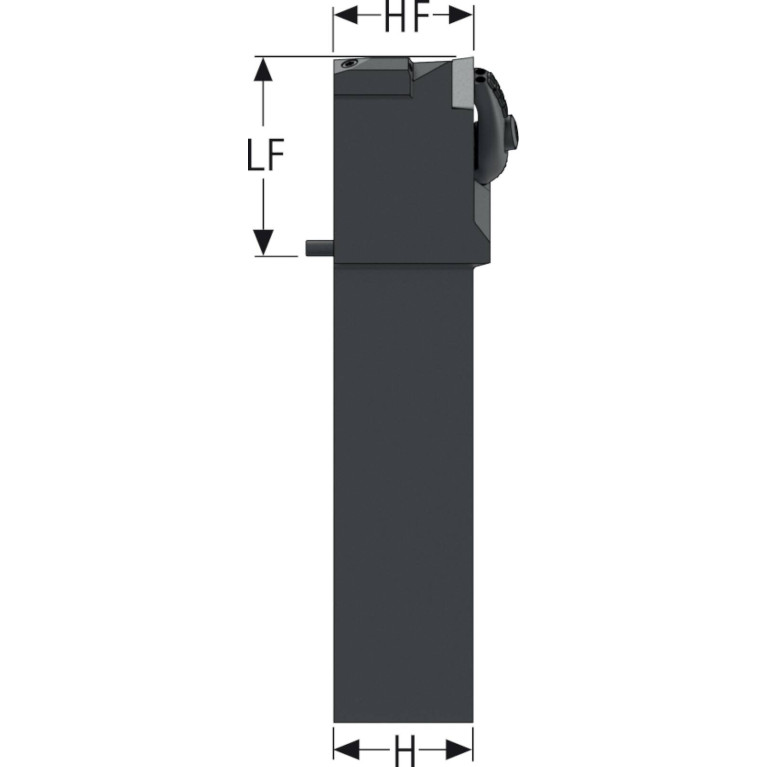

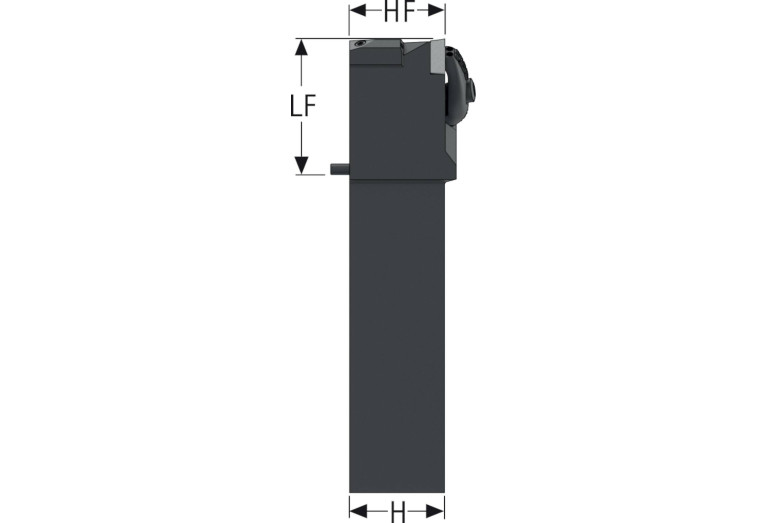

HF Functional height
25.4 mm
ID Technical product number
03282255
Interface codes
/ J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
SSQ02S1000$$$$
ISO CSW1
ISO$CC09T3**3N*****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
LAMS Inclination angle
0 Degree
LF Functional length
36 mm
LH Head length
38 mm
LOC-03 B Shank width
25.4 mm
LOC-03 H Shank height
25.4 mm
LOC-03 ISO
SSQ02S1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
MIID Master insert identification
CCMT09T304-F1
Name Identifying order number
DCLCL-16-3XJETI
OAL Overall length
120 mm
STDDES Standard designation
DCLCL-16-3XJETI
THSC Tool holder shape code
A - offset shank design
WF Functional width
32 mm
Working process
No working processes available
WT Weight of item
0.571 kg
