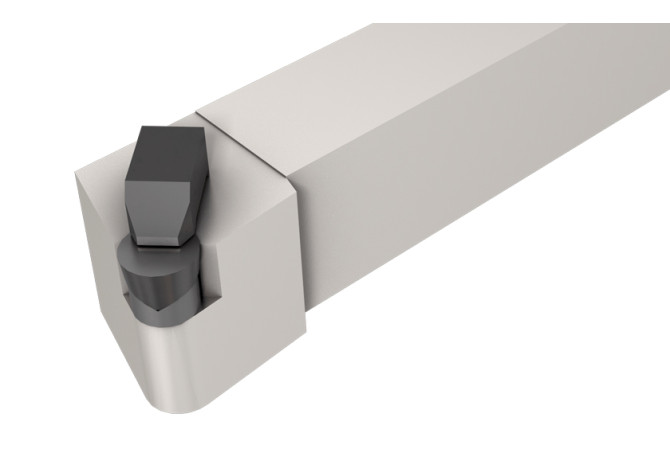

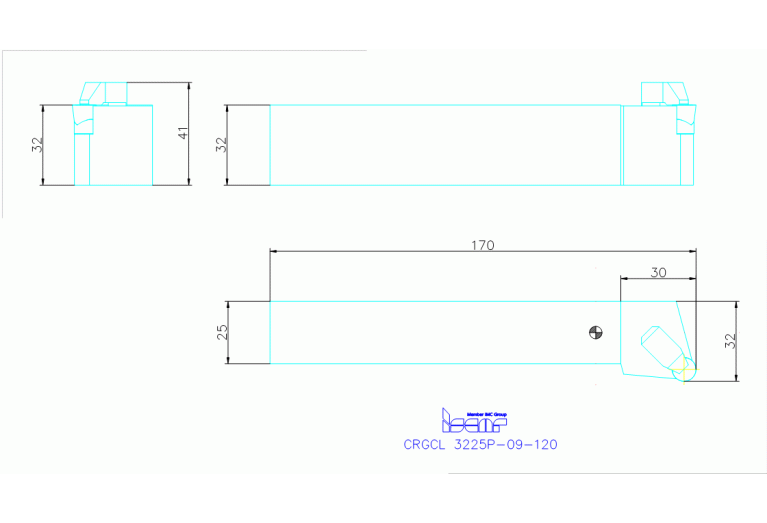

CRGCL 3225P-09-120

Артикул: 6300878

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-119103108801250

FamilyProducts

Clamp Lock Tools Carrying Ceramic Round 7° Positive Inserts

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

L - Left

HF Functional height

32 mm

ID Technical product number

6300878

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$119103108801250

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LF Functional length

170 mm

LH Head length

30 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CZCMS Connection size code

3225

LOC-03 H Shank height

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MIID Master insert identification

RPGX 090700E

Name Identifying order number

CRGCL 3225P-09-120

OAL Overall length

170 mm

WF Functional width

32 mm

Working process

No working processes available
