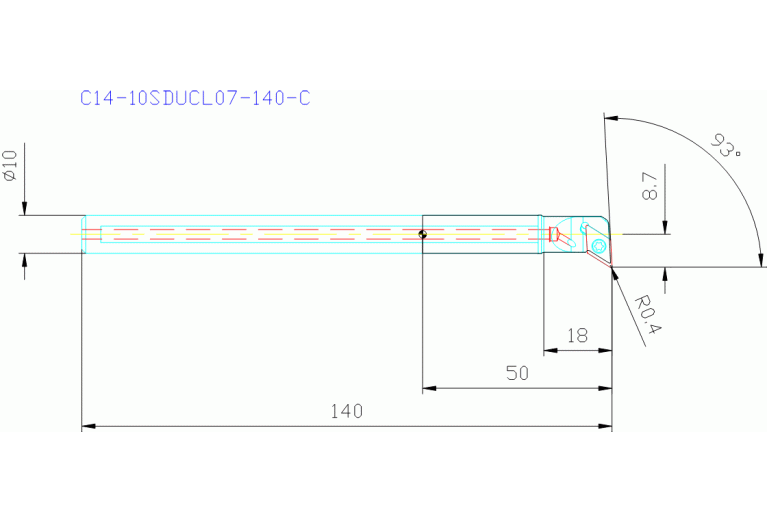

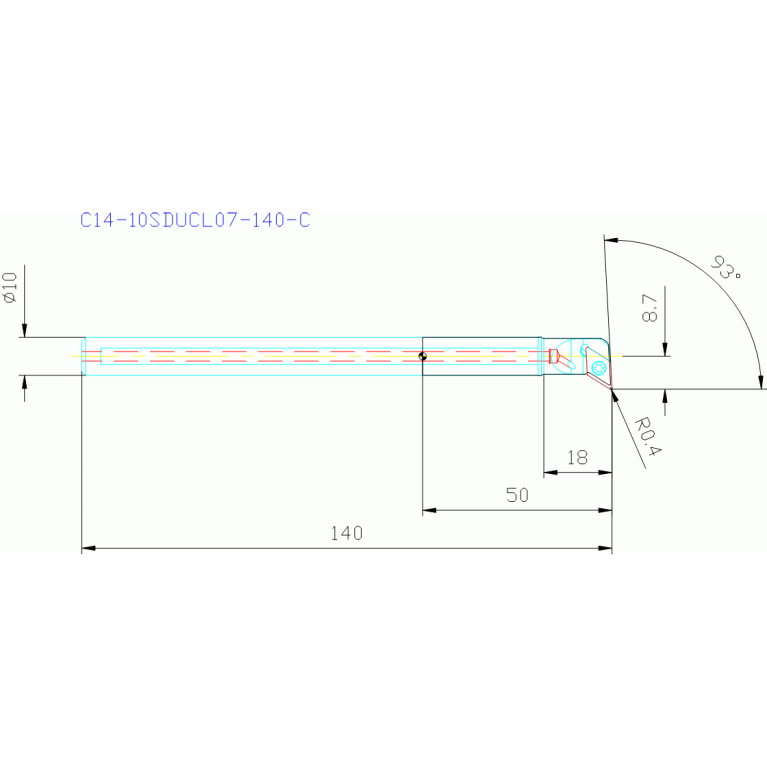

C14-10SDUCL07-140-C

Артикул: 22979889

В наличии

В корзину

Описание

Характеристики

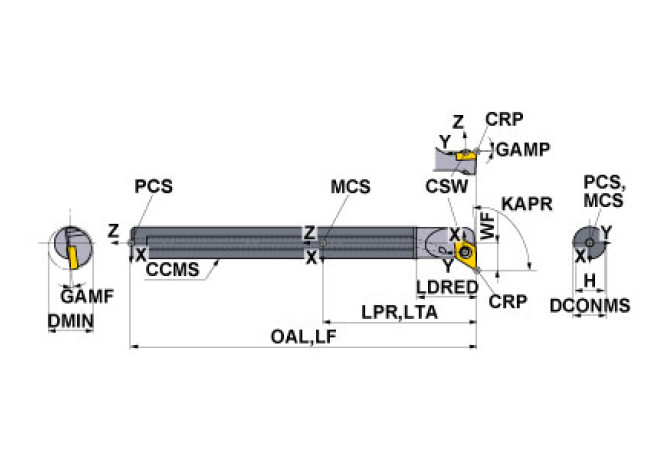

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

Delivery state valid from

8/1/2023

DIN

ZYL01002315

DIN CSW1

DC0702993N

DMIN Minimum bore diameter

14 mm

FamilyProducts

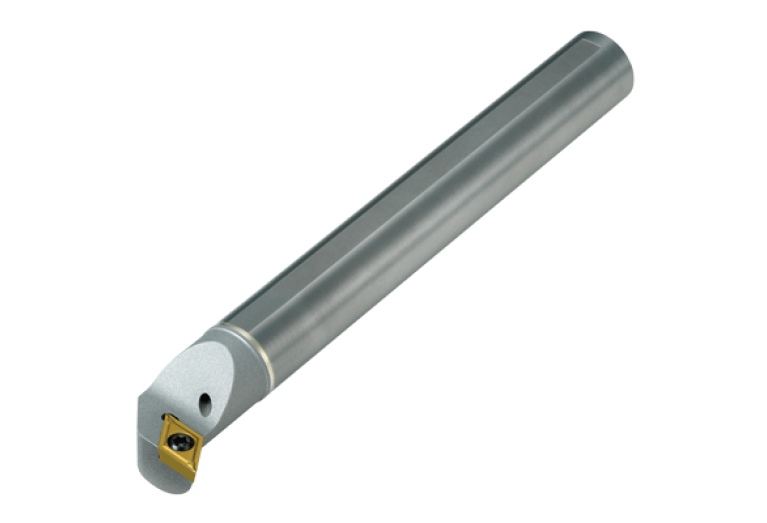

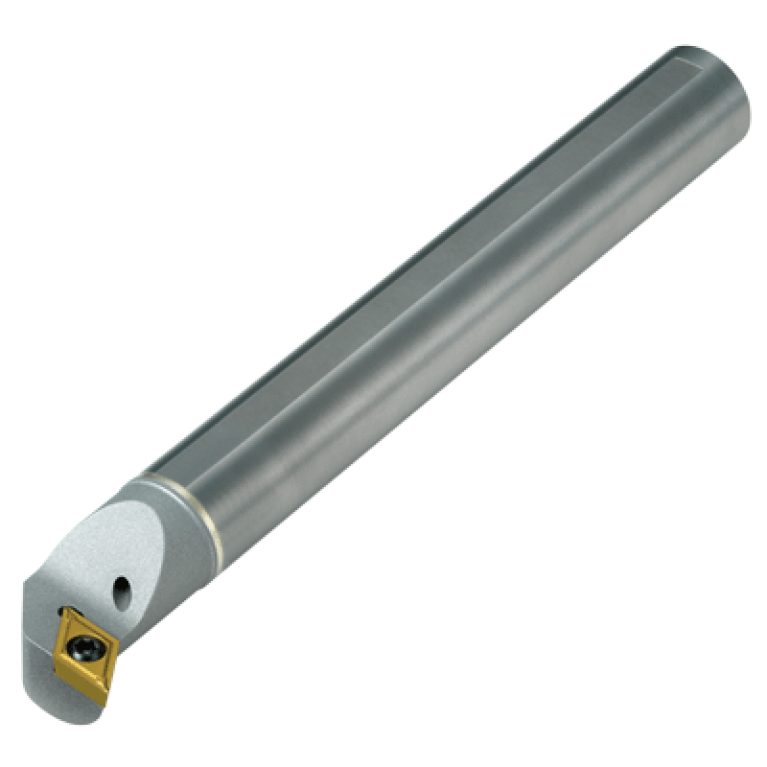

Carbide anti-vibration boring bar for machining small parts

GAMF Rake angle radial

7.5 Degree

GAMP Rake angle axial

3 Degree

HAND Cutting direction

L - Left

ID Technical product number

22979889

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

ZYL23G1000$$$$

ISO CSW1

ISO$DC0702**3NA****

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

LF Functional length

140 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 H Shank height

9 mm

LOC-03 ISO

ZYL23G1000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01002315

LPR Protruding length

50 mm

MIID Master insert identification

DC**0702**

Name Identifying order number

C14-10SDUCL07-140-C

OAL Overall length

140 mm

THSC Tool holder shape code

A - offset shank design

WF Functional width

8.7 mm

Working process

No working processes available
