Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning A40U PTFNL-16X

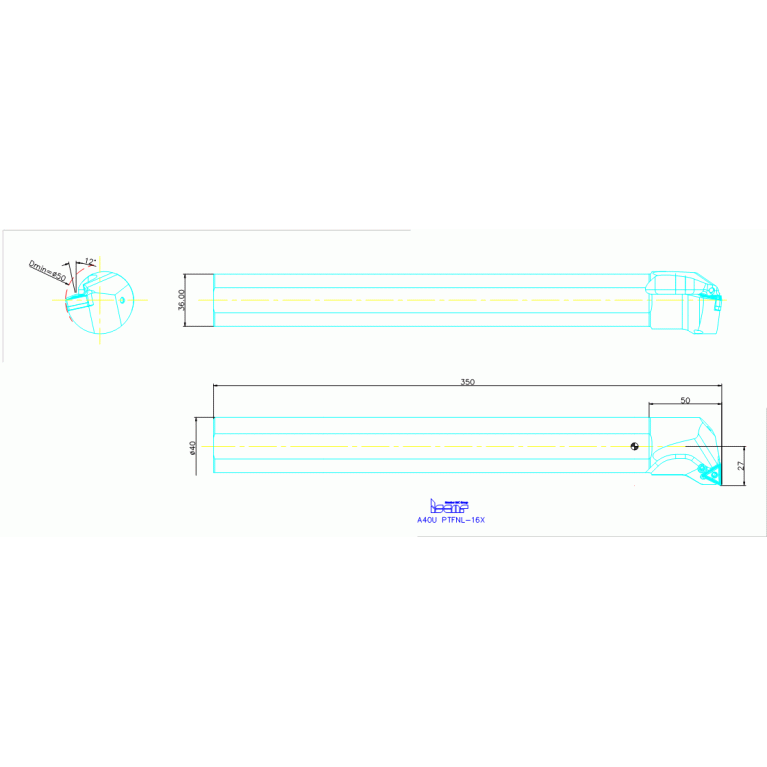

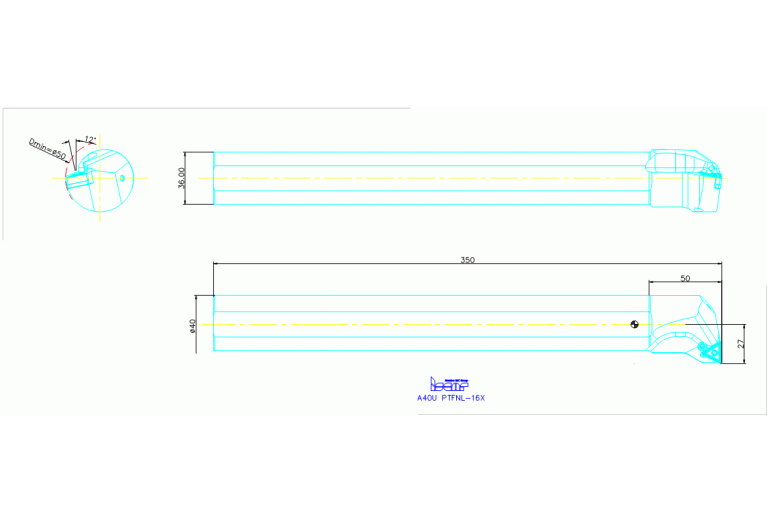

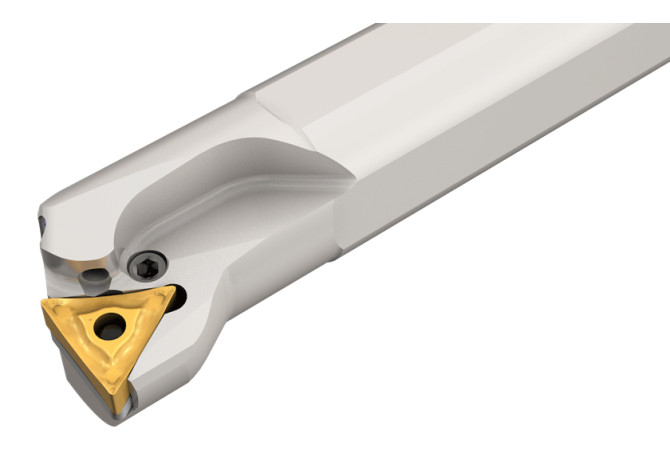

A40U PTFNL-16X

Артикул: 3603525

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

2 - With Coolant exit, radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL04002215

DMIN Minimum bore diameter

50 mm

EPSR Insert included angle

60 Degree

FamilyProducts

91° Lead Angle Lever Lock Boring Bars Carrying Negative TNMX or TNMG Triangular Inserts

HAND Cutting direction

L - Left

ID Technical product number

3603525

Interface codes

J6 / J61

ISO

ZYL22G4000h$06

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

91 Degree

LF Functional length

350 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 H Shank height

36 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL22G4000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04002215

MIID Master insert identification

TNMG 160404-M3P

Name Identifying order number

A40U PTFNL-16X

OAL Overall length

350 mm

WF Functional width

27 mm

Working process

No working processes available

WT Weight of item

3.03 kg
