Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning A25R PSKNR-09

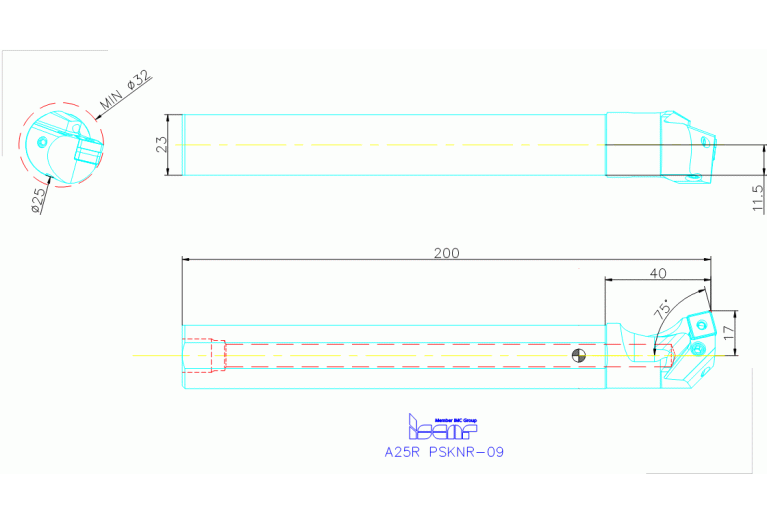

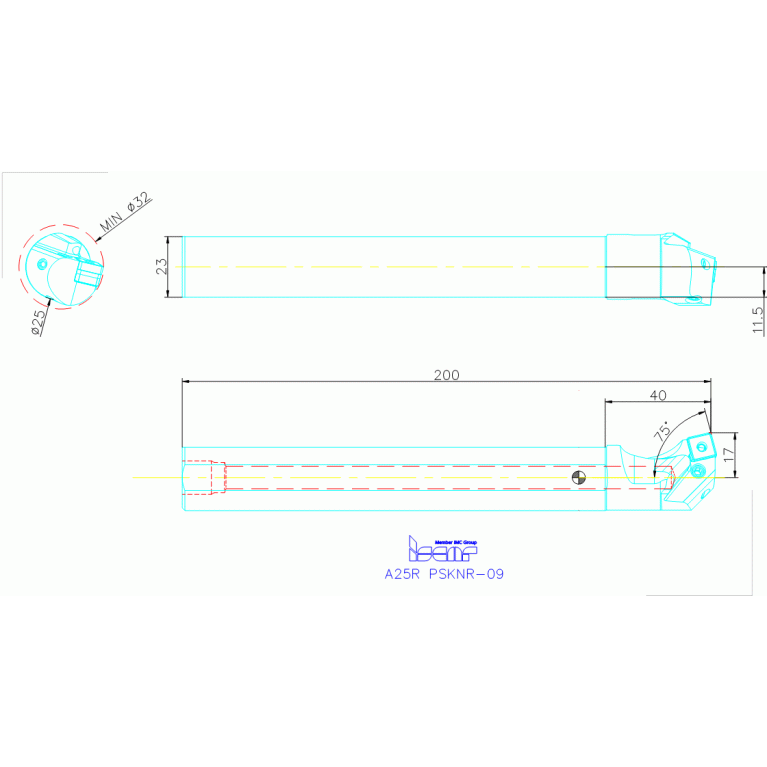

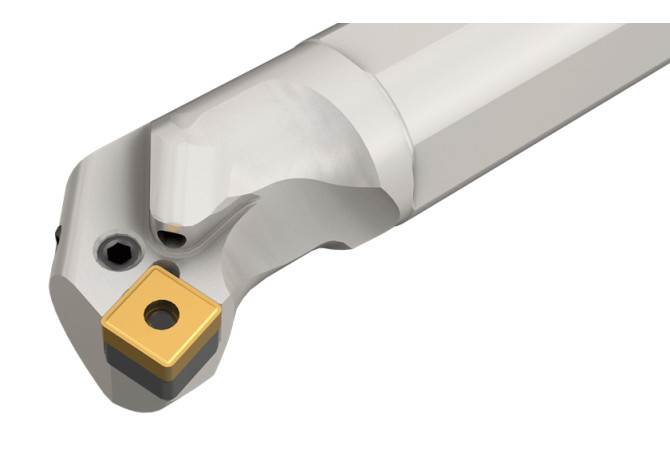

A25R PSKNR-09

Артикул: 3603614

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

2 - With Coolant exit, radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL02502215

DIN CSW1

IS-103888833051752

DMIN Minimum bore diameter

32 mm

EPSR Insert included angle

90 Degree

FamilyProducts

Lever Lock Boring Bars Carrying 90° Negative Square Inserts

HAND Cutting direction

R - Right

ID Technical product number

3603614

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

ZYL22G2500h$06

ISO CSW1

IS$$103888833051752

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

75 Degree

LF Functional length

200 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 H Shank height

23 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL22G2500h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02502215

MIID Master insert identification

SNMG 090404-M3P

Name Identifying order number

A25R PSKNR-09

OAL Overall length

200 mm

WF Functional width

17 mm

Working process

No working processes available

WT Weight of item

0.62 kg
