Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning A20Q PWLNL-06

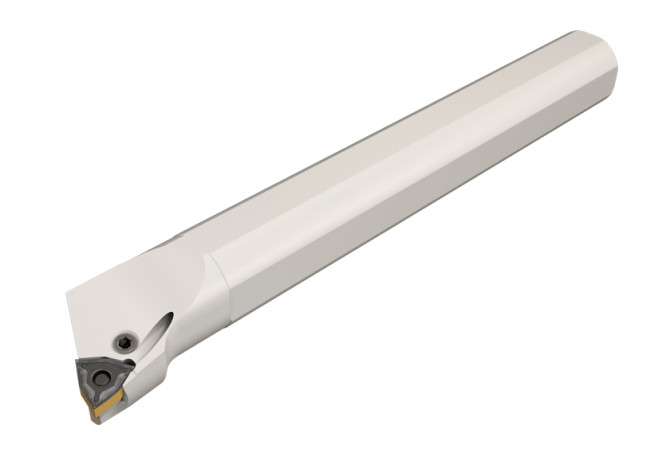

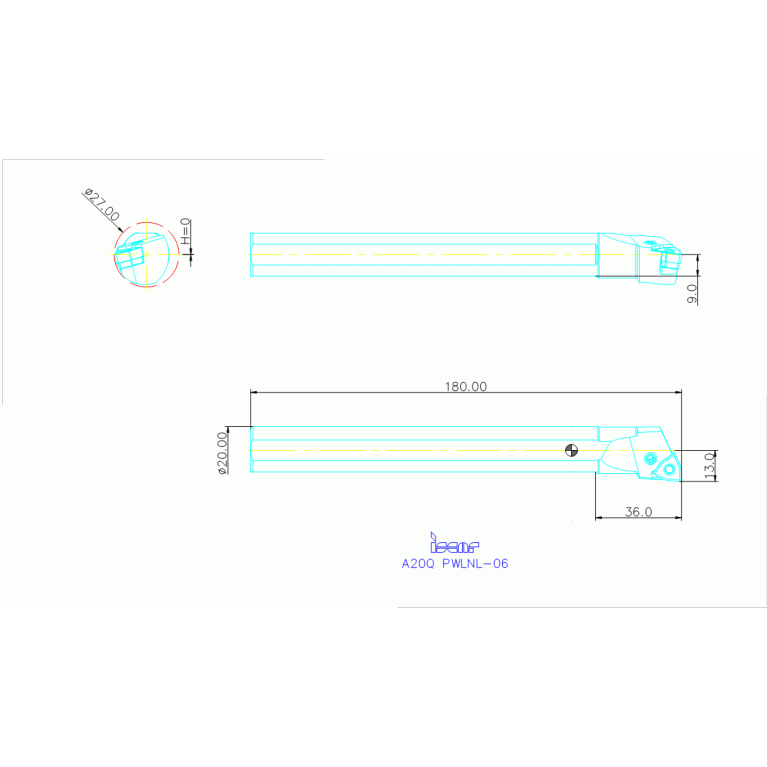

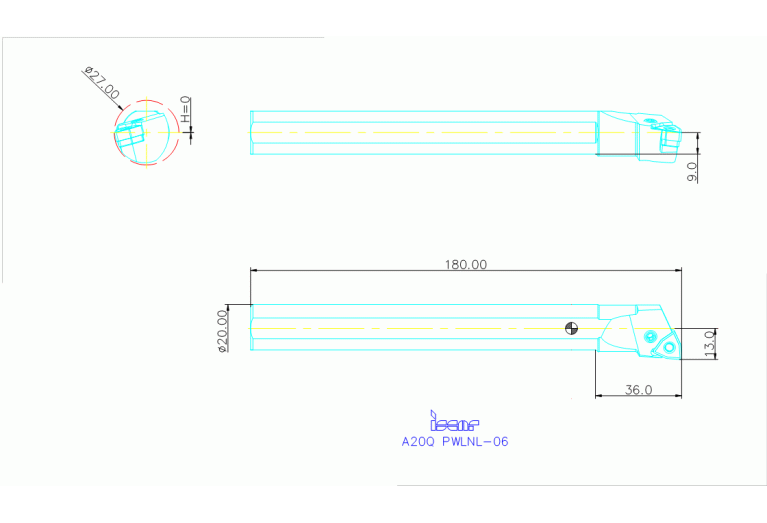

A20Q PWLNL-06

Артикул: 3601191

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

2 - With Coolant exit, radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL02002215

DMIN Minimum bore diameter

25 mm

EPSR Insert included angle

80 Degree

FamilyProducts

Lever Lock Boring Bars Carrying Double-Sided Trigon Inserts

HAND Cutting direction

L - Left

HF Functional height

0.2 mm

ID Technical product number

3601191

Interface codes

J6 / J61

ISO

ZYL22G2000h$06

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

LF Functional length

180 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 H Shank height

18 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL22G2000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02002215

MIID Master insert identification

WNMG 06T304-GN

Name Identifying order number

A20Q PWLNL-06

OAL Overall length

180 mm

WF Functional width

13 mm

Working process

No working processes available

WT Weight of item

0.33 kg
