Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning A16R SVJCR-11

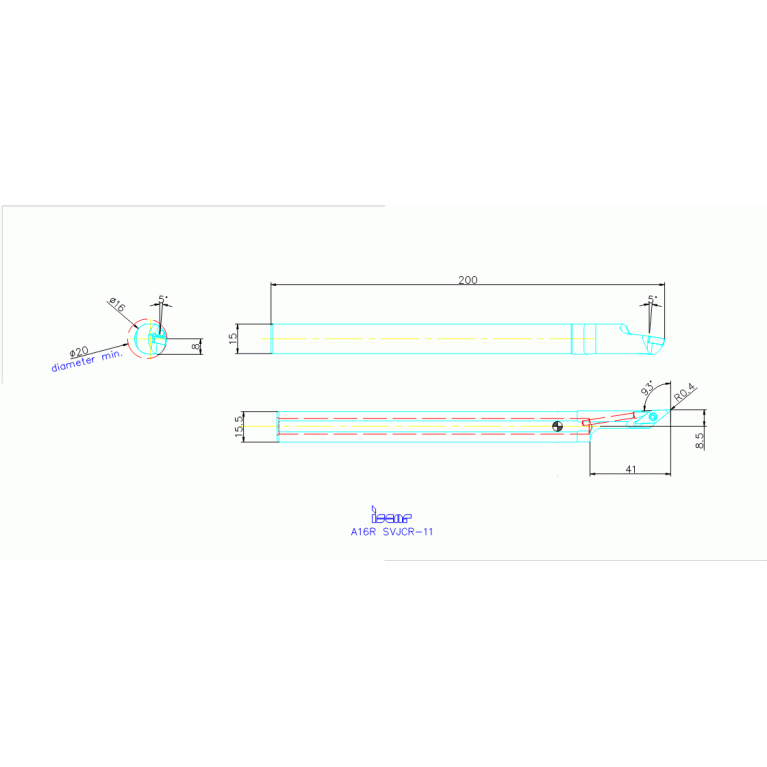

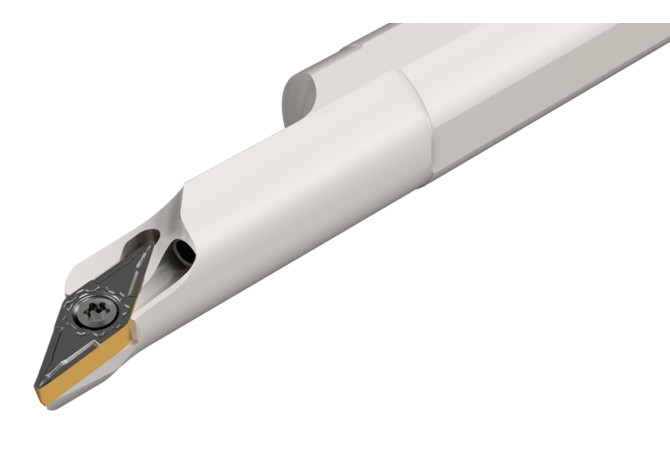

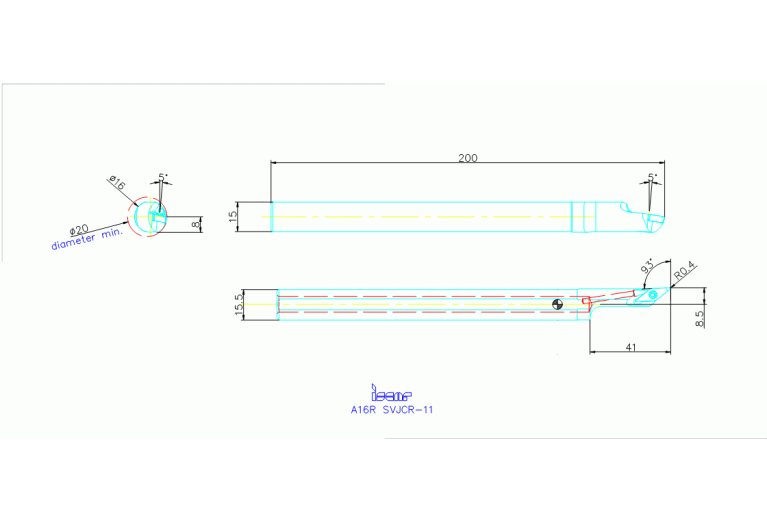

A16R SVJCR-11

Артикул: 3603135

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

2 - With Coolant exit, radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01602215

DMIN Minimum bore diameter

20 mm

EPSR Insert included angle

35 Degree

FamilyProducts

Screw Lock Boring Bars Carrying 35° Rhombic Inserts with 7° Clearance

HAND Cutting direction

R - Right

ID Technical product number

3603135

Interface codes

J6 / J61

ISO

ZYL22G1600h$06

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

LF Functional length

200 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 H Shank height

15 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL22G1600h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01602215

MIID Master insert identification

VC.. 1103

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

A16R SVJCR-11

OAL Overall length

200 mm

WF Functional width

8.5 mm

Working process

No working processes available

WT Weight of item

0.2 kg
