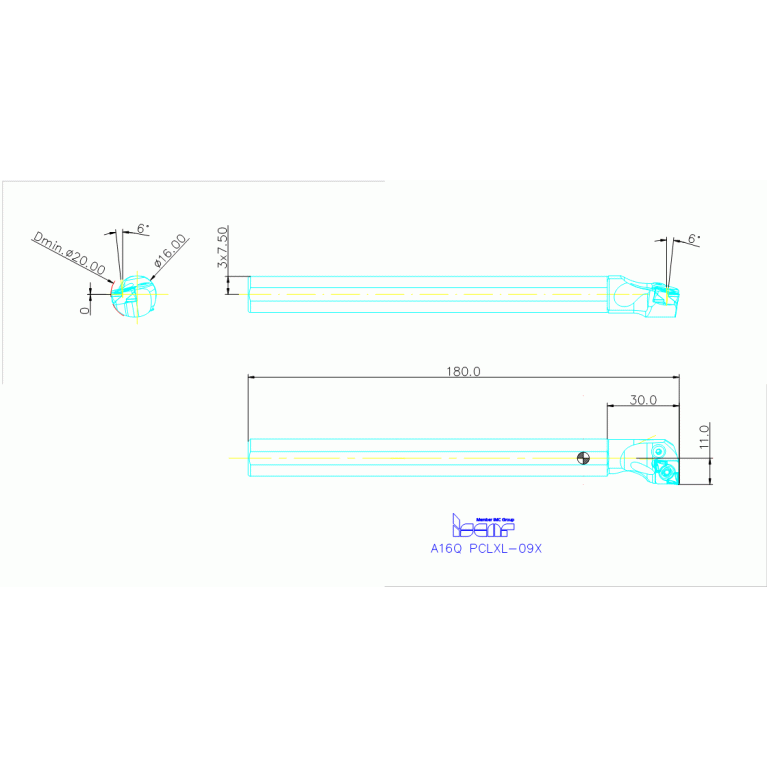

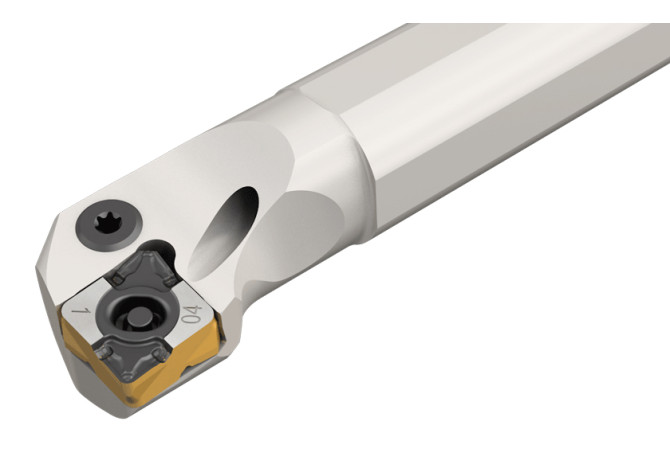

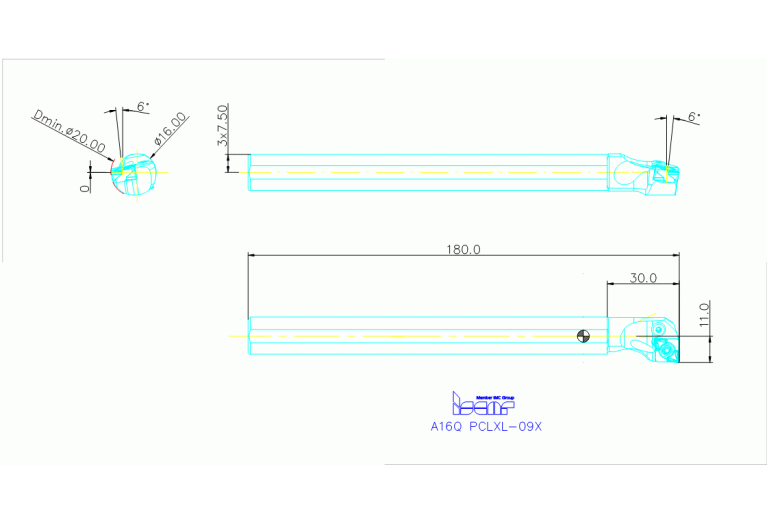

A16Q PCLXL-09X

Артикул: 3345198

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-603953814575252

DMIN Minimum bore diameter

20 mm

FamilyProducts

Lever Lock Boring Bars Carrying Negative CXMG 80° Rhombic Inserts

GAMF Rake angle radial

10 Degree

GAMP Rake angle axial

8 Degree

ID Technical product number

3345198

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$603953814575252

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LF Functional length

180 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 H Shank height

15 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MIID Master insert identification

CXMG 09..

Name Identifying order number

A16Q PCLXL-09X

WF Functional width

11 mm

Working process

No working processes available
