Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning A12M SDXNL-07

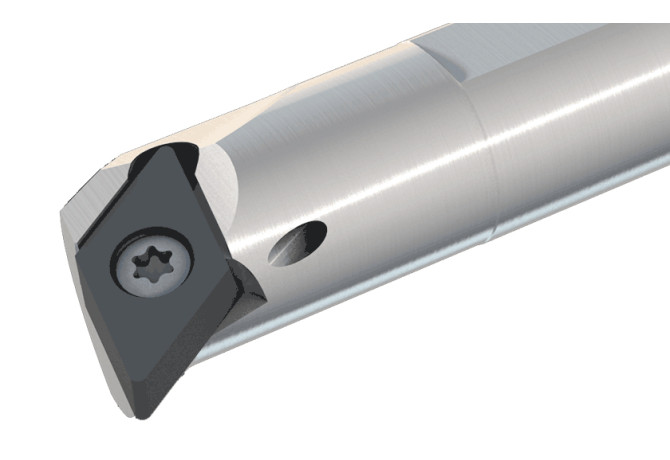

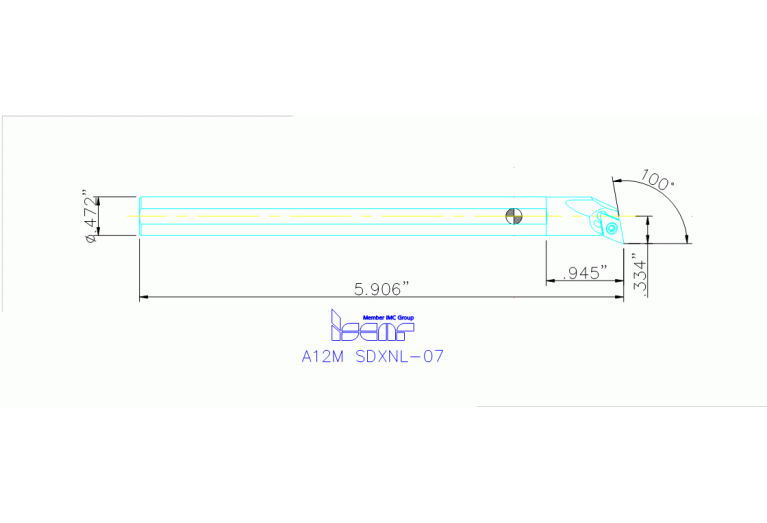

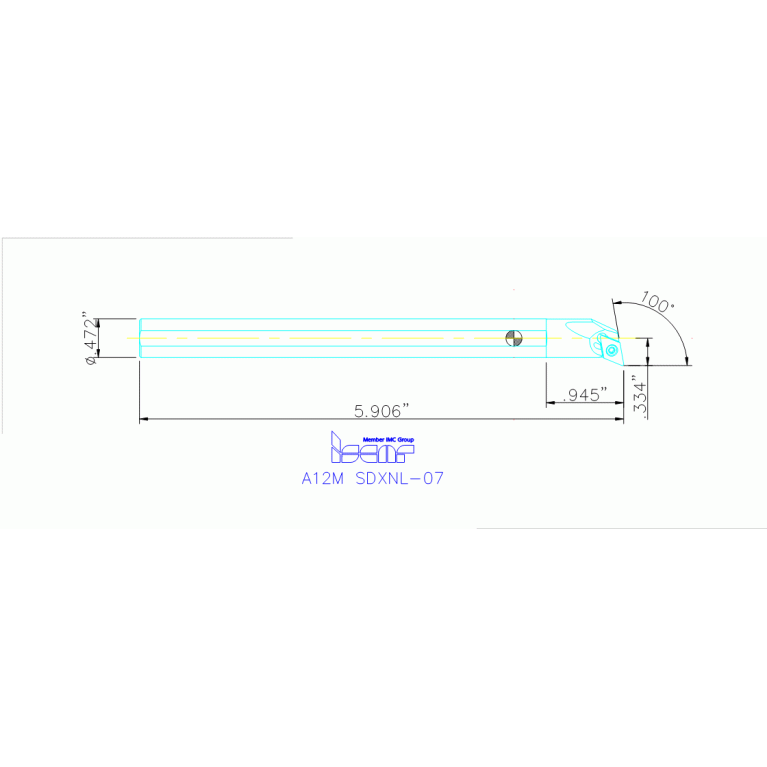

A12M SDXNL-07

Артикул: 6989909

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

2 - With Coolant exit, radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01202215

DIN CSW1

IS-780400026748007

DMIN Minimum bore diameter

16 mm

EPSR Insert included angle

55 Degree

FamilyProducts

Boring Bars Carrying DNGP 0703.. Double-Sided 55° Rhombic Inserts for Small Diameters

HAND Cutting direction

L - Left

ID Technical product number

6989909

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

ZYL22G1200h$06

ISO CSW1

IS$$780400026748007

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

100 Degree

LF Functional length

150 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 H Shank height

11 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL22G1200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01202215

MIID Master insert identification

DNGP 070302R-F2M

Name Identifying order number

A12M SDXNL-07

OAL Overall length

150 mm

WF Functional width

8.6 mm

Working process

No working processes available

WT Weight of item

0.14 kg
