Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning A07G SCLCR-04

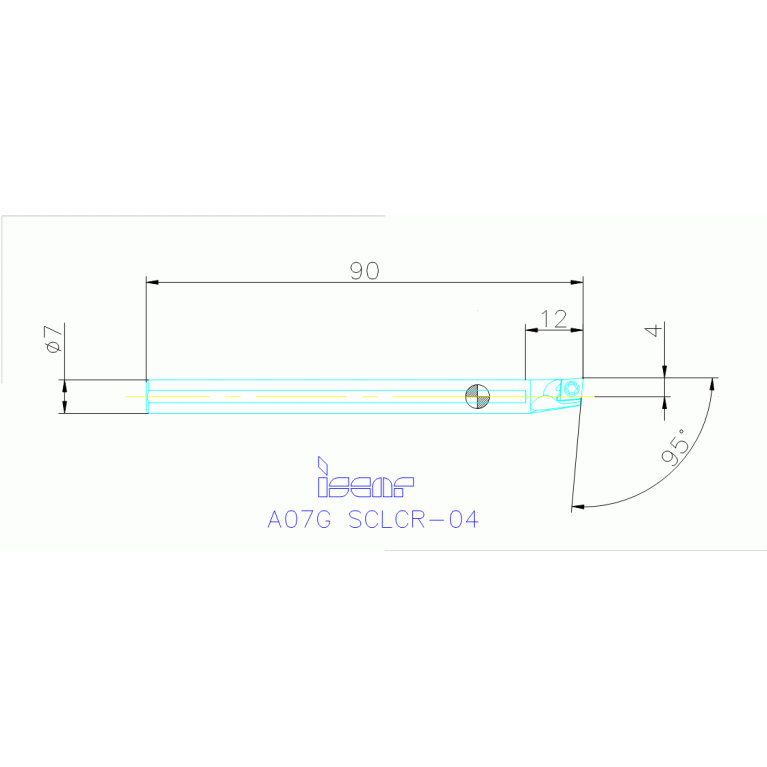

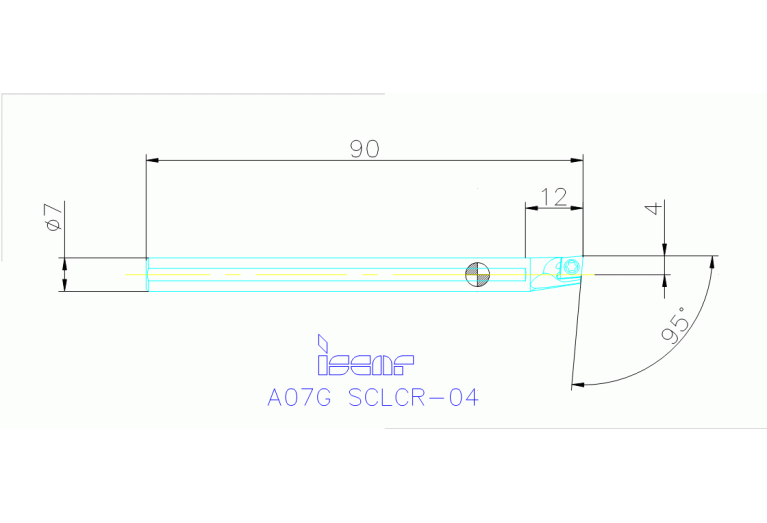

A07G SCLCR-04

Артикул: 6862260

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

2 - With Coolant exit, radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL00702215

DIN CSW1

IS-376722928992144

DMIN Minimum bore diameter

8 mm

EPSR Insert included angle

80 Degree

FamilyProducts

Screw Lock Boring Bars Carrying 80° Rhombic Inserts with 7° Clearance for 20 mm Minimum Bore Diameter

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

ID Technical product number

6862260

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

ZYL22F7000h$06

ISO CSW1

IS$$376722928992144

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

LF Functional length

90 mm

LH Head length

11 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0070

LOC-03 DCONMS Diameter

7 mm

LOC-03 H Shank height

6.8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL22F7000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00702215

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

A07G SCLCR-04

OAL Overall length

90 mm

WF Functional width

4 mm

Working process

No working processes available

WT Weight of item

0.04 kg
