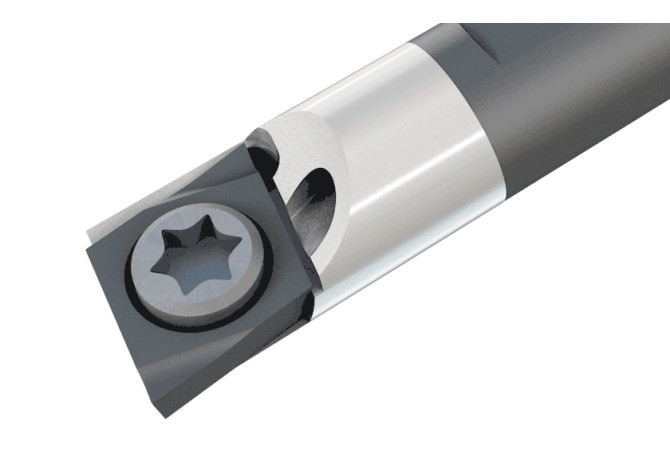

A04F SEXPR-03

A04F SEXPR-03

Iscar
Артикул: 6862270
В наличии
В корзину
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
2 - With Coolant exit, radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL00402215
DIN CSW1
IS-188362277673549

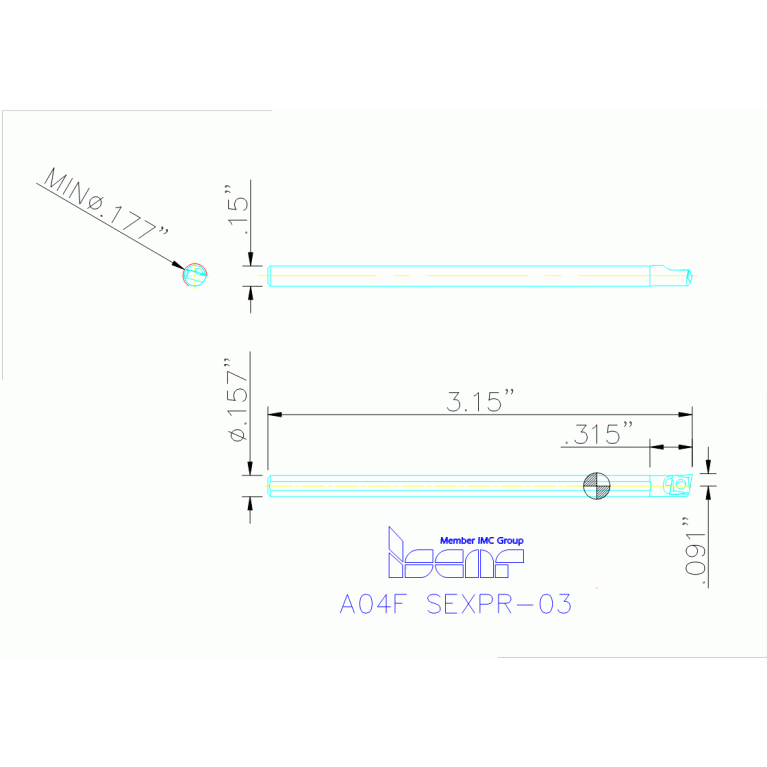

DMIN Minimum bore diameter
4.5 mm
EPSR Insert included angle
75 Degree
FamilyProducts
Screw Lock Boring Bars Carrying 75° Rhombic Inserts with 11° Clearance for 4.5 mm Minimum Bore Diameter
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
6862270
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
ZYL22F4000h$06
ISO CSW1
IS$$188362277673549
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
100 Degree
LF Functional length
80 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0040
LOC-03 DCONMS Diameter
4 mm
LOC-03 H Shank height
3.8 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL22F4000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00402215
MIID Master insert identification
EPGT 03X101-F1P
Name Identifying order number
A04F SEXPR-03
OAL Overall length
80 mm
WF Functional width
2.3 mm
Working process
No working processes available
WT Weight of item
0.03 kg
