Главная Каталог продукции Toolunited 12 309-01 - Tool holder for longitudinal and transversal turning CTFPL 2525M-16

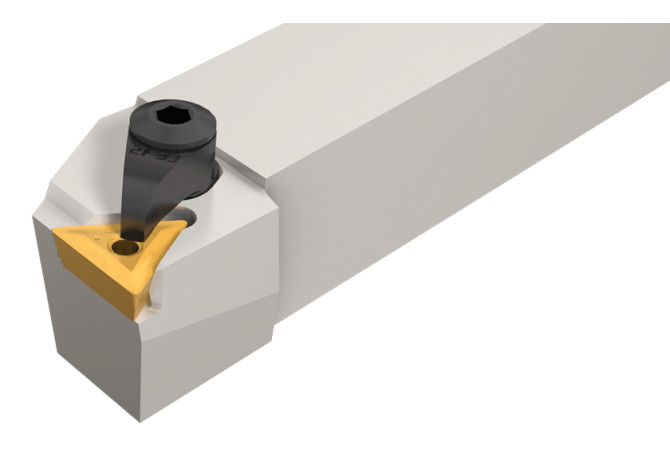

CTFPL 2525M-16

Артикул: 3606504

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

VKT25250105

EPSR Insert included angle

60 Degree

FamilyProducts

Clamp Lock Tools Carrying 11° Clearance Triangular Inserts for Face Turning

GAMF Rake angle radial

6 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

L - Left

HF Functional height

25 mm

ID Technical product number

3606504

Interface codes

J6 / J61

ISO

VKT01A2525$$$$

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

91 Degree

LF Functional length

150 mm

LH Head length

22 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

2525

LOC-03 H Shank height

25 mm

LOC-03 ISO

VKT01A2525$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT25250105

MIID Master insert identification

TPMR 160304

MTP Clamping type code

Name Identifying order number

CTFPL 2525M-16

OAL Overall length

150 mm

WF Functional width

32 mm

Working process

No working processes available

WT Weight of item

0.7 kg
