Главная Каталог продукции Toolunited 12 309-14 - System tool, neutral design for OD turning W1010-2020N-WL25-P

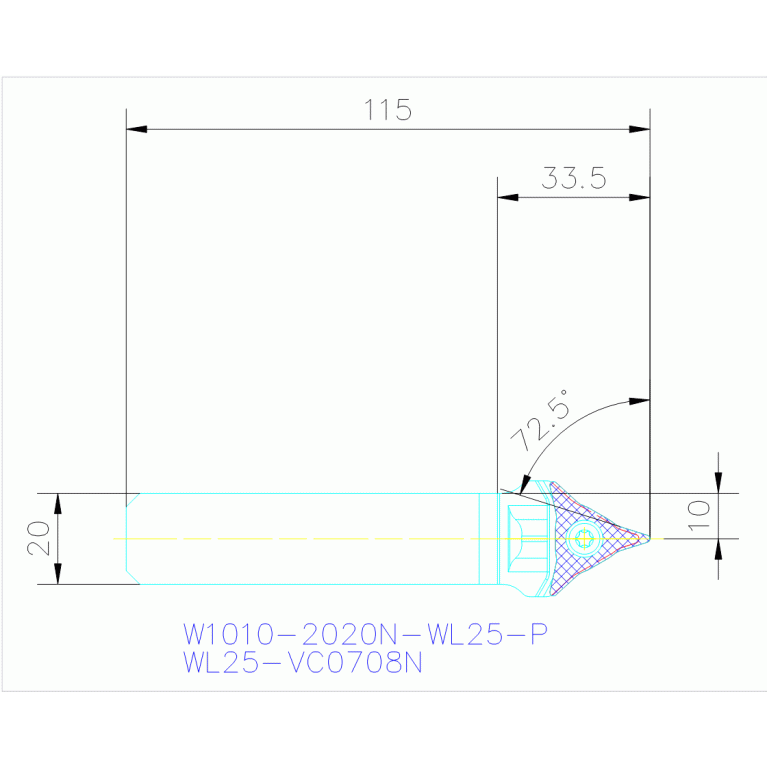

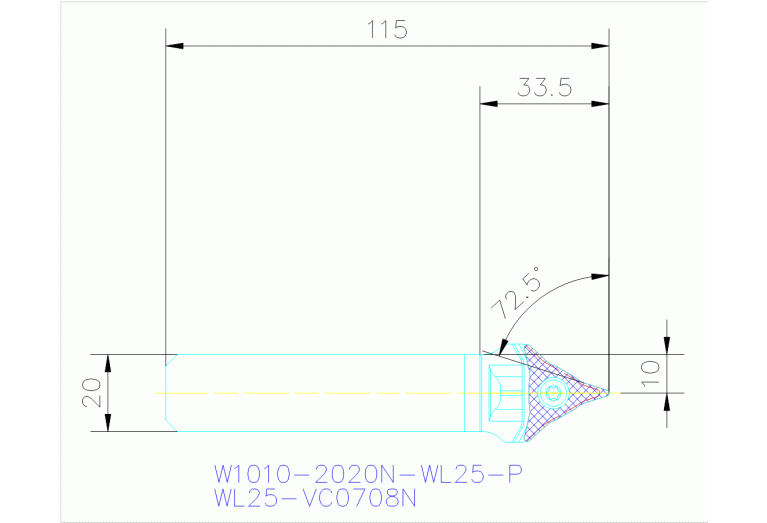

W1010-2020N-WL25-P

Артикул: 8026803

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

7 - With coolant supply (discharge), axial groove at shank

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

VKT20200115

DIN CSW1

W-WL2504**3******

EPSR Insert included angle

35 Degree

FamilyProducts

Shank tool – Copy turning system W1010...-P

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

N - Neutral

HF Functional height

20 mm

ID Technical product number

8026803

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01A2020$$$$

ISO CSW1

WR$$WL2504**3******

ISYC Subclass

309-14 - System tool, neutral design for OD turning

KAPR Tool cutting edge angle

72.5 Degree

L Cutting edge length

25 mm

LAMS Inclination angle

0 Degree

LF Functional length

115 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

2020

LOC-03 ISO

VKT01A2020$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20200115

LPR Protruding length

115 mm

LTA Length tool assembly

115 mm

MIID Master insert identification

WL25-VC0708N-MM4

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

W1010-2020N-WL25-P

OAL Overall length

115 mm

THSC Tool holder shape code

G - straight shank design

WF Functional width

10 mm

Working process

DDA - External turning,DFA - External form turning

WT Weight of item

0.28 kg
