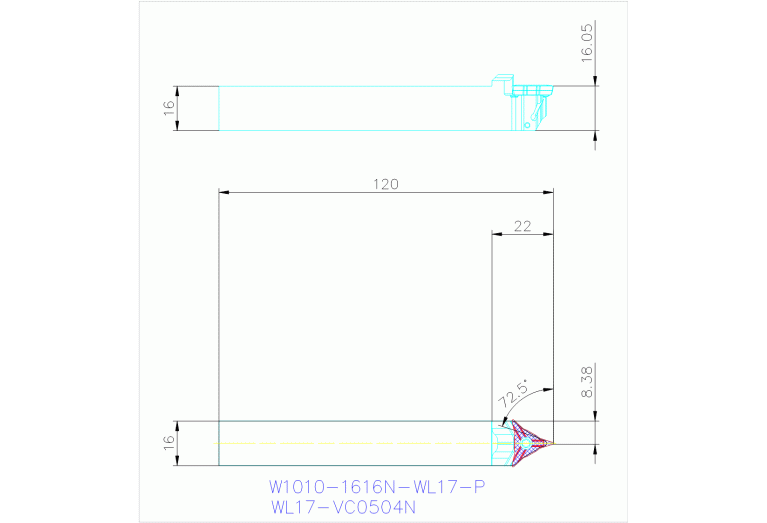

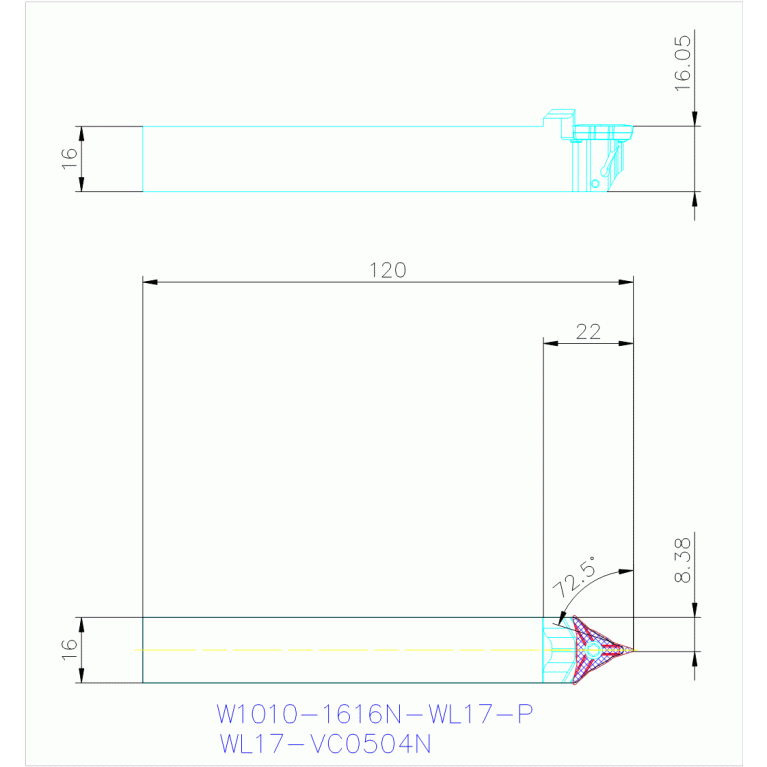

W1010-1616N-WL17-P
W1010-1616N-WL17-P
Артикул:
8341680
В наличии
Характеристики
BLDA Tool style code Position A
7
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
7 - With coolant supply (discharge), axial groove at shank
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT16160115
DIN CSW1
W-WL1703**3******
EPSR Insert included angle
35 Degree
FamilyProducts
Shank tool – Copy turning system W1010...-P
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
N - Neutral
HF Functional height
16 mm
ID Technical product number
8341680
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
VKT01A1616$$$$
ISO CSW1
WR$$WL1703**3******
ISYC Subclass
309-14 - System tool, neutral design for OD turning
LAMS Inclination angle
0 Degree
LF Functional length
120 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
1616
LOC-03 ISO
VKT01A1616$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160115
LPR Protruding length
120 mm
LTA Length tool assembly
120 mm
MIID Master insert identification
WL17-VC050804N-FM4
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
W1010-1616N-WL17-P
OAL Overall length
120 mm
THSC Tool holder shape code
G - straight shank design
WF Functional width
8.4 mm
Working process
DDA - External turning,DFA - External form turning
WT Weight of item
0.18 kg
