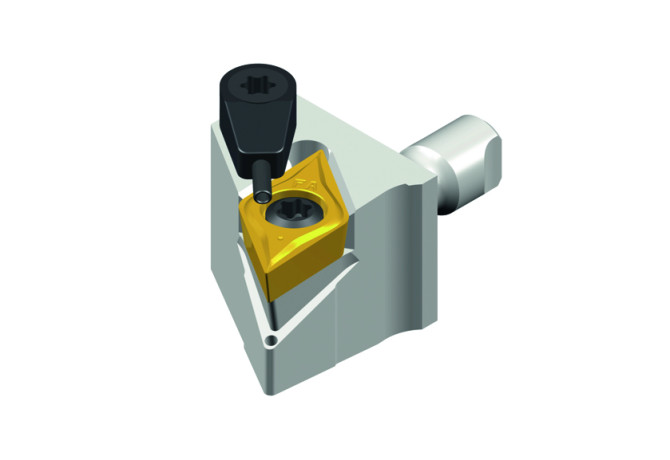

QE1 SDJCR 11-TB

QE1 SDJCR 11-TB QE1 SDJCR 11-TB QE1 SDJCR 11-TB QE1 SDJCR 11-TB

QE1 SDJCR 11-TB

Ingersoll
Артикул: 6218794
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
BLDA Tool style code Position A
3
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/15/2023
DIN
IL-K-1416
DIN CSW1
DC11T3023N
EPSR Insert included angle
55 Degree
FamilyProducts
QE1 SDJCR-TB
HAND Cutting direction
R - Right
HF Functional height
6 mm
ID Technical product number
6218794
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
20 mm
LH Head length
22 mm
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
IL-K-1416
MIID Master insert identification
DC 11T3
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
QE1 SDJCR 11-TB
OAL Overall length
34 mm
STDDES Standard designation
QE1 SDJCR 11-TB
WF Functional width
7 mm
Working process
DDA - External turning
WT Weight of item
0.06 kg
