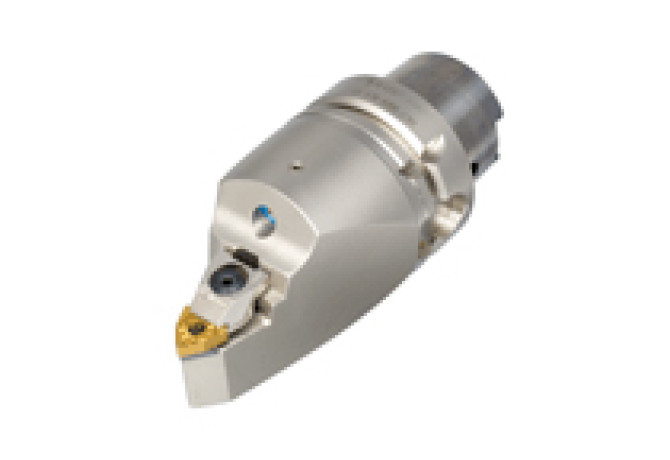

HSK A63WH-MUMNN-J12MW

Артикул: 3602387

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

5 - With coolant supply (discharge) in axial in direction, diagonal adjustable

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

HSK06300195

EPSR Insert included angle

90 Degree

FamilyProducts

MULTI-WEDGE Tools with HSK Exchangeable Shanks Carrying 80° Negative Rhombic or Trigon or Square Inserts

GAMF Rake angle radial

7 Degree

HF Functional height

0 mm

ID Technical product number

3602387

Interface codes

J6 / J61

ISO

HSK01C0630$$$$

ISYC Subclass

309-07 - System tool for external turning

KAPR Tool cutting edge angle

75 Degree

LF Functional length

110 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03 ISO

HSK01C0630$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300195

LTA Length tool assembly

110 mm

MIID Master insert identification

SNMG 120412-NR

Name Identifying order number

HSK A63WH-MUMNN-J12MW

OAL Overall length

142 mm

Working process

No working processes available

WT Weight of item

1.71 kg
