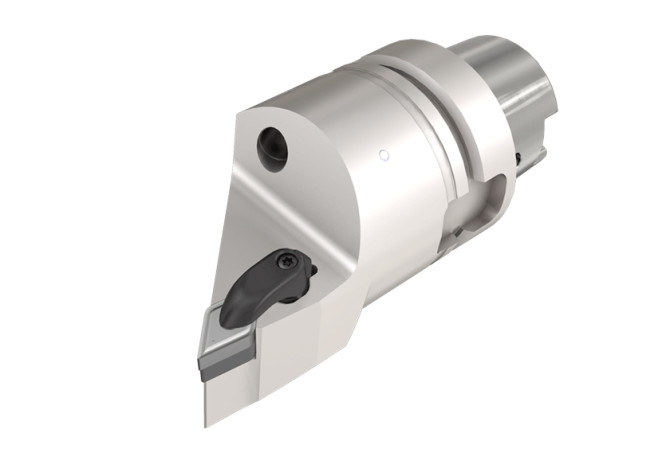

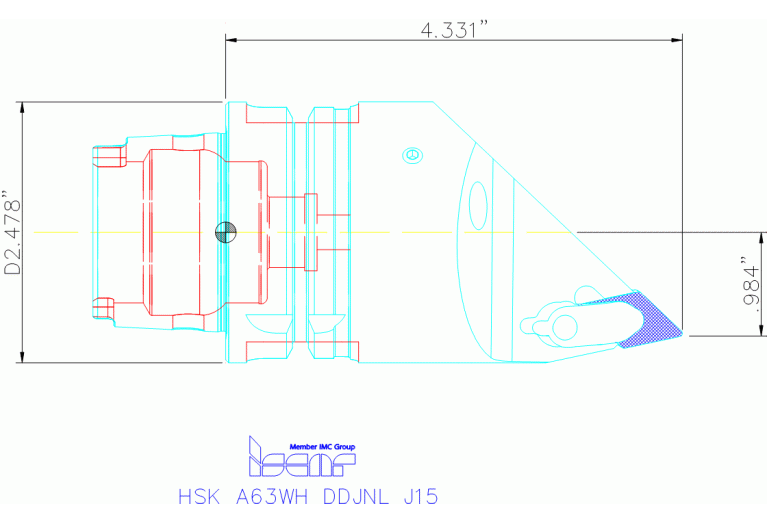

HSK A63WH-DDJNL-J15

Артикул: 3602389

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

5 - With coolant supply (discharge) in axial in direction, diagonal adjustable

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

HSK06300195

EPSR Insert included angle

55 Degree

FamilyProducts

R-Clamp Turning Tools with HSK Taper Shank Carrying Negative DNMG Inserts for 15° Mounting on Turn-Mill Machines

GAMF Rake angle radial

7.5 Degree

HAND Cutting direction

L - Left

HF Functional height

0 mm

ID Technical product number

3602389

Interface codes

J6 / J61

ISO

HSK01C0630$$$$

ISYC Subclass

309-07 - System tool for external turning

KAPR Tool cutting edge angle

93 Degree

LF Functional length

110 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03 ISO

HSK01C0630$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300195

LTA Length tool assembly

110 mm

MIID Master insert identification

DNMG 150408-GN

Name Identifying order number

HSK A63WH-DDJNL-J15

OAL Overall length

142 mm

WF Functional width

25 mm

Working process

No working processes available

WT Weight of item

1.65 kg
