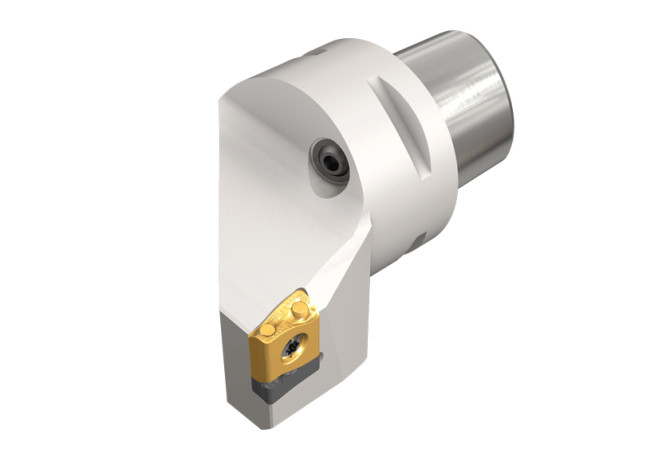

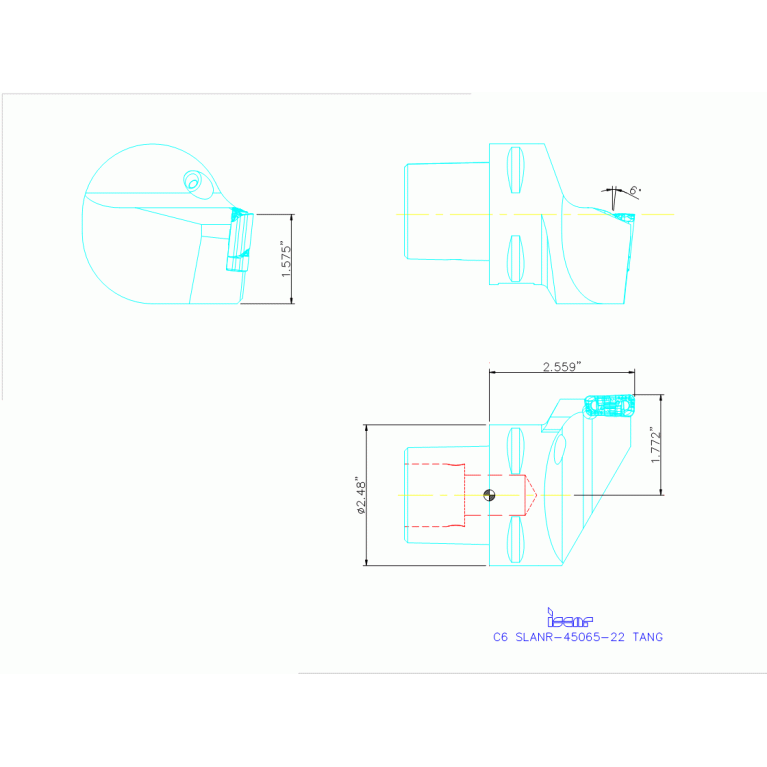

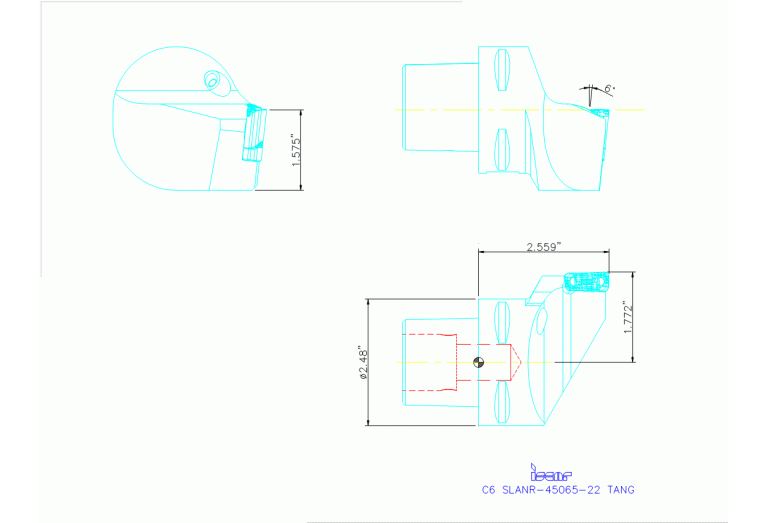

C6 SLANR-45065-22 TANG

Артикул: 3699145

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

5 - With coolant supply (discharge) in axial in direction, diagonal adjustable

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

CCS06300195

DIN CSW1

IS-104173055116723

EPSR Insert included angle

90 Degree

FamilyProducts

Tools with CAMFIX Shanks Carrying the LNMX-HT Tangentially Screw Clamped Inserts for High Production Cutting

HAND Cutting direction

R - Right

HF Functional height

0 mm

ID Technical product number

3699145

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CCS01C0630$$$$

ISO CSW1

IS$$104173055116723

ISYC Subclass

309-07 - System tool for external turning

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

22 mm

LF Functional length

65 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03 ISO

CCS01C0630$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300195

LTA Length tool assembly

65 mm

MIID Master insert identification

LNMX 221024R-HT

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

C6 SLANR-45065-22 TANG

OAL Overall length

103 mm

WF Functional width

45 mm

Working process

No working processes available

WT Weight of item

1.39 kg
