Главная Каталог продукции Toolunited 12 309-07 - System tool for external turning C5 SDNCN-00060-13-SL-JHP

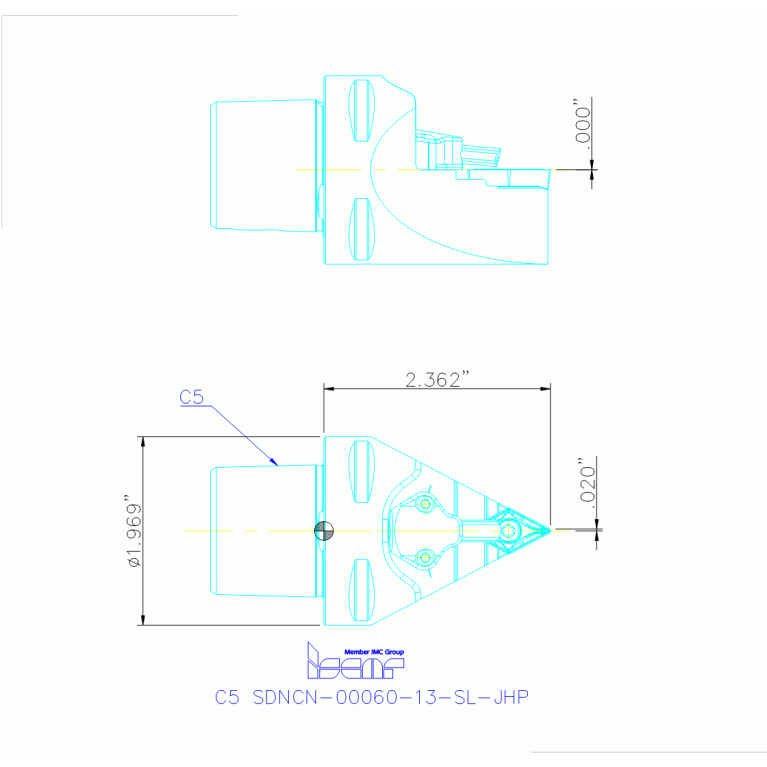

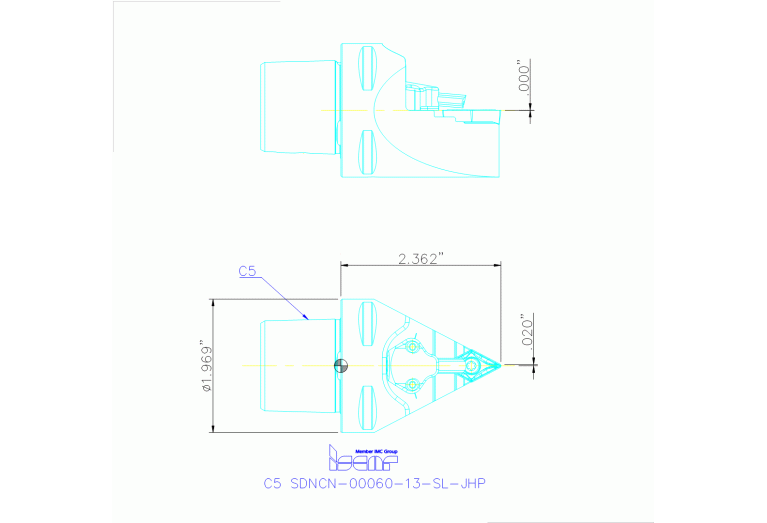

C5 SDNCN-00060-13-SL-JHP

Артикул: 3603575

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

5 - With coolant supply (discharge) in axial in direction, diagonal adjustable

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

CCS05000195

DIN CSW1

IS-493436362143714

EPSR Insert included angle

55 Degree

FamilyProducts

Screw Clamp Tools with CAMFIX Shanks and Channels for High-Pressure Coolant Carrying Positive 55° Rhombic Inserts

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

N - Neutral

HF Functional height

0 mm

ID Technical product number

3603575

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CCS01C0500$$$$

ISO CSW1

IS$$493436362143714

ISYC Subclass

309-07 - System tool for external turning

KAPR Tool cutting edge angle

62.5 Degree

LF Functional length

60 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 ISO

CCS01C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS05000195

LTA Length tool assembly

60 mm

MIID Master insert identification

DCMT 13T504-F3P-SL

Name Identifying order number

C5 SDNCN-00060-13-SL-JHP

OAL Overall length

90 mm

WF Functional width

0.5 mm

Working process

No working processes available

WT Weight of item

0.55 kg
