Главная Каталог продукции Toolunited 12 309-07 - System tool for external turning C5 PWLNL-25060-06X

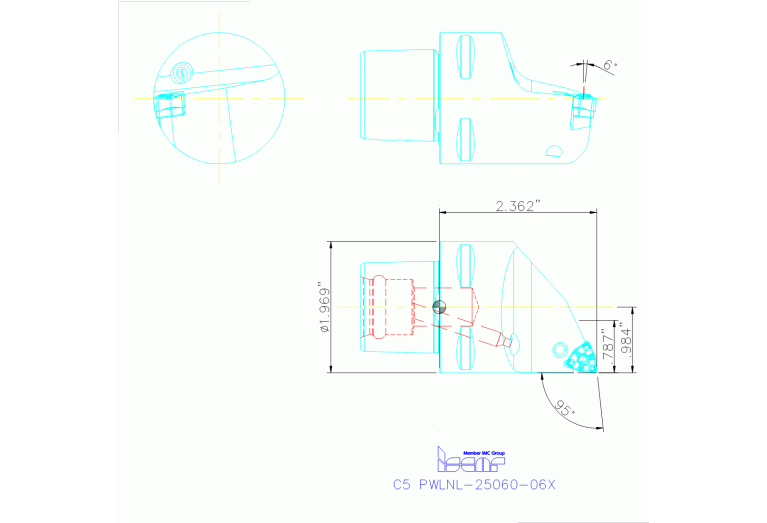

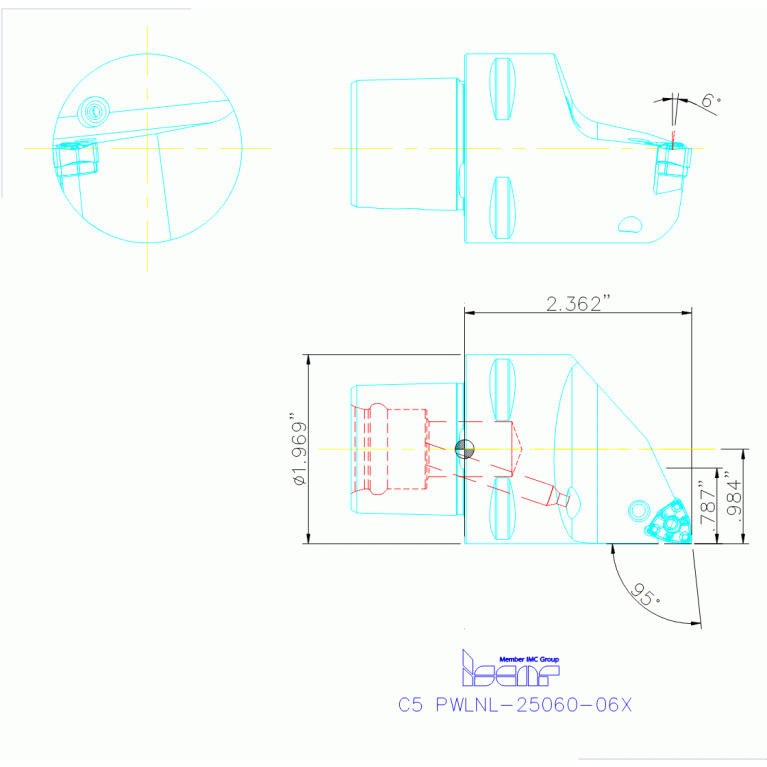

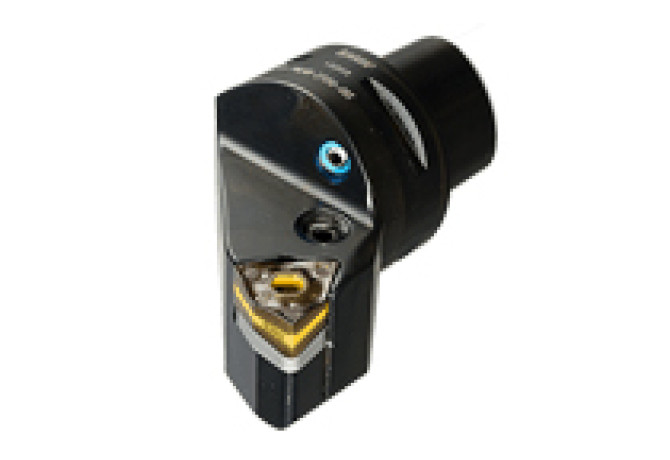

C5 PWLNL-25060-06X

Артикул: 3691450

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

5 - With coolant supply (discharge) in axial in direction, diagonal adjustable

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

CCS05000195

DIN CSW1

IS-311958202830888

EPSR Insert included angle

80 Degree

FamilyProducts

Lever Lock Tools with CAMFIX Shanks Carrying HELITURN LD WNMX or WNMG Inserts

GAMF Rake angle radial

6 Degree

HAND Cutting direction

L - Left

HF Functional height

0 mm

ID Technical product number

3691450

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CCS01C0500$$$$

ISO CSW1

IS$$311958202830888

ISYC Subclass

309-07 - System tool for external turning

KAPR Tool cutting edge angle

95 Degree

LF Functional length

60 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 ISO

CCS01C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS05000195

LTA Length tool assembly

60 mm

MIID Master insert identification

WNMX 060604-M3PW

Name Identifying order number

C5 PWLNL-25060-06X

OAL Overall length

90 mm

WF Functional width

25 mm

Working process

No working processes available

WT Weight of item

0.4 kg
