Главная Каталог продукции Toolunited 12 309-07 - System tool for external turning C3 PWLNR-22045-08X-JHP

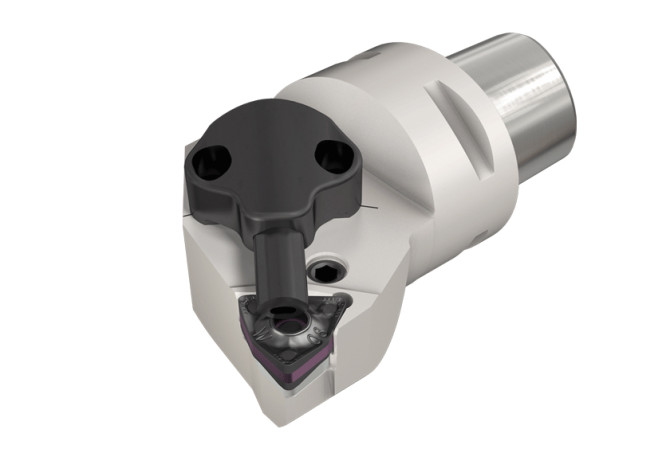

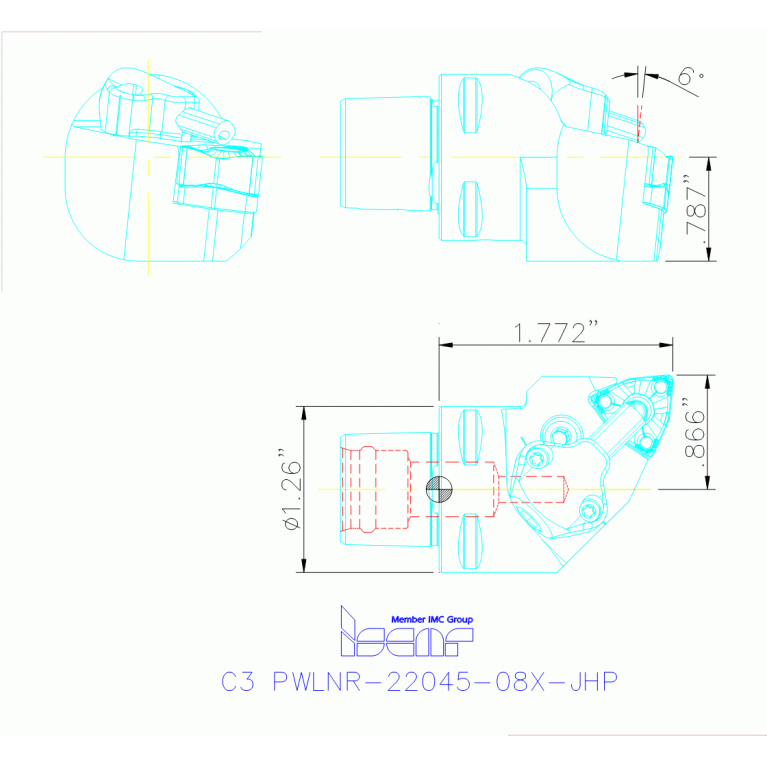

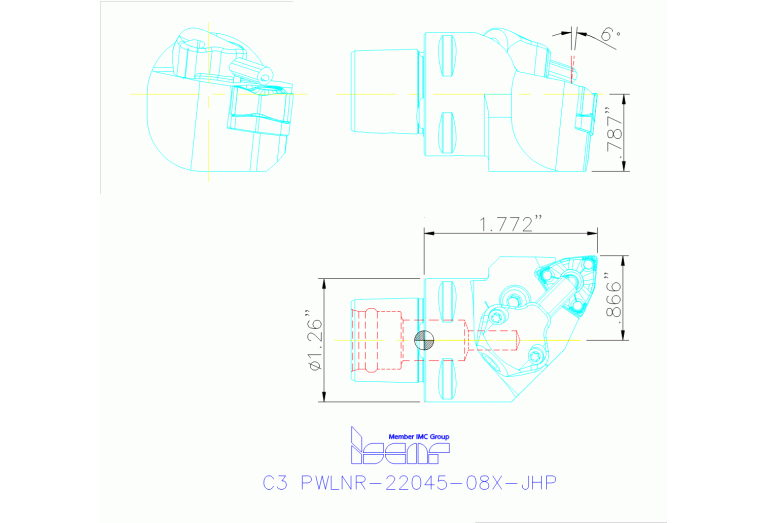

C3 PWLNR-22045-08X-JHP

Артикул: 3606775

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

5 - With coolant supply (discharge) in axial in direction, diagonal adjustable

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

CCS03200195

DIN CSW1

IS-498129398558133

EPSR Insert included angle

80 Degree

FamilyProducts

Lever Lock Tools with CAMFIX Shanks and Channels for High-Pressure Coolant, Carrying WNMX or WNMG Inserts

HAND Cutting direction

R - Right

HF Functional height

0 mm

ID Technical product number

3606775

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CCS01C0320$$$$

ISO CSW1

IS$$498129398558133

ISYC Subclass

309-07 - System tool for external turning

KAPR Tool cutting edge angle

95 Degree

LF Functional length

45 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 ISO

CCS01C0320$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS03200195

LTA Length tool assembly

45 mm

MIID Master insert identification

WNMX 080708-M4PW

Name Identifying order number

C3 PWLNR-22045-08X-JHP

WF Functional width

22 mm

Working process

No working processes available

WT Weight of item

0.5 kg
