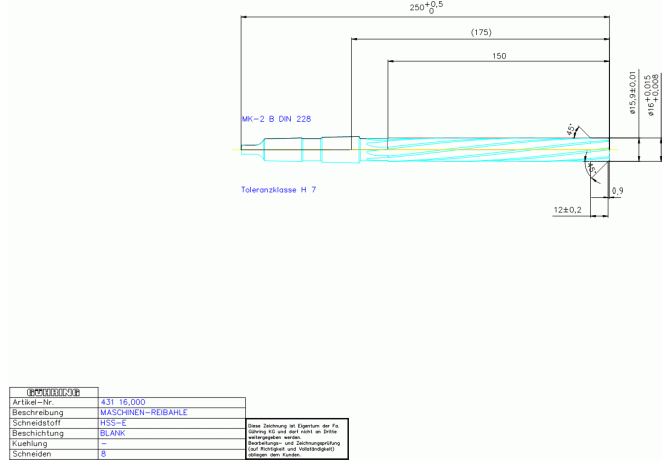

431 16.000
431 16.000
Артикул:
9004310160000
В наличии
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
150 mm
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
OHNE
COMPC Company code
GG - Gühring
CPDF Cutting pitch differential
1 - Unequal (e.g. 58-60-62 degree)
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
15.9 mm
DCN Cutting diameter last step minimum
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
MKG00202085
FamilyProducts
HSS-E MA,-REIBAHLE 16,000 WN 40RN MKFORM
FHA Flute helix angle
7 Degree
FHH Flute helix hand
L - Hand of helix left
GRD2ND Standard designation of the grade 2nd application
HSS-E
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9004310160000
Interface codes
J6 /
ISYC Subclass
311-03 - Solid stepped reamer
LF Functional length
174.1 mm
LOC-03 CCFMS Connection code form
20
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
MKG Morse taper
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0020
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
MKG00202085
LPR Protruding length
175 mm
LS Shank length
80 mm
LU Usable length
170 mm
Name Identifying order number
431 16.000
NOF Flute count
8
NOS Step count
2
OAL Overall length
250 mm
PLANG Plug angle
45
PLGL Plug length
0.9 mm
RESYC Reaming tool style code
2 - For though-holes
SDL Step diameter length
12 mm
STA Step included angle last step
90 Degree
STDNO Standard
WN 40
TCDH ISO tolerance class for drilling result
H7
Working process
REI - Cylindrical reaming,RPR - Reaming of profiles
WT Weight of item
0.297 kg
