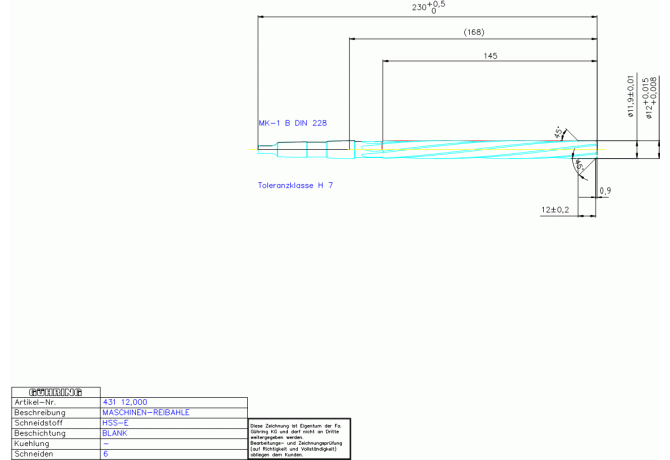

Главная Каталог продукции Toolunited 12 311-03 - Solid stepped reamer 431 12.000

431 12.000

Артикул: 9004310120000

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

145 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CPDF Cutting pitch differential

1 - Unequal (e.g. 58-60-62 degree)

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

11.9 mm

DCN Cutting diameter last step minimum

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

MKG00102085

FamilyProducts

HSS-E MA,-REIBAHLE 12,000 WN 40RN MKFORM

FHA Flute helix angle

7 Degree

FHH Flute helix hand

L - Hand of helix left

GRD2ND Standard designation of the grade 2nd application

HSS-E

GRDMFG Grade manufacturers designation

HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9004310120000

Interface codes

J6 /

ISYC Subclass

311-03 - Solid stepped reamer

LF Functional length

167.1 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0010

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00102085

LPR Protruding length

168 mm

LS Shank length

65.5 mm

LU Usable length

164.5 mm

Name Identifying order number

431 12.000

NOF Flute count

NOS Step count

OAL Overall length

230 mm

PLANG Plug angle

PLGL Plug length

0.9 mm

RESYC Reaming tool style code

2 - For though-holes

SDL Step diameter length

12 mm

STA Step included angle last step

90 Degree

STDNO Standard

WN 40

TCDH ISO tolerance class for drilling result

Working process

REI - Cylindrical reaming,RPR - Reaming of profiles

WT Weight of item

0.141 kg
