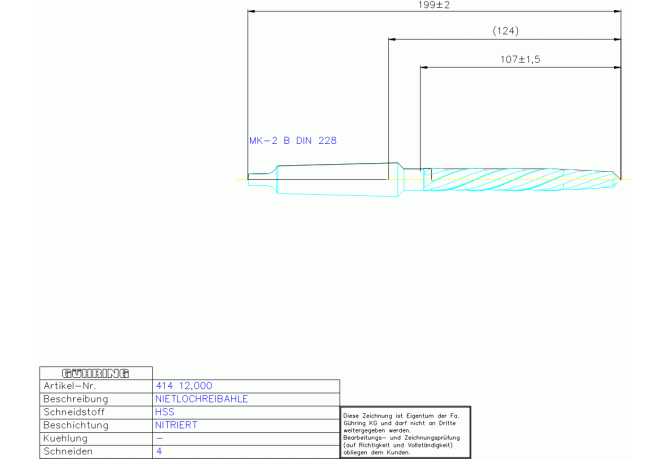

Главная Каталог продукции Toolunited 12 311-02 - Solid tapered reamer 414 12.000

414 12.000

Артикул: 9004140120000

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

105 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

NITRIERT

COMPC Company code

GG - Gühring

CPDF Cutting pitch differential

0 - Equal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

MKG00202085

FamilyProducts

HSS NIETLOCHREIBAHLE 12,000 DIN311 RN MK

FHA Flute helix angle

25 Degree

FHH Flute helix hand

L - Hand of helix left

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

HAND Cutting direction

R - Right

ID Technical product number

9004140120000

Interface codes

J6 /

ISYC Subclass

311-02 - Solid tapered reamer

LF Functional length

98 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0020

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00202085

LPR Protruding length

124 mm

LS Shank length

80 mm

Name Identifying order number

414 12.000

NOF Flute count

OAL Overall length

199 mm

RESYC Reaming tool style code

2 - For though-holes

SIG Point angle 1st step

5.725 Degree

STDNO Standard

DIN 311

TG Taper ratio

1:10

Working process

REK - Reaming, taper

WT Weight of item

0.182 kg
