411 16.000
411 16.000
Артикул:
9004110160000
В наличии
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
230 mm
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
OHNE
COMPC Company code
GG - Gühring
CPDF Cutting pitch differential
0 - Equal
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
MKG00202085
FamilyProducts
HSS-E KEGEL-REI 16,000 DIN2180RN 1:50 MK
FHA Flute helix angle
45 Degree
FHH Flute helix hand
L - Hand of helix left
GRD2ND Standard designation of the grade 2nd application
HSS-E
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9004110160000
Interface codes
J6 /
ISYC Subclass
311-02 - Solid tapered reamer
LDC Distance reference point PK
10 mm
LF Functional length
250 mm
LOC-03 CCFMS Connection code form
20
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
MKG Morse taper
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0020
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
MKG00202085
LPR Protruding length
260 mm
LS Shank length
80 mm
Name Identifying order number
411 16.000
NOF Flute count
3

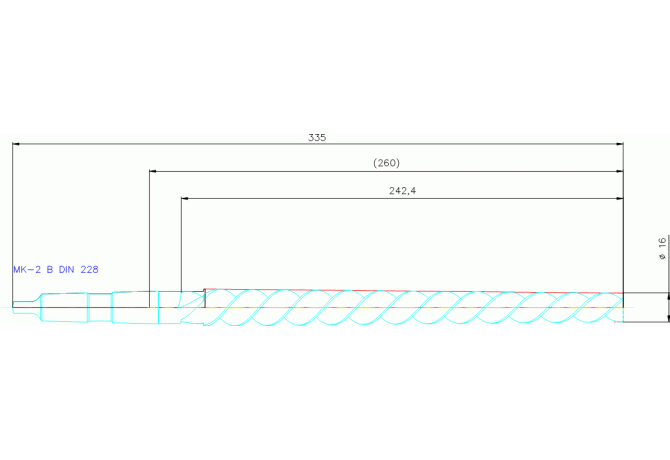

OAL Overall length
335 mm
RESYC Reaming tool style code
2 - For though-holes
SIG Point angle 1st step
1.146 Degree
STDNO Standard
DIN 2180
TG Taper ratio
1:50
Working process
REK - Reaming, taper
WT Weight of item
0.431 kg
