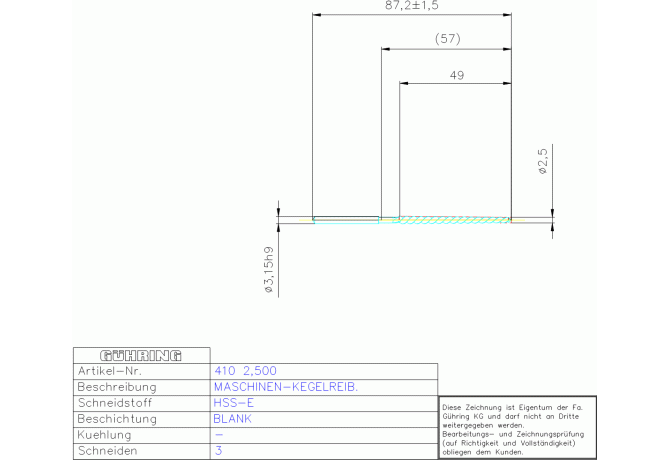

Главная Каталог продукции Toolunited 12 311-02 - Solid tapered reamer 410 2.500

410 2.500

Артикул: 9004100025000

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

48 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CPDF Cutting pitch differential

0 - Equal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

2.5 mm

DCONMSLD Shank diameter lower limit

-0.03 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00310105

FamilyProducts

HSS-E KEGEL-REIB, 2,500 DIN2179 RN 1:50

FHA Flute helix angle

45 Degree

FHH Flute helix hand

L - Hand of helix left

GRD2ND Standard designation of the grade 2nd application

HSS-E

GRDMFG Grade manufacturers designation

HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9004100025000

Interface codes

J6 /

ISYC Subclass

311-02 - Solid tapered reamer

LDC Distance reference point PK

5 mm

LF Functional length

81 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0031

LOC-03 DCONMS Diameter

3.15 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00310105

LPR Protruding length

57 mm

LS Shank length

29 mm

Name Identifying order number

410 2.500

NOF Flute count

OAL Overall length

86 mm

RESYC Reaming tool style code

2 - For though-holes

SIG Point angle 1st step

1.146 Degree

STDNO Standard

DIN 2179

TCDCONMS ISO-tolerance class shank diameter

TG Taper ratio

1:50

Working process

REK - Reaming, taper

WT Weight of item

0.007 kg
