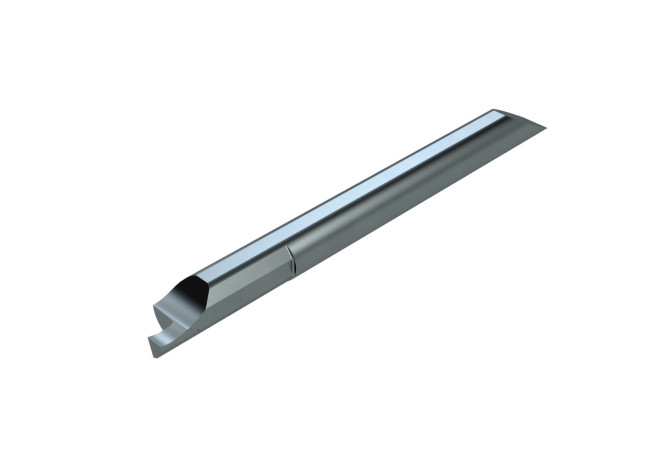

EZFGR080070-200 PR1225

Артикул: TKB03523

В наличии

В корзину

Описание

Характеристики

AXGSUP Axial groove support direction

CDX Cutting depth maximum

3 mm

COMPC Company code

KYO - Kyocera

DAXN Axial groove od min

8 mm

DCC Design configuration style code

H - Heavy metal, no construction features

Delivery state

LH - Stocked

DHD Drop head design

0 - Normal

DIN

ZYL00702205

FamilyProducts

Small Internal Machining EZ Bar

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

HF Functional height

3.4 mm

ID Technical product number

TKB03523

Interface codes

J6 /

ISYC Subclass

310-06 - Turning tool no 7 - grooving and cut-off design

KAPR Tool cutting edge angle

90 Degree

L Cutting edge length

2 mm

LF Functional length

64.2 mm

LH Head length

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0070

LOC-03 DCONMS Diameter

7 mm

LOC-03 H Shank height

6.8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00702205

Name Identifying order number

EZFGR080070-200 PR1225

OAL Overall length

64.2 mm

SX Shank cross section shape code

22 - Round shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

3.4 mm

Working process

No working processes available
