DTC-D40Y-TZXNN-1410-TB

DTC-D40Y-TZXNN-1410-TB

Ingersoll
Артикул: 6229439
В наличии
В корзину
Характеристики
BDRED Body diameter reduced
40 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/15/2023
DIN
IL-K-1382
DIN CSW1
IL-ZNMV1410 N

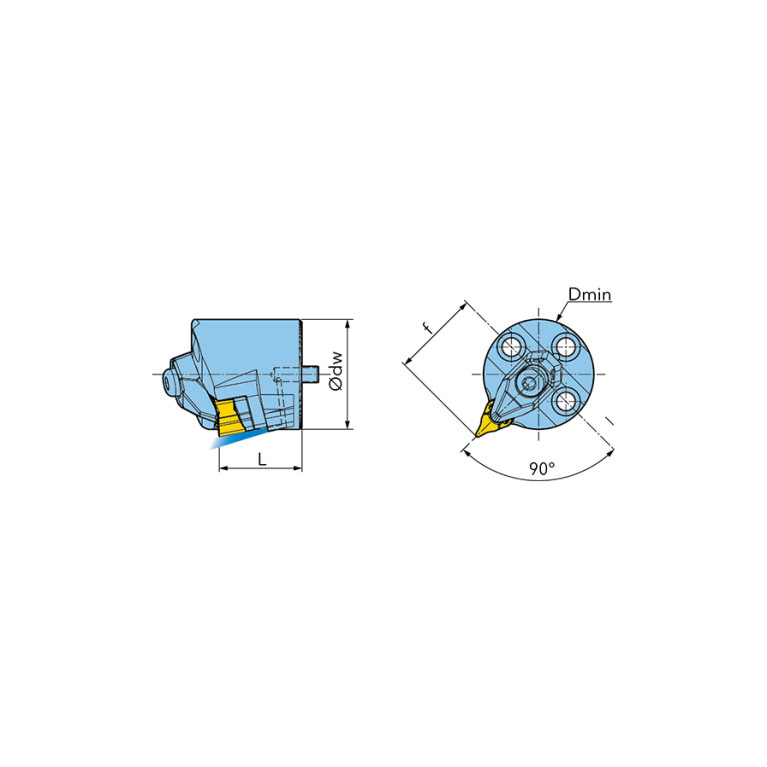

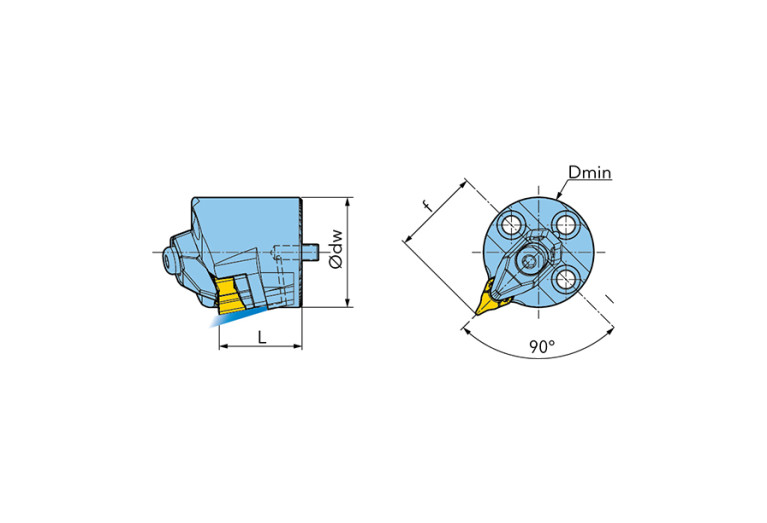

DMIN Minimum bore diameter
40 mm
FamilyProducts

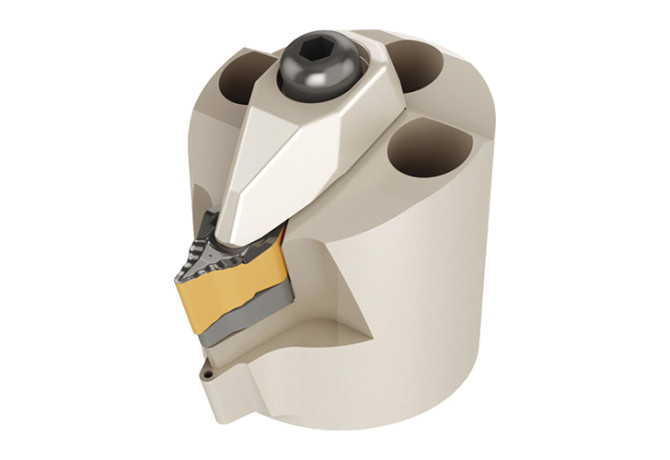

Interchangeable Turning Head for Y-axis for negative ZNMV inserts DTC-TZXNN-TB
HAND Cutting direction
N - Neutral
ID Technical product number
6229439
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-13 - System tool for pull back machining
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
IL-K-1382
LPR Protruding length
30 mm
MIID Master insert identification
ZNMV1410
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
DTC-D40Y-TZXNN-1410-TB
WF Functional width
32 mm
Working process
No working processes available
WT Weight of item
0.335 kg
