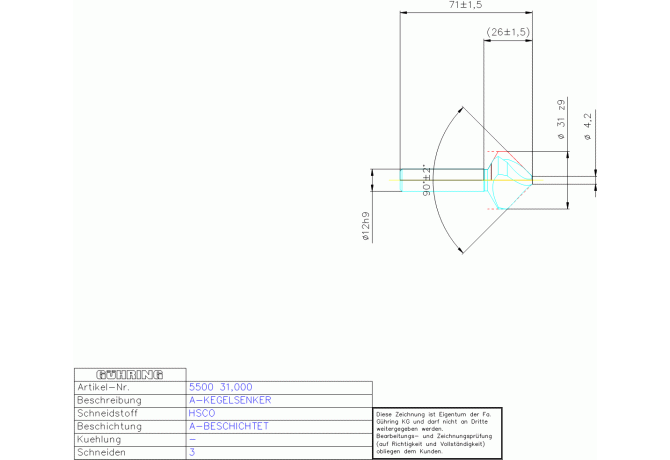

Главная Каталог продукции Toolunited 12 302-05 - Stepped countersinking tool / tapered countersinking tool 5500 31.000

5500 31.000

Артикул: 9055000310000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TIALN

COMPC Company code

GG - Gühring

CRCLDIN Tool application class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

4.2 mm

DCONMSLD Shank diameter lower limit

-0.043 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

31 mm

Delivery state valid from

12/1/2021

DIN

ZYL01200105

FamilyProducts

HSCO TIALN KSE 90° FORM C DIN 335 3S

FHH Flute helix hand

R - Hand of helix right

GEP Guide element property

0 - Without guide elements

GPP Guide pilot

0 - Without pilot

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9055000310000

Interface codes

J6 /

ISYC Subclass

302-05 - Stepped countersinking tool / tapered countersinking tool

LCF Length chip flute

22 mm

LF Functional length

71 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

LPR Protruding length

26 mm

LS Shank length

45 mm

LU Usable length

26 mm

Name Identifying order number

5500 31.000

NOF Flute count

OAL Overall length

71 mm

PHD Premachined hole diameter

5.2 mm

SIG Point angle 1st step

90 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN335

TCDCONMS ISO-tolerance class shank diameter

TL Taper length

13.4 mm

Working process

SPR - Profile counterboring

WT Weight of item

0.103 kg
